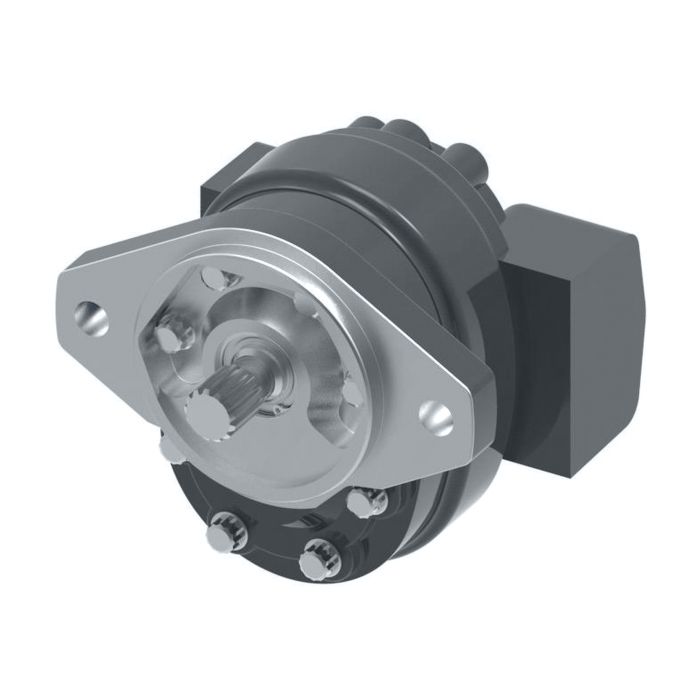

DANFOSS / EATON PUMP

Description & Features

Designed for demanding fixed-displacement hydraulic applications, the Danfoss Power Solutions Series L2 external gear pump delivers reliable performance across a wide range of industrial and mobile equipment segments. Reduced noise and vibration characteristics make it well-suited for environments where operating acoustics are a consideration, while improved volumetric and mechanical efficiency supports consistent output across duty cycles.

The Danfoss / Eaton Pump is field reversible, allowing pump direction to be changed without removing the unit from the circuit, a practical advantage during maintenance or system reconfiguration. Rated for use down to -20°C minimum working temperature, it is compatible with agricultural machinery, civil engineering equipment, material handling systems, metal forming presses, specialty construction equipment, and natural resource extraction applications.

SKU: 25501-LSJ

Supplier Part Number (MPN): 25501-LSJ

Specifications

Brand
Danfoss
Dimensions
6.47 in L x 7 in W x 5.13 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25501
Mounting Type
Flanged
nmfc
125820
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Rotation
Counterclockwise (Left-Hand)
Segment Code
C
Series
L2 Series
Shaft Pitch
16/32
Unit Type
Plain

Product Questions & Answers (1)

Question by: Billy H on Mar 24, 2026, 9:05 PM
Will this gear pump work okay on my farm equipment?
Answer by: Customer Support on Mar 26, 2026, 9:59 AM
For agricultural machinery, this Danfoss / Eaton pump should be a good fit. It's also compatible with civil engineering equipment, material handling systems, metal forming presses, specialty construction equipment, and natural resource extraction applications.
