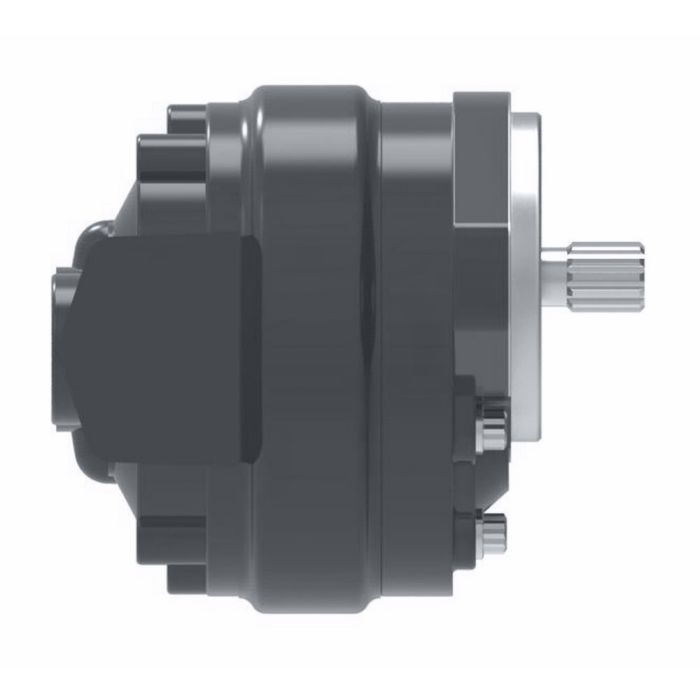

ABFAR02AA02000000000A0A

Description & Features

Eaton Char-Lynn ABFAR02AA02000000000A0A fixed displacement external gear pump used across many industries. Applications include agriculture, civil engineering, primary metals, material handling, speciality construction, metal forming, and natural resources.

Features of this gear pump include reduced noise and vibration, improved volumetric and mechanical efficiency, and field reversible pump direction. The minimum working temperature is -20.

SKU: 25502-RSB

Supplier Part Number (MPN): 25502-RSB

Specifications

Brand
Danfoss
Dimensions
6.47 in L x 7 in W x 5.27 in H
Gear Type
Single-Stage
Housing Color
Black
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25502
Mounting Type
Flanged
nmfc
125820
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Rotation
Clockwise (Right-Hand)
Segment Code
B
Series
L2 Series
Shaft Pitch
16/32
Unit Type
Plain

Product Questions & Answers (2)

Question by: Cindy H on Jun 21, 2025, 3:03 PM
got a piece of equipment that needs a quieter hydraulic pump. is this one built for that, or is it about the same as most gear pumps
Answer by: Customer Support on Jun 22, 2025, 7:42 PM
Reduced noise and vibration is one of the listed features on this Series L2 external gear pump, along with improved volumetric and mechanical efficiency. So if your goal is to cut down on noise while also getting better overall efficiency, that is exactly what this model is aimed at.
Question by: Frank P on Sep 25, 2025, 4:45 PM
Will this pump work okay for a log splitter build?
Answer by: Customer Support on Sep 26, 2025, 8:46 PM
Designed for applications like agricultural equipment and material handling, this gear pump could potentially be suitable for a log splitter, depending on the specific hydraulic requirements of your system.
