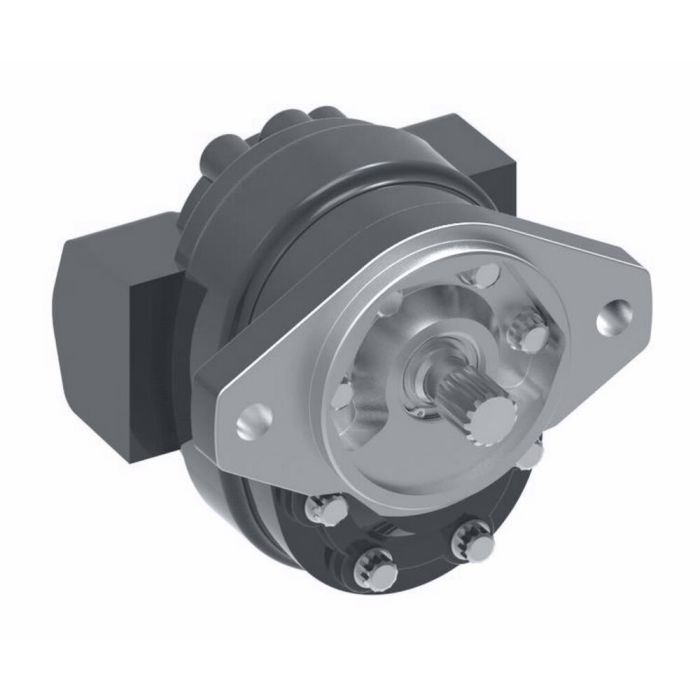

ABFAL03AA02000000000A0A

Description & Features

The ABFAL03AA02000000000A0A fixed displacement external gear pump is suitable for a range of applications, including agricultural equipment, civil engineering, primary metals processing, material handling, specialty construction, metal forming, and natural resource extraction.

This Danfoss Power Solutions Series L2 gear pump features reduced noise and vibration, along with improved volumetric and mechanical efficiency. Pump direction is field reversible. It has a minimum working temperature of -20.

SKU: 25503-LSB

Supplier Part Number (MPN): 25503-LSB

Specifications

Brand
Danfoss
Dimensions
6.47 in L x 7 in W x 5.41 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25503
Mounting Type
Flanged
nmfc
125820
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Rotation
Counterclockwise (Left-Hand)
Segment Code
B
Series
L2 Series
Shaft Pitch
16/32
Unit Type
Plain

Product Questions & Answers (1)

Question by: Kirk B on Sep 4, 2025, 2:25 PM
Wondering what kind of equipment this pump usually goes on?
Answer by: Customer Support on Sep 5, 2025, 3:24 PM
Common applications include agricultural equipment, civil engineering, primary metals processing, material handling, specialty construction, metal forming, and natural resource extraction.
