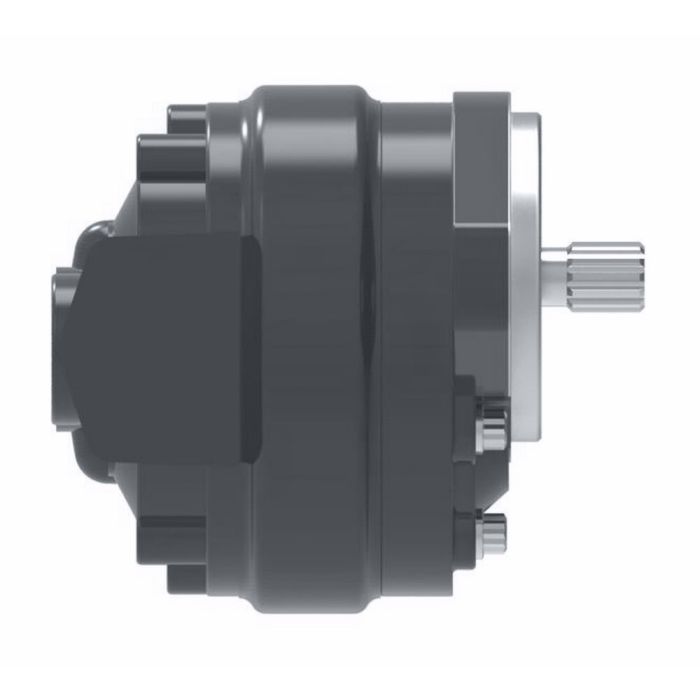

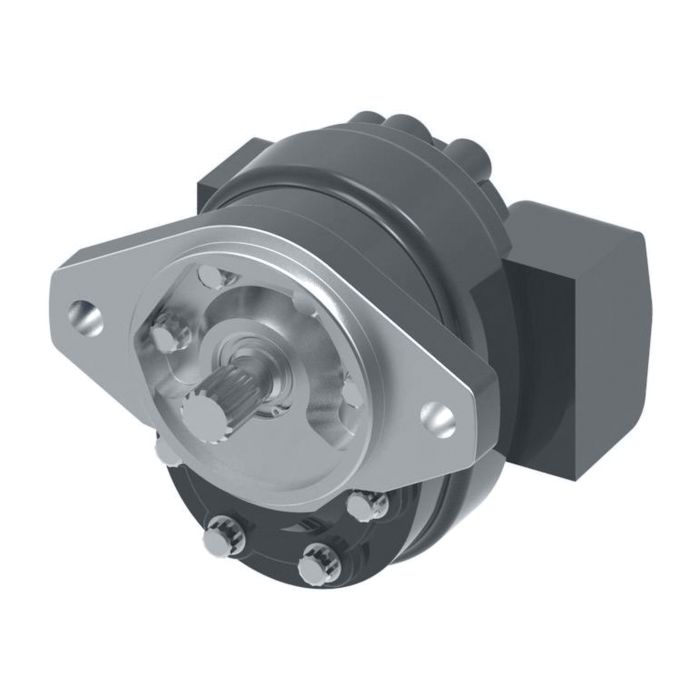

DANFOSS / EATON ABFAR03AA16000000000A0A

Ask A Question

Description & Features

The DANFOSS / EATON ABFAR03AA16000000000A0A gear pump, from the Series L2 line, is suitable for a range of demanding applications, including agricultural equipment, civil engineering, metal forming, primary metals production, material handling, specialty construction and natural resource management.

This hydraulic fixed displacement external gear pump offers field reversible pump direction and is engineered to deliver improved volumetric and mechanical efficiency with reduced noise and vibration. It is designed to operate in minimum working temperatures as low as -20 degrees.

SKU: 25503-RAN

Supplier Part Number (MPN): 25503-RAN

Specifications

Brand
Danfoss
Design Code
A
Dimensions
6.47 in L x 7 in W x 5.41 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Identification
Standard
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25503
Mounting Type
Flanged
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring
Rotation
Clockwise (Right-Hand)
Series
L2 Series
Shaft Type
13 Tooth Splined

Product Questions & Answers (2)

Question by: Dale E on Nov 20, 2025, 8:01 PM
This pump rated to run in cold weather? Got equipment that sits outside through the winter and needs to fire up without a fight.
Answer by: Customer Support on Nov 22, 2025, 4:33 PM
Cold startup is covered down to negative 20 degrees, so winter conditions that most equipment sees in open storage won't push it past its rated lower limit. That minimum working temperature is built into the spec, not an estimate.
Question by: Roy A on Aug 22, 2025, 6:40 PM
So this can run on farm equipment alright?
Answer by: Customer Support on Aug 24, 2025, 7:03 AM
Yes, this gear pump is suitable for agricultural equipment, as well as civil engineering, metal forming, primary metals production, material handling, specialty construction and natural resource management applications.
