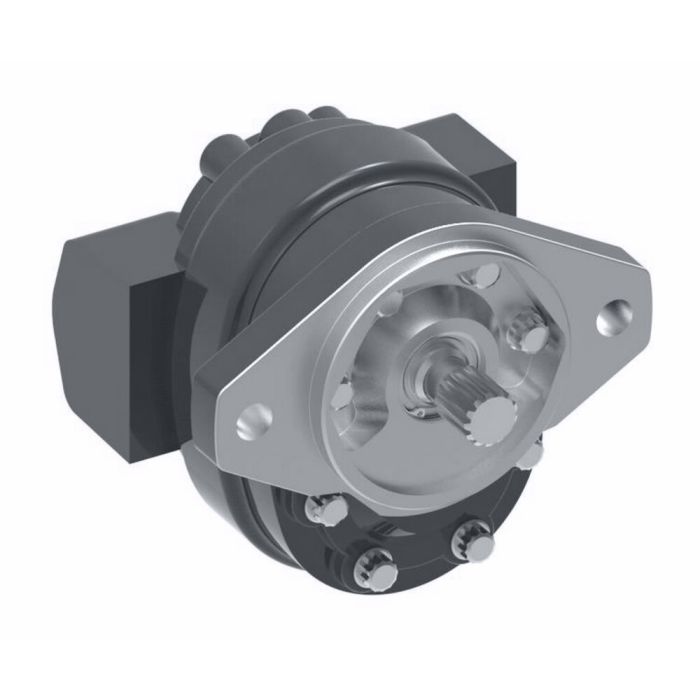

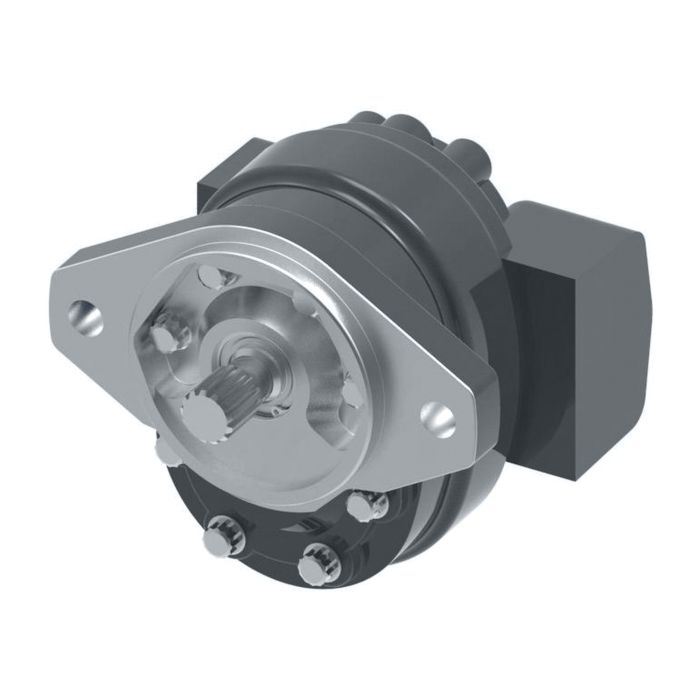

main product photo

Danfoss / Eaton-Gear Pump ASSY

Ask A Question

Description & Features

Designed for demanding industrial and mobile hydraulic applications, the Danfoss / Eaton-Gear Pump ASSY is a fixed-displacement external gear pump built to the Series L2 standard. It is suited for a broad range of industries, including agricultural equipment, civil engineering, material handling, metal forming, and specialty construction.

The pump features reduced noise and vibration characteristics alongside improved volumetric and mechanical efficiency. Field-reversible pump direction adds flexibility during installation and maintenance, allowing rotation to be adjusted without replacing the unit. A minimum working temperature rating of -20° supports reliable performance in cold-weather environments.

SKU: 25504-LAL

Supplier Part Number (MPN): 25504-LAL

Specifications

Brand
Danfoss
Dimensions
6.47 in L x 7 in W x 5.54 in H
Gear Type
Single-Stage
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25504
Mounting Type
Flanged
nmfc
125820
Outlet Size
1-5/16-12
Outlet Type
SAE O-ring
Rotation
Counterclockwise (Left-Hand)
Segment Code
C
Series
L2 Series
Shaft Pitch
16/32
Unit Type
Plain

Product Questions & Answers (1)

Question by: Debbie T on Aug 30, 2025, 4:19 PM
pump direction reversible in the field, or do you have to pull it and send it back out?
Answer by: Customer Support on Sep 1, 2025, 3:59 PM
Field-reversible rotation is built into this unit. You can swap the pump direction on-site without pulling it from service and sending it off. That's a real time-saver when you're dealing with installation changes or swapping out equipment mid-job.
