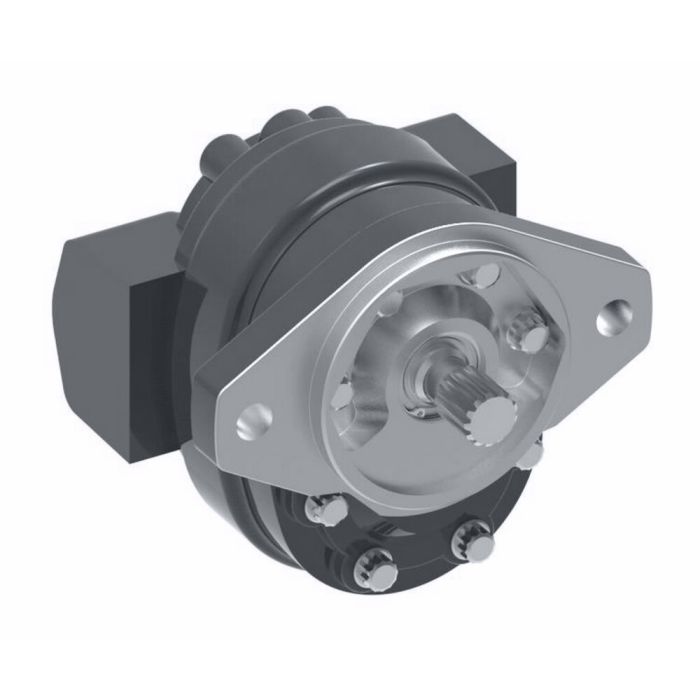

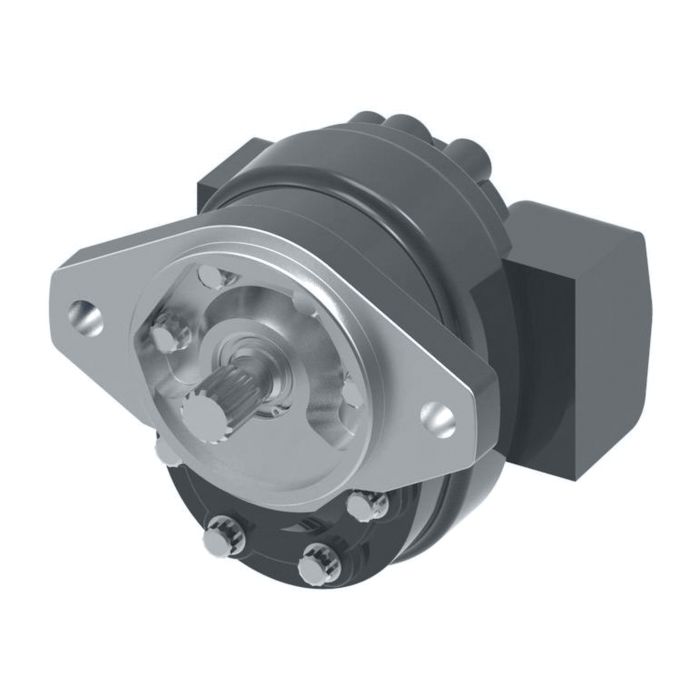

Danfoss / Eaton Gear Pump

Ask A Question

Description & Features

Designed for demanding fixed-displacement applications, the Danfoss / Eaton Gear Pump is a field-reversible external gear pump built for reliable performance across a broad range of industrial and mobile sectors. Reduced noise and vibration characteristics make it well-suited to environments where operational refinement is a priority alongside output consistency.

Volumetric and mechanical efficiency are both addressed in the design, supported by an input drive lubrication orifice in the frontplate, a practical detail that contributes to long-term durability. A minimum working temperature rating of -20°C supports deployment in cold-climate conditions. Typical application areas include agricultural equipment, civil engineering machinery, material handling systems, metal forming, primary metals processing, specialty construction, and natural resources industries.

SKU: 25506-LSH

Supplier Part Number (MPN): 25506-LSH

Specifications

Brand
Danfoss
Design Code
A
Dimensions
6.47 in L x 7 in W x 5.8 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Identification
Standard
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25506
Mounting Type
Flanged
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Port Location
Rear
Rotation
Counterclockwise (Left-Hand)
Series
L2 Series
Shaft Type
13 Tooth Splined

Product Questions & Answers (2)

Question by: Pete B on Nov 14, 2025, 1:17 PM
Wondering if this thing can handle cold weather, I'm up in Minnesota.
Answer by: Customer Support on Nov 15, 2025, 6:22 PM
This Danfoss/Eaton gear pump is rated for a minimum working temperature of -20°C, so it should hold up just fine in colder climates.
Question by: Dustin H on Mar 11, 2026, 9:20 AM
pump says it's field reversible - does that mean I can swap rotation direction myself without sending it out somewhere?
Answer by: Customer Support on Mar 13, 2026, 6:36 AM
field reversible means you can change the rotation direction on-site without shipping it off for rework. That's a real time-saver when you're swapping it into a circuit that runs the opposite direction from what the previous pump did. No need for a shop to touch it.
