ABFAR07AB02000000000A0A

Description & Features

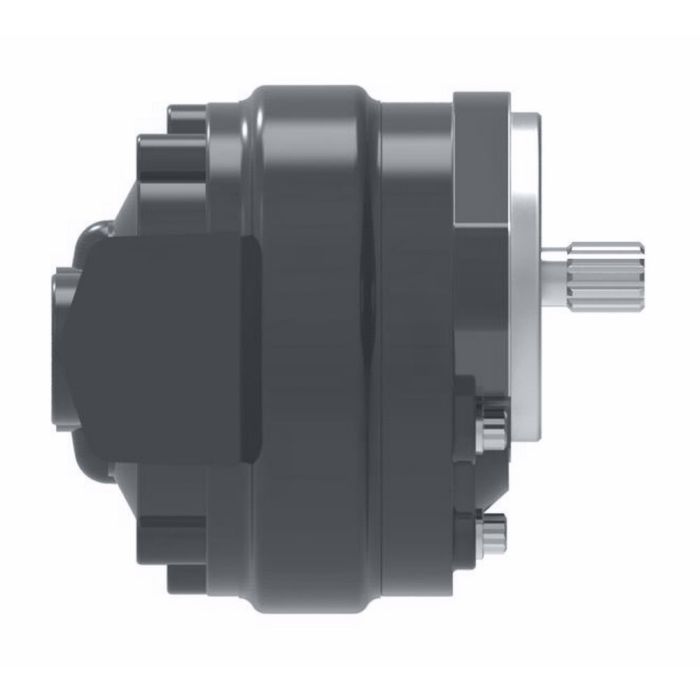

The Eaton Char-Lynn ABFAR07AB02000000000A0A fixed displacement external gear pump is suitable for a variety of applications, including agricultural, civil engineering, primary metals, material handling, speciality construction, metal forming, and natural resources. This hydraulic pump offers field reversible pump direction.

This ABFAR07AB02000000000A0A gear pump provides reduced noise and vibration, as well as improved volumetric and mechanical efficiency. It has a minimum working temperature of -20 degrees.

SKU: 25507-RSD

Supplier Part Number (MPN): 25507-RSD

Specifications

Brand
Danfoss
Dimensions
6.47 in L x 7 in W x 5.95 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25507
Mounting Type
Flanged
nmfc
125820
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Rotation
Clockwise (Right-Hand)
Segment Code
C
Series
L2 Series
Unit Type
Plain

Product Questions & Answers (1)

Question by: Curt P on Apr 29, 2025, 8:27 PM
pump says it's field reversible, how hard is that to actually do out in the field, or is it more of a shop job?
Answer by: Customer Support on May 1, 2025, 6:20 AM
Reversing the rotation on this pump is meant to be done without specialized equipment, so a competent mechanic can handle it without pulling it back to a shop. The Series L2 is built with that flexibility in mind, which makes it practical for situations where you need to reconfigure the flow direction on-site rather than waiting on a rebuild.
