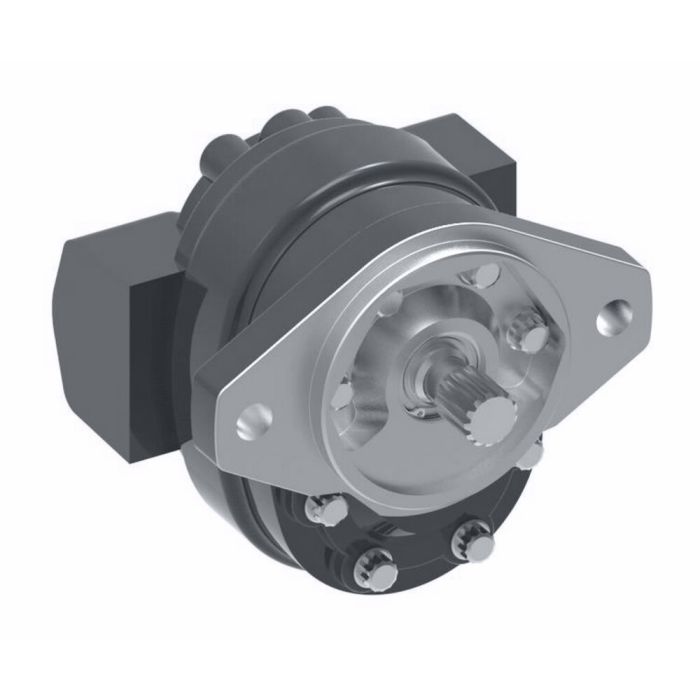

ABFAL08AB01000000000A0A

Description & Features

The Eaton Char-Lynn ABFAL08AB01000000000A0A fixed displacement external gear pump is suitable for applications such as agriculture, civil engineering, primary metals, material handling, speciality construction, metal forming, and natural resources. This gear pump offers reduced noise and vibration with improved volumetric and mechanical efficiency. It also features field reversible pump direction.

The ABFAL08AB01000000000A0A hydraulic pump has a minimum working temperature of -20.

SKU: 25508-LSC

Supplier Part Number (MPN): 25508-LSC

Specifications

Brand
Danfoss
Design Code
A
Dimensions
6.47 in L x 7 in W x 6.09 in H
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Identification
Standard
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25508
Mounting Type
Flanged
Outlet Size
1-1/16-12
Outlet Type
SAE O-ring
Rotation
Counterclockwise (Left-Hand)
Series
L2 Series
Shaft Type
Straight Keyed

Product Questions & Answers (3)

Question by: Rusty S on Feb 22, 2026, 7:14 PM
Will this gear pump work for metal forming applications?
Answer by: Customer Support on Feb 24, 2026, 10:26 AM
It's definitely suitable. This Eaton Char-Lynn L2 gear pump is listed for metal forming, along with agricultural, civil engineering, primary metals, material handling, specialty construction, and natural resource applications.
Question by: Todd M on Feb 27, 2026, 9:27 PM
got a system that needs a quieter gear pump, is this one built to cut down on noise and vibration?
Answer by: Customer Support on Mar 1, 2026, 8:43 AM
Reduced noise and vibration are called out as a feature on this Series L2 external gear pump, so it is a good fit when you are trying to calm down a loud hydraulic setup.
Question by: Bonnie S on Sep 2, 2025, 7:30 PM
pump says it's field reversible, does that mean I can swap the rotation direction myself without sending it back or getting a whole new unit?
Answer by: Customer Support on Sep 4, 2025, 2:51 PM
the rotation direction on this gear pump can be changed out in the field, so you're not locked into one configuration from the factory. That's handy when you're retrofitting it into an existing system where the drive shaft spins a particular way, or if your setup changes down the road. No need to return it or order a separate model for the opposite rotation.
