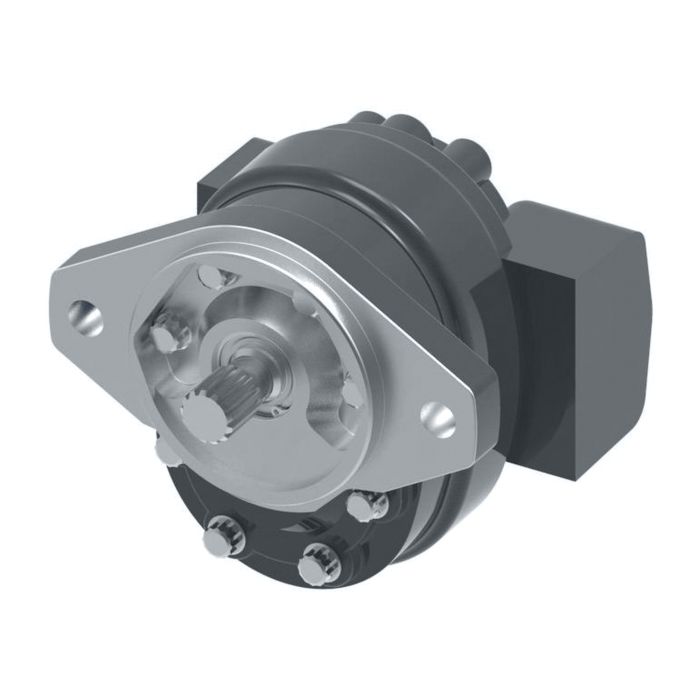

Danfoss / Eaton-L2 Gear Pump (Flow DIV)(W/O Relief

Ask A Question

Description & Features

Designed for demanding fixed-displacement hydraulic circuits, the Danfoss / Eaton-L2 Gear Pump (Flow Div)(W/O Relief) is a external gear pump suited to a broad range of industrial and mobile applications. Its field-reversible pump direction adds installation flexibility, while the design delivers reduced noise and vibration alongside improved volumetric and mechanical efficiency.

This pump is well-matched to agricultural equipment, civil engineering machinery, material handling systems, metal forming, primary metals processing, specialty construction, and natural resources applications. A minimum working temperature rating of -20° supports use in cold-weather environments. Supplied by Danfoss Power Solutions, this unit ships without a relief valve, making it appropriate for circuits where relief protection is handled externally.

SKU: 25535-LAJ

Supplier Part Number (MPN): 25535-LAJ

Specifications

Brand
Danfoss
Design Code
A
Gear Type
Single-Stage
Housing Color
Red
Housing Finish
Primer
Housing Material
Aluminum
Inlet Size
1-5/8-12
Inlet Type
SAE O-ring
Model
25535
Mounting Type
Flanged
Outlet Size
1-7/8-14
Outlet Type
SAE O-ring
Port Location
Side
Priority Flow Divider Setting
103.40
Rotation
Counterclockwise (Left-Hand)
Series
L2 Series
Shaft Type
Keyed
Taper Size
0.125:1 (1:8 Taper)
Thread Size
5/8-18

Product Questions & Answers (2)

Question by: Troy W on Aug 11, 2025, 8:53 PM
What kind of equipment is this L2 pump typically used on?
Answer by: Customer Support on Aug 13, 2025, 9:08 AM
This Danfoss/Eaton gear pump is well-suited for agricultural equipment, civil engineering machinery, material handling systems, metal forming, primary metals processing, specialty construction, and natural resources applications.
Question by: Tammy J on Mar 15, 2026, 5:12 PM
pump says it ships without a relief valve -- does that mean I gotta have one already set up somewhere else in the circuit before running this thing?
Answer by: Customer Support on Mar 17, 2026, 6:38 AM
Correct. Without a built-in relief valve, overpressure protection has to come from somewhere else in the system. That's pretty common in setups where a single relief valve is already handling multiple components, or where the circuit was already engineered with external protection in mind. As long as your circuit has that covered upstream or downstream, this pump fits right in without any issue.
