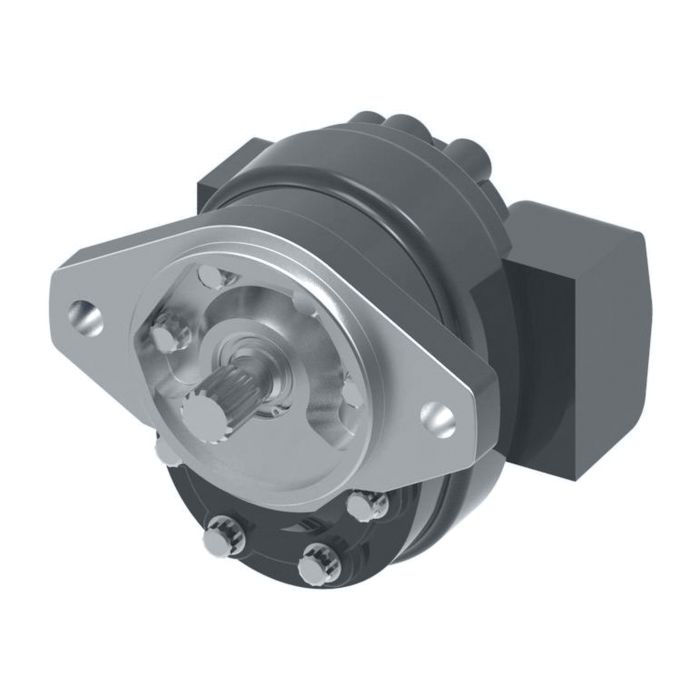

Designed for demanding industrial and agricultural environments, the Danfoss / Eaton-L2 Gear Pump MULTI Unit is a fixed displacement external gear pump built to deliver reliable hydraulic power across a wide range of mobile and stationary applications. Suitable for use in civil engineering, material handling, metal forming, natural resources, and specialty construction equipment, it covers a broad application footprint within a compact, field-serviceable package.
The pump features reduced noise and vibration alongside improved volumetric and mechanical efficiency. Pump direction is field reversible, supporting flexible installation configurations. The unit uses a 2-bolt SAE flange series 82-2 mounting with an 11-tooth output shaft and a 17.5 minimum full spline. Accepting a 31.8 mating shaft extension requires a spacer and coupler. Minimum working temperature is -20°C.
SKU: 25580-RAY
Supplier Part Number (MPN): 25580-RAY
|
Alternate Part Numbers
MINO-00900X23019
|
Application
Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural Resources
|
Brand
Danfoss – Hydraulics
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
Features
Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction
|
ICC
Hyd Fixed Dis External Gear Pump
|
Language
English
|
Minimum Working Temperature
-20
|
Product Width
7
|
Special Features
2 bolt SAE Flange series 82-2 with 11 tooth output shaft, 17.5 minimum full spline, requires spacer and coupler to accept 31.8, mating shaft extension
|
Supplier Part Number
25580-RAY
|
Product Weight
21.00 lbs
|
