Description & Features

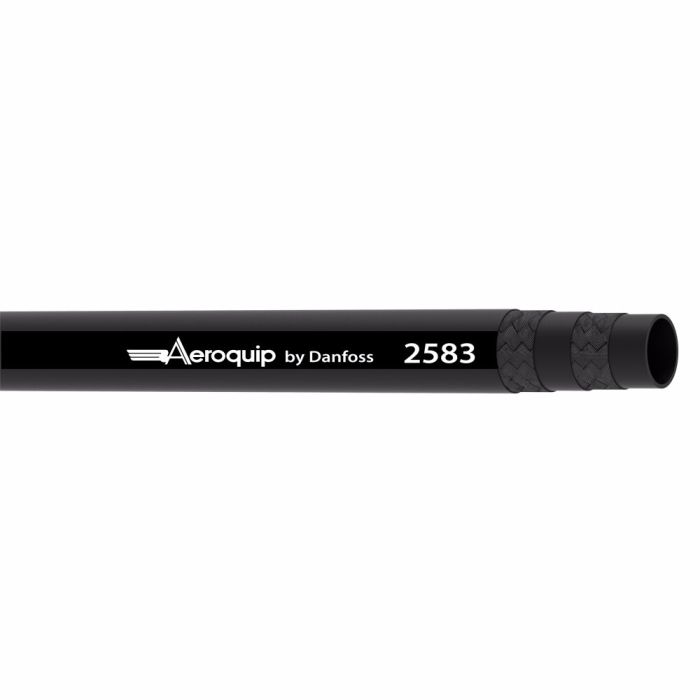

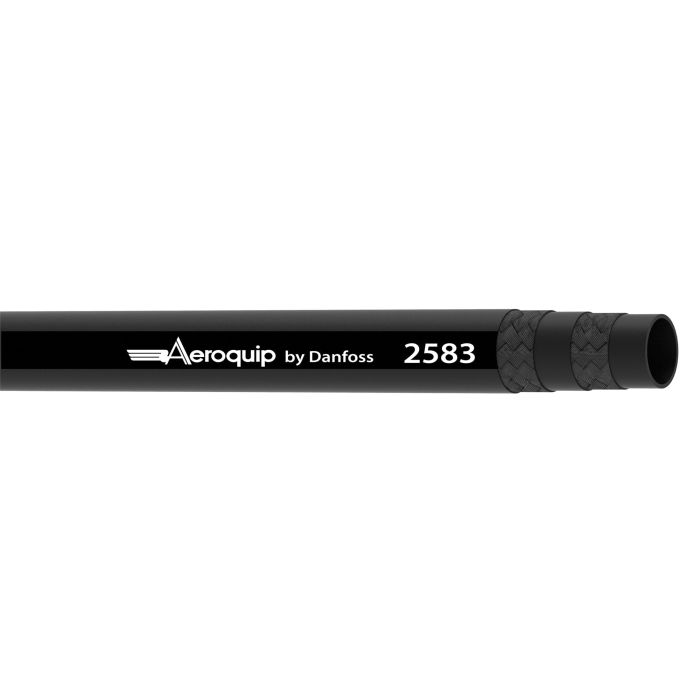

The Aeroquip 2583 Series Rubber Hydraulic Braided Hose is engineered for durability in demanding environments. With a 2-ply braided construction, this hose is designed to handle gasoline, crude fuel, lubricating oils, air, and water, ensuring reliable performance across diverse industrial applications. Made with chloroprene rubber, the cover material offers standard abrasion resistance and is MSHA approved, making it suitable for rugged use.

Featuring a conductive design, the hose is compliant with SAE 100R3 and EN854 Type R3 standards, ensuring compatibility with industry requirements. Its robust construction supports high-pressure systems, and the polyester reinforcement material enhances its strength and flexibility. With a minimum bend radius of 6 inches and a temperature range from -40°F, the Aeroquip 2583 Series hose is engineered to extend hose assembly life. Qualified with Crimp OTC hose fittings, it offers a reliable connection solution.

SKU: 2583-12

Supplier Part Number (MPN): 2583-12

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F51244	Application Gasoline, crude fuel and lubricating oils, air and water.	Certifications SAE 100R3\|EN854 Type R3	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 6	Minimum Working Temperature -40	Product Width 1.25	Qualified Hose Fittings Crimp OTC	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number 2583-12	Tube Material Synthetic Rubber	Product Weight 0.60 lbs

Product Questions & Answers (1)

Question by: Neil S on Dec 11, 2025, 3:54 PM

Will this hose stand up to regular use with gasoline and oil?

Answer by: Customer Support on Dec 13, 2025, 3:10 PM

This Aeroquip hose is definitely made for that. It's designed to handle gasoline, crude fuel, and lubricating oils, so you shouldn't have any problems there.
