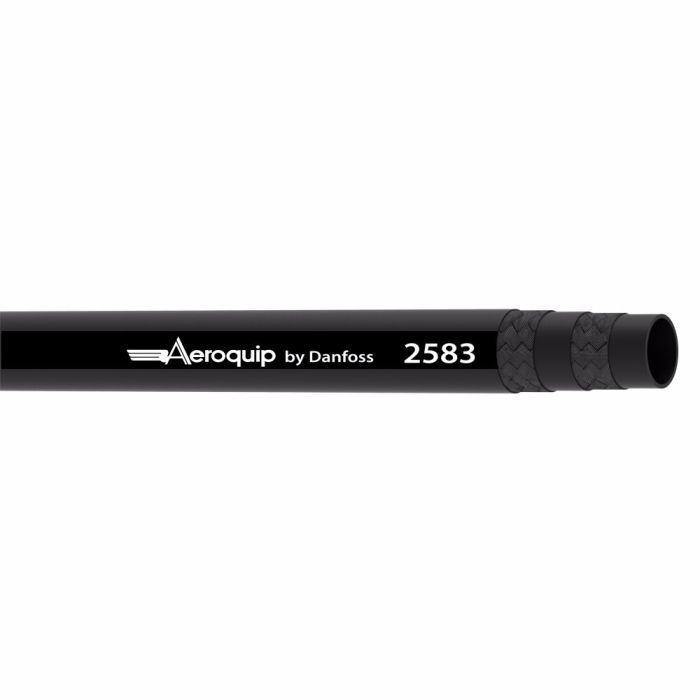

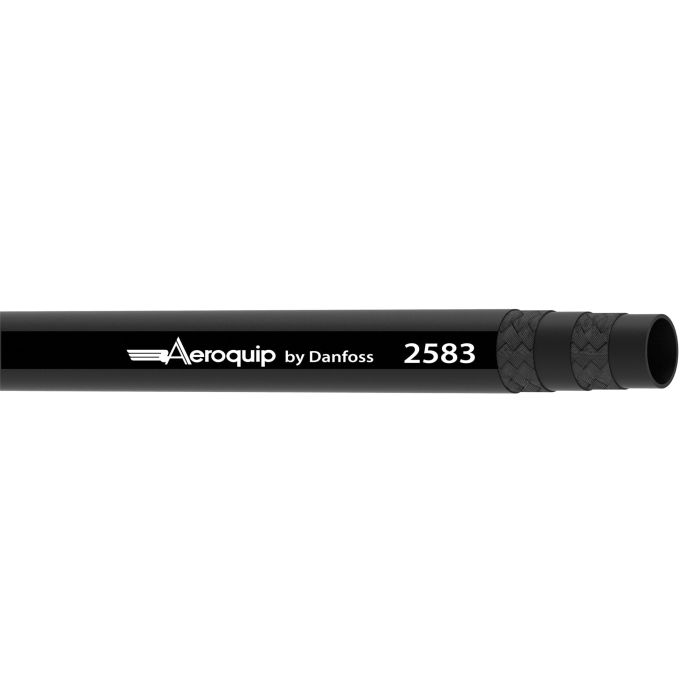

Aeroquip Hose And Coil - Code

Description & Features

Designed for durability in demanding environments, the Aeroquip Hose And Coil - Code is constructed with a chloroprene rubber cover and synthetic rubber tube. It is reinforced with a 2-ply braid and suitable for use with gasoline, crude fuel, lubricating oils, air, and water.

This hose meets SAE 100R3 and EN854 Type R3 certifications and is MSHA approved. It has a -20 dash size, a 10-inch minimum bend radius and withstands minimum working temperatures of -40 degrees.

SKU: 2583-20

Supplier Part Number (MPN): 2583-20

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F51246	Application Gasoline, crude fuel and lubricating oils, air and water.	Certifications SAE 100R3\|EN854 Type R3	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 10	Minimum Bend Radius 10	Minimum Working Temperature -40	Product Width 1.75	Qualified Hose Fittings Crimp OTC	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number 2583-20	Tube Material Synthetic Rubber	Product Weight 1.07 lbs

Product Questions & Answers (1)

Question by: Cody B on May 28, 2025, 5:32 PM

Reckon this'll hold up okay with gasoline running through it, or am I askin' for trouble?

Answer by: Customer Support on May 30, 2025, 6:28 AM

This hose is designed to handle gasoline, crude fuel, lubricating oils, air, and water, so you should be good to go.
