AEROQUIP HOSE

Description & Features

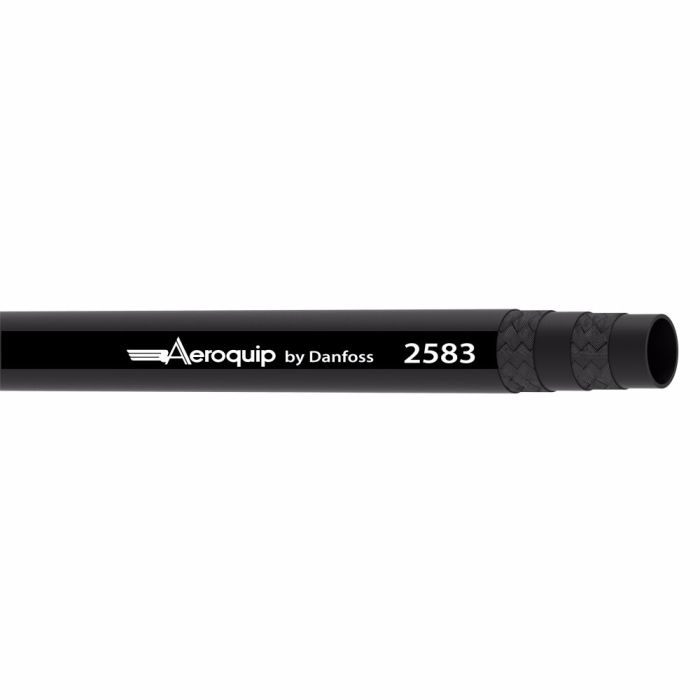

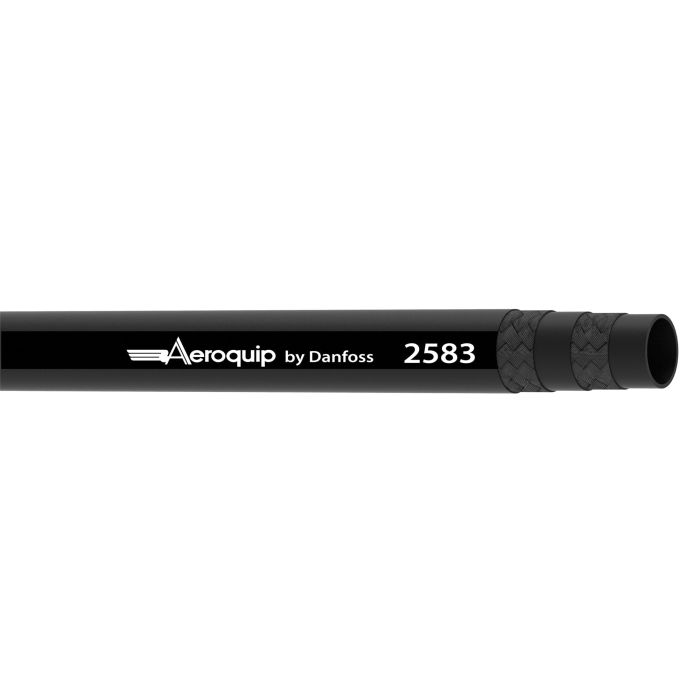

Rated to SAE 100R3 and EN854 Type R3 standards, this -4 dash size Aeroquip Hose from Eaton Aeroquip is built for medium-pressure hydraulic service across a range of fluid types, including gasoline, crude fuel, lubricating oils, air, and water. The hose features a synthetic rubber inner tube, a two-ply polyester braid reinforcement, and a chloroprene rubber outer cover, offering reliable performance down to -40°F with a minimum bend radius of 3 inches.

The conductive construction meets MSHA approval requirements, making it suitable for use in environments where static dissipation is a safety consideration. Aeroquip's system-engineered design supports extended hose assembly life, and the chloroprene cover provides standard abrasion resistance under demanding service conditions. Compatible with Crimp OTC qualified hose fittings. Lay line identification is applied via ink jet.

SKU: 2583-4

Supplier Part Number (MPN): 2583-4

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F51241	Application Gasoline, crude fuel and lubricating oils, air and water.	Certifications SAE 100R3\|EN854 Type R3	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Working Temperature -40	Product Width 0.57	Qualified Hose Fittings Crimp OTC	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number 2583-4	Tube Material Synthetic Rubber	Product Weight 0.29 lbs

Product Questions & Answers (2)

Question by: Rod T on Apr 28, 2025, 5:17 PM

What kind of stuff is this hose good for?

Answer by: Customer Support on Apr 30, 2025, 2:35 PM

It's rated to handle gasoline, crude fuel and lubricating oils, plus air and water, so it's pretty versatile around the shop.

Question by: Marvin B on Jan 13, 2026, 1:05 PM

got a small line that needs to handle gasoline and a little air, is this 2583-4 hose meant for that kind of service?

Answer by: Customer Support on Jan 14, 2026, 9:46 PM

For general fluid and utility service, this hose is rated for gasoline, crude fuel and lubricating oils, plus air and water. It is a 2-ply braided rubber hose with a synthetic rubber tube and a chloroprene rubber cover.
