Description & Features

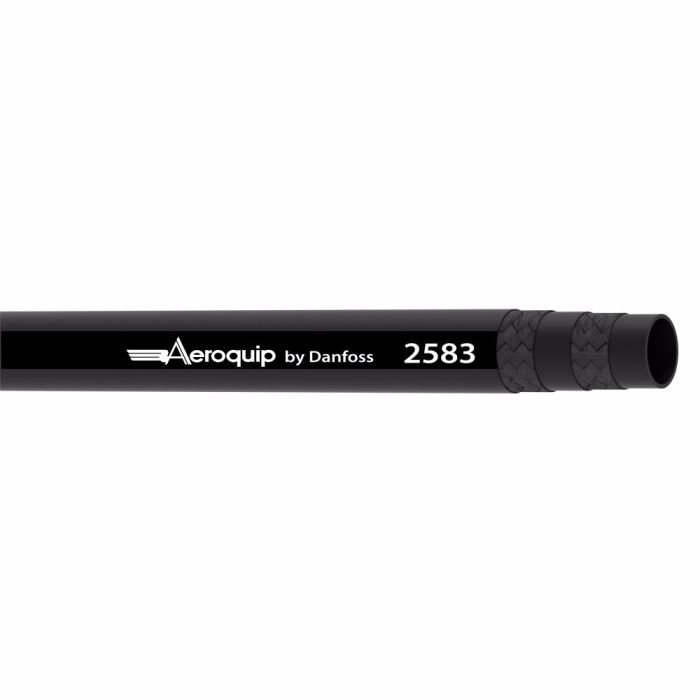

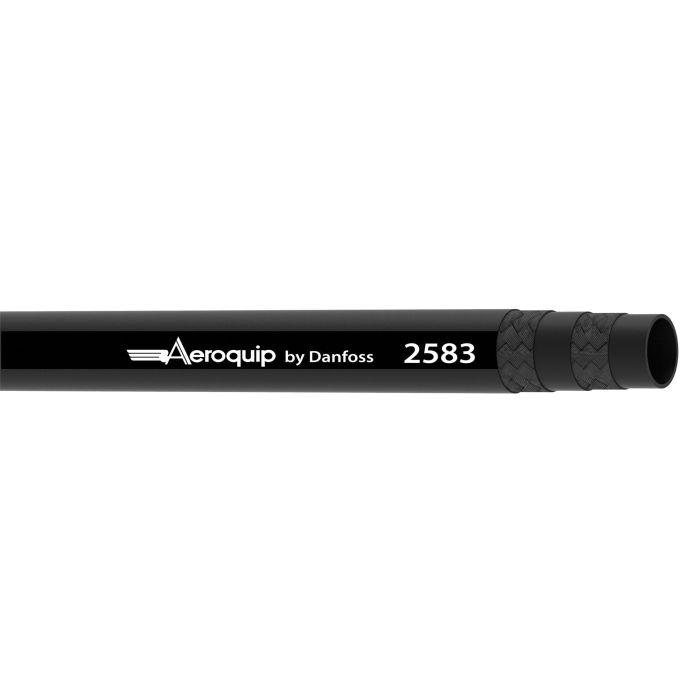

Eaton Aeroquip 2583 Series rubber hydraulic braided hose with a -8 dash size is suitable for use with gasoline, crude fuel, lubricating oils, air, and water. The hose features a 2-ply braid construction and a chloroprene rubber cover for standard abrasion resistance and robust performance in harsh operating conditions.

This Aeroquip hose is MSHA approved and meets EN854 Type R3 and SAE 100R3 certifications. Constructed with synthetic rubber tube material and polyester reinforcement, the hose is engineered for extended service life. The lay line is marked with an ink jet style. It maintains conductivity and is colored black. This hose has a minimum bend radius of 5 inches and a minimum working temperature of -40 degrees.

SKU: 2583-8

Supplier Part Number (MPN): 2583-8

Alternate Part Numbers: 2583-08, MI-00302454, MINO-00015F51243

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number 2583-08, Alternate Part Number MI-00302454, Alternate Part Number MINO-00015F51243	Application Gasoline, crude fuel and lubricating oils, air and water.	Certifications EN854 Type R3\|SAE 100R3	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 5	Minimum Working Temperature -40	Product Width 0.94	Qualified Hose Fittings Crimp OTC	Reinforcement Material Polyester	Sub Brand Aeroquip	Supplier Part Number 2583-8	Tube Material Synthetic Rubber	Product Weight 0.42 lbs

Product Questions & Answers (3)

Question by: Pete M on Jul 4, 2025, 7:21 AM

got a job with gasoline and some lube oil, is this 2583-8 hose ok for that kind of stuff?

Answer by: Customer Support on Jul 5, 2025, 7:12 PM

For fluid compatibility, it is rated for gasoline, crude fuel and lubricating oils, along with air and water, so those are all within its stated applications.

Question by: Hank M on Mar 11, 2026, 1:44 PM

hose rated for running gasoline and regular petroleum oils both, or just one or the other?

Answer by: Customer Support on Mar 13, 2026, 6:17 AM

Rated for both. The 2583-8 handles gasoline, crude fuel, and lubricating oils, along with air and water. That covers most of the common fluid types you'd run through a setup like this without needing to swap hoses between applications.

Question by: Ronnie M on Feb 24, 2026, 1:46 PM

What kind of stuff can I run through this hose?

Answer by: Customer Support on Feb 26, 2026, 7:12 AM

This Eaton Aeroquip hose handles gasoline, crude fuel, lubricating oils, air, and water.
