Aeroquip JIC Swivel SS

Description & Features

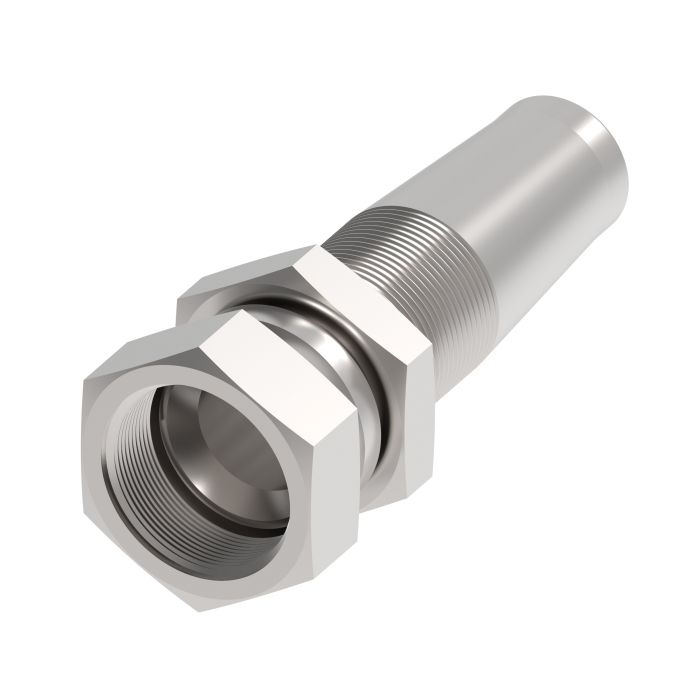

Constructed from stainless steel, this SAE 37° JIC swivel nipple assembly is part of Aeroquip's 2411 Series reusable hose fittings line. The female end features a 3/4 UNF thread, while the male end is 9/16 UNEF, with a hex size of 0.88 inches, making it suited for -8 dash size hose connections in hydraulic systems where a rotatable joint is needed to simplify routing and reduce assembly time.

The Aeroquip JIC Swivel SS is a reusable fitting designed for a broad range of industrial hydraulic applications. Stainless steel construction supports use in corrosive or demanding environments where carbon steel fittings may not be appropriate. The swivel design allows the hose end to rotate independently, which cuts assembly time and reduces stress on the hose during installation and service.

SKU: 259-2411-8

Supplier Part Number (MPN): 259-2411-8

Specifications

a Dimensions 2.74 in	Compatible Hose ID 0.41 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.66 in	Dimension Standards SAE J514	Dimensions 0.36 in ID	End Connection Torque 35 to 46 lb-ft	End Gender 1 Female	End Gender 2 Male	End Size 1 3/4 in	End Size 2 9/16 in	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 1503 Hoses	Hex Size 7/8 in	Hose Dash Size 08	Inside Diameter 0.36 in	Material Stainless Steel	Material Construction 316L Stainless Steel	Series 259-2411 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Product Questions & Answers (1)

Question by: Wade R on Jun 17, 2025, 10:50 AM

Reckon this swivel fitting would hold up okay in a hydraulic setup that sees some pretty rough use, like out on a farm?

Answer by: Customer Support on Jun 19, 2025, 7:07 AM

Built from stainless steel, this JIC swivel is designed for hydraulic applications that demand durability, especially where corrosion could be a problem with standard carbon steel fittings. It should definitely stand up to the kind of tough conditions you find on a farm.
