Aeroquip Reuse FIT 20 FJIC

Description & Features

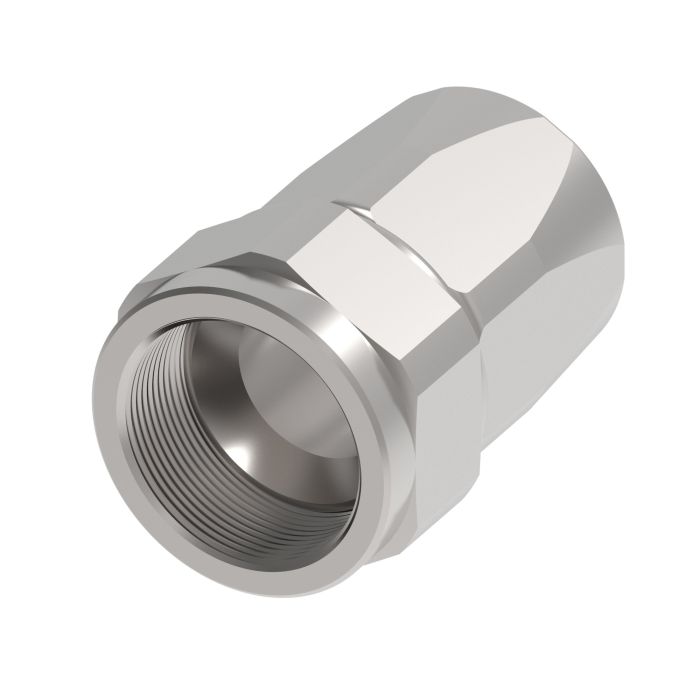

Constructed from stainless steel, this SAE 37° JIC swivel fitting is designed for reusable assembly, allowing hose ends to be disconnected and reassembled without replacing the fitting. The Aeroquip Reuse Fit 20 Fjic accommodates a -20 hose dash size with a female JIC (SAE 37°) end connection on one side and a line/hose/tube end on the other, making it a practical choice for high-pressure hydraulic hose assemblies across a wide range of industrial applications.

The reusable design helps reduce downtime during hose maintenance and can meaningfully cut assembly times in production environments. Stainless steel construction provides durability and resistance to corrosion where fluid compatibility is a concern, a fluid compatibility document is available for reference.

SKU: 259-411-20

Supplier Part Number (MPN): 259-411-20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.64 in	Dimension Standards SAE J514	Dimensions 3 in L x 2 in W x 2 in H	End Gender 1 Female	End Size 1 20	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 1503 Hoses	Hex Size 2 in	Hose Dash Size 20	Inside Diameter 1.05 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Reusable Socket Hex Size 45 mm	Series 259-411 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12	Thread Type UN

Product Questions & Answers (1)

Question by: Ralph H on Sep 15, 2025, 3:25 PM

If I take this fitting apart for maintenance, can I put it back together and reuse it?

Answer by: Customer Support on Sep 17, 2025, 6:40 AM

Yes, that's the main advantage of this Aeroquip fitting. Its reusable design means you can disconnect and reassemble your hose ends without having to replace the entire fitting.
