Aeroquip Stainless Steel Fitting

Description & Features

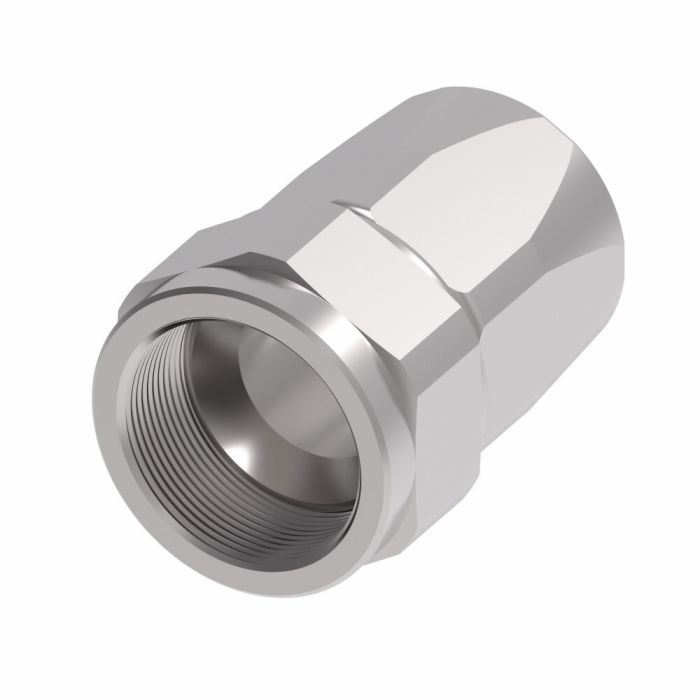

Constructed from stainless steel, this Aeroquip Stainless Steel Fitting is a reusable hose fitting from Aeroquip's 411 Series, designed for reliable performance across a wide range of hydraulic and industrial fluid conveyance applications. The female SAE 37° JIC swivel end connection on one side mates with a line, hose, or tube end on the other, making it well suited for -32 hose dash size installations where a dependable, leak-resistant joint is required.

Reusable construction reduces waste and helps cut assembly times, supporting higher throughput in demanding production or maintenance environments. Stainless steel material provides corrosion resistance and durability where fluid compatibility or environmental conditions rule out carbon steel alternatives. With a 2.88-inch product width and a 2.5 hex size on the line end, the fitting integrates cleanly into standard hydraulic assemblies.

SKU: 259-411-32

Supplier Part Number (MPN): 259-411-32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.02 in	Compatible Hose ID 2 in	Compatible Tube OD 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 2.18 in	Dimension Standards SAE J514	Dimensions 4.02 in L x 2.88 in W x 2.88 in H	End Gender 1 Female	End Size 1 32	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 1503 Hoses	Hose Dash Size 32	Inside Diameter 1-3/4 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Reusable Socket Hex Size 63 mm	Series 259-411 Series	Thread Sealant Without Thread Sealant	Thread Size 2-1/2-12	Thread Type UN	Tube Outside Diameter 1 2 in

Product Questions & Answers (1)

Question by: Neal M on Jul 13, 2025, 3:51 PM

Will this fitting hold up okay if I'm usin' it with some pretty corrosive fluids?

Answer by: Customer Support on Jul 15, 2025, 6:34 AM

Stainless steel construction gives this Aeroquip fitting good corrosion resistance, especially when you can't use carbon steel.
