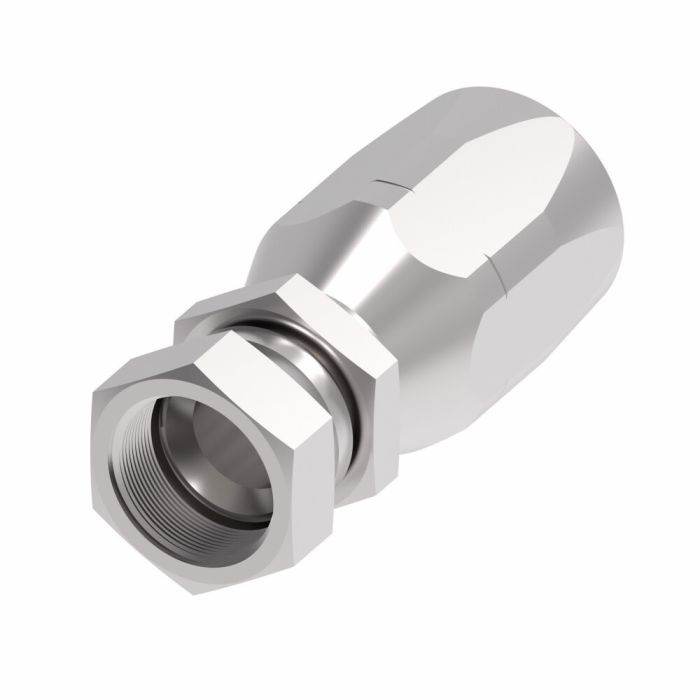

AQQP Reuse FIT 10 F JIC

Description & Features

The AQQP Reuse FIT 10 F JIC is a premium choice for industrial applications requiring reliable and durable hydraulic connections. Designed by Aeroquip, this reusable hose fitting features a SAE 37˚ JIC swivel end, ensuring compatibility with a wide range of hydraulic systems. With a female end size of 0.875 inches and a hose dash size of -8, it promises a secure fit for demanding environments.

Constructed from high-quality stainless steel, the fitting guarantees longevity and resistance to wear, making it suitable for harsh conditions. The 4721 Series fittings are recognized for cutting assembly times and boosting production efficiency. The hex size of 1.13 inches facilitates easy installation and maintenance, further enhancing operational efficiency. Trust in Aeroquip's engineering expertise for your industrial needs.

SKU: 259-4721-10-8

Supplier Part Number (MPN): 259-4721-10-8

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.31 in	Compatible Hose ID 0.62 in	Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.8 in	Dimension Standards SAE J514	Dimensions 3.31 in L x 1.13 in W x 1.3 in H	End Gender 1 Female	End Size 1 7/8 in	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 2766, 2781, FC195 and 1509 Hoses	Hex Size 0.984 in	Hose Dash Size 08	Inside Diameter 0.39 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Reusable Socket Hex Size 28 mm	Series 259-4721 Series	Thread Sealant Without Thread Sealant	Thread Size 7/8-14	Thread Type UNF

Product Questions & Answers (1)

Question by: Lee J on May 1, 2025, 12:33 PM

What size is that female end on this fitting? Just want to make sure it'll match up right.

Answer by: Customer Support on May 3, 2025, 6:06 AM

The female end measures 0.875 inches, designed to fit securely with compatible hydraulic systems.
