Aeroquip Reuse FIT 6 F JIC SWV

Description & Features

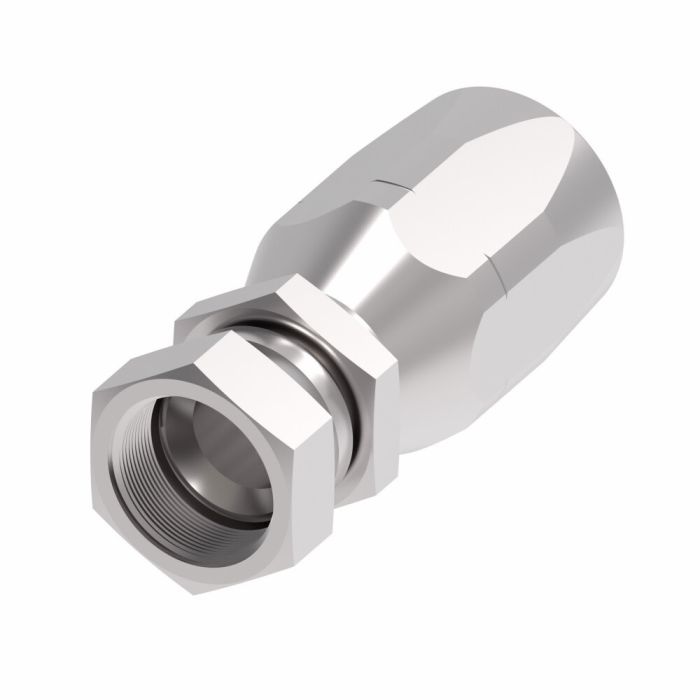

Constructed from stainless steel, the Aeroquip Reuse FIT 6 F JIC SWV is a -6 dash size reusable hose fitting from Eaton Aeroquip's 4721 Series, designed with a female SAE 37° JIC swivel end. The swivel configuration allows for easier positioning during assembly, reducing torque transfer to the hose and helping cut assembly times in demanding industrial environments.

As a reusable fitting assembly, this unit is compatible with a wide range of hydraulic hose applications and is built for durability across repeated use cycles. The 1-inch hex size and 9/16-inch (0.5625) end size make it a practical choice for standard -6 hydraulic line connections where a JIC swivel interface is required.

SKU: 259-4721-6-6

Supplier Part Number (MPN): 259-4721-6-6

Alternate Part Numbers: C1BH53

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.98 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.51 in	Dimension Standards SAE J514	Dimensions 0.26 in ID x 2.98 in L	End Connection Torque 18 to 20 lb-ft	End Gender 1 Female	End Size 1 9/16 in	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 2766, 2781, FC195 and 1509 Hoses	Hex Size 0.69 x 1 in	Hose Dash Size 06	Inside Diameter 0.26 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 259-4721 Series	Thread Sealant Without Thread Sealant	Thread Size 9/16-18	Thread Type UNF

Product Questions & Answers (3)

Question by: Sheila G on Oct 23, 2025, 12:48 PM

fitting's made of stainless steel right? just want to make sure before I order a handful of these for a job

Answer by: Customer Support on Oct 25, 2025, 6:58 AM

Stainless steel is correct. The 4721 Series from Aeroquip uses stainless steel construction, which holds up well in environments where corrosion is a concern. For a -6 hose dash size with a female JIC swivel end, these are solid workhorses when you need reliable, reusable connections.

Question by: Dwayne W on Aug 4, 2025, 9:02 PM

trying to match up a reusable fitting i’ve got, is this one a -6 female JIC swivel?

Answer by: Customer Support on Aug 6, 2025, 6:04 AM

The key identifiers line up as a 4721 Series reusable hose fitting with a -6 hose dash size and an SAE 37 degree JIC swivel female end.

Question by: Janice B on Feb 19, 2026, 6:42 AM

Will this fitting work with standard JIC connections?

Answer by: Customer Support on Feb 20, 2026, 1:37 PM

Absolutely. This Aeroquip fitting is designed with a SAE 37˚ JIC swivel end, so it's made to connect with other standard JIC fittings.
