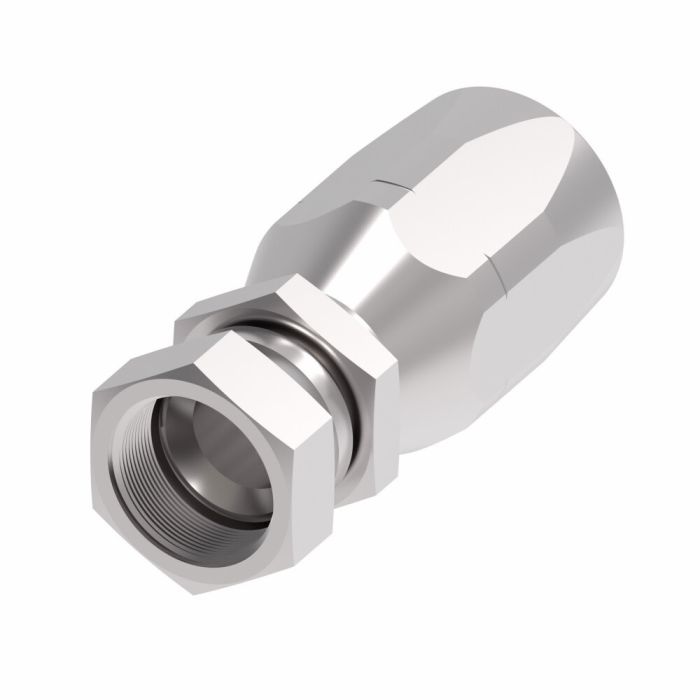

Aeroquip Reuse FIT 8 F JIC SWV

Description & Features

Constructed from stainless steel, this reusable hose fitting is designed for dependable performance across a wide range of hydraulic applications. The Aeroquip Reuse Fit 8 F JIC Swv features a female SAE 37° JIC swivel end connection on a -6 hose dash size, making it a practical choice for hose assemblies where leak-free swivel engagement is required.

Part of the Aeroquip 4721 Series, this fitting assembly is built for reusability, helping to cut assembly times and support higher production efficiency in demanding industrial environments. The 1-inch hex size on the line end allows for straightforward installation with standard tooling.

SKU: 259-4721-8-6

Supplier Part Number (MPN): 259-4721-8-6

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.11 in	Compatible Hose ID 0.38 in	Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.64 in	Dimension Standards SAE J514	Dimensions 0.31 in ID x 3.11 in L	End Connection Torque 35 to 46 lb-ft	End Gender 1 Female	End Size 1 3/4 in	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 2766, 2781, FC195 and 1509 Hoses	Hex Size 7/8 x 1 in	Hose Dash Size 06	Inside Diameter 0.31 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series 259-4721 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Product Questions & Answers (1)

Question by: Tony G on Jan 6, 2026, 2:05 PM

What size is the hose that this fitting works with? Just want to make sure I'm getting the right one.

Answer by: Customer Support on Jan 7, 2026, 9:56 PM

It's designed for a -6 hose dash size, so that's what you'll want to match it up with.
