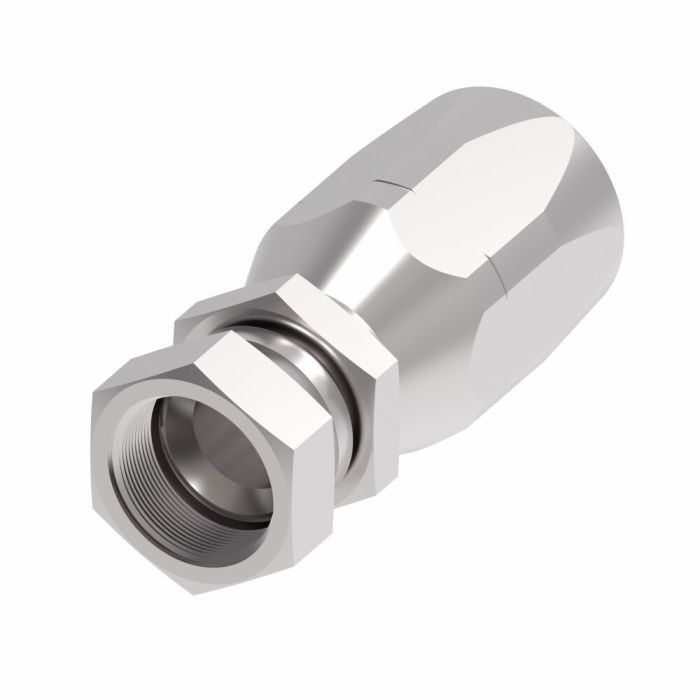

Aeroquip Reuse FIT 8 F JIC SWV

Description & Features

Constructed from stainless steel, this -8 hose dash size fitting delivers reliable performance across a wide range of hydraulic hose assemblies. The Aeroquip Reuse Fit 8 F JIC Swv is a reusable swivel fitting from Eaton Aeroquip's 4721 Series, designed with a female SAE 37° JIC end connection at a 0.75-inch end size.

Reusable fittings in this series are well suited for applications where reduced assembly time and repeatable performance matter. The swivel configuration allows for easier line alignment during installation, and the 1.13-inch hex size accommodates standard tooling.

Weighing 0.45 lb, this fitting is classified as a hose fitting assembly and is appropriate for hydraulic hose connections requiring SAE 37° JIC thread engagement.

SKU: 259-4721-8-8

Supplier Part Number (MPN): 259-4721-8-8

Alternate Part Numbers: C1BH54

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.2 in	Compatible Hose ID 1/2 in	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Female JIC Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.68 in	Dimension Standards SAE J514	Dimensions 3.2 in L x 1.13 in W x 1.3 in H	End Gender 1 Female	End Size 1 3/4 in	Finish Passivated	Fitting Type Straight Fitting	For Use With Model 2766, 2781 and FC195 Hoses	Hex Size 7/8 in	Hose Dash Size 08	Inside Diameter 0.39 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Reusable Socket Hex Size 28 mm	Series 259-4721 Series	Thread Sealant Without Thread Sealant	Thread Size 3/4-16	Thread Type UNF

Product Questions & Answers (2)

Question by: Rod A on Oct 4, 2025, 4:42 PM

what size hose dash is this fitting made for, and is it one of them reusable ones or do you gotta replace it every time?

Answer by: Customer Support on Oct 5, 2025, 5:17 PM

Reusable is exactly what you're getting here. The 4721 Series from Aeroquip is built around the idea that you can pull the fitting off and put it back on without trashing it, which saves real money over time on -8 hose applications. The hose dash size is -8, so that's your three-quarter inch hose territory. Stainless steel construction keeps it holding up through repeated use without the kind of wear you'd see on cheaper fittings.

Question by: Dean M on Sep 16, 2025, 4:29 PM

Is this thing stainless? Need somethin' that won't rust out on me.

Answer by: Customer Support on Sep 18, 2025, 12:12 PM

You bet, this Aeroquip fitting is made from stainless steel, so it should hold up well in environments where corrosion is a concern.
