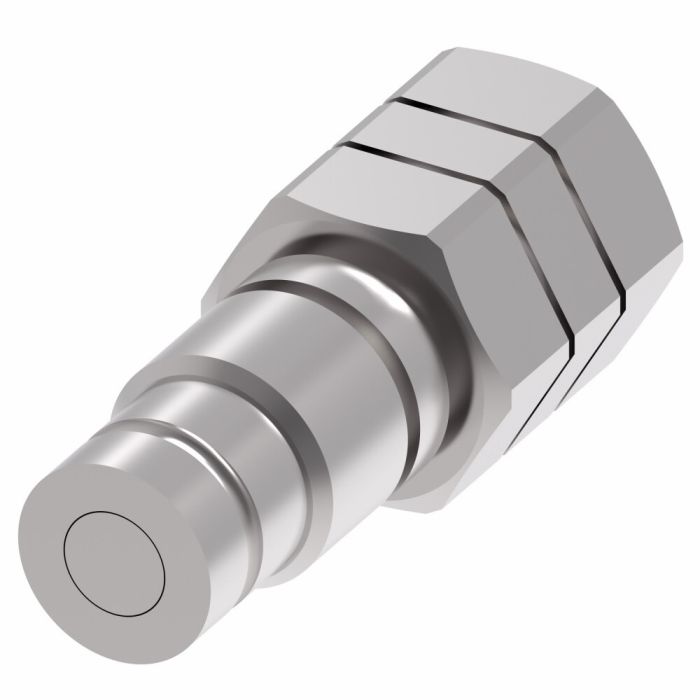

main product photo

Plug

Ask A Question

Description & Features

Designed for hydraulic and fluid transfer applications, the Eaton Aeroquip Hansen FF Series Quick Disconnect Couplings Plug ensures seamless performance across a range of vehicles and equipment. This male socket features a 1-inch BSPP connection, allowing for quick connect and disconnect without the need for special tools. The durable carbon steel construction, combined with a flat face internal connection, offers enhanced durability and leak-free performance.

Certified to ISO 16028 standards and compliant with RoHS and REACH regulations, this plug exceeds standard operating pressures, ensuring reliability in demanding conditions. With a flow rate of 48.6 gallons per minute and a torque rating of 58.5 lb/ft, it is ideal for use in construction, agriculture, and stationary in-plant hydraulics. The sleeve lock safety mechanism and NBR+AU seal material further enhance the plug's secure and efficient operation.

SKU: 25FFP100BS

Supplier Part Number (MPN): 25FFP100BS

Specifications

Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
RoHS Compliant|REACH|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
1
End Type 1
Push to Connect
End Type 2
BSPP
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
48.6 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Male Half
Language
English
Minimum Working Temperature
-13
Product Material
Carbon Steel
Product Width
2.36
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
25FFP100BS
Torque Rating
58.5 lb/ft
Torque Rating
58.5 lb/ft
Valve Type
2 way
Product Weight
2.36 lbs

Related Documents

Product Questions & Answers (3)

Question by: Shawn C on Jul 1, 2025, 12:18 PM
does this plug work with a 1 inch BSPP port, or do i need an adapter for that
Answer by: Customer Support on Jul 3, 2025, 7:15 AM
Straight fit, no adapter needed. The coupling end is a 1-inch BSPP female port, so it threads directly into a matching BSPP connection. The push-to-connect side handles the quick disconnect function on the other end, and the sleeve lock keeps everything secured once it's mated up.
Question by: Gene J on Sep 23, 2025, 7:14 PM
Will this plug hold up if I'm using it pretty much all day, every day?
Answer by: Customer Support on Sep 25, 2025, 6:37 AM
These plugs are good for continuous use in hydraulic and fluid transfer applications, even in construction and agricultural equipment.
Question by: Kurt R on Aug 22, 2025, 2:41 PM
got a 1 inch BSPP hose end already. is this the right plug half for a flat face quick disconnect?
Answer by: Customer Support on Aug 24, 2025, 6:50 AM
With a 1 inch BSPP threaded end and a flat face internal connection style, this part is the male half (plug) for the Hansen FF Series quick disconnect setup.
