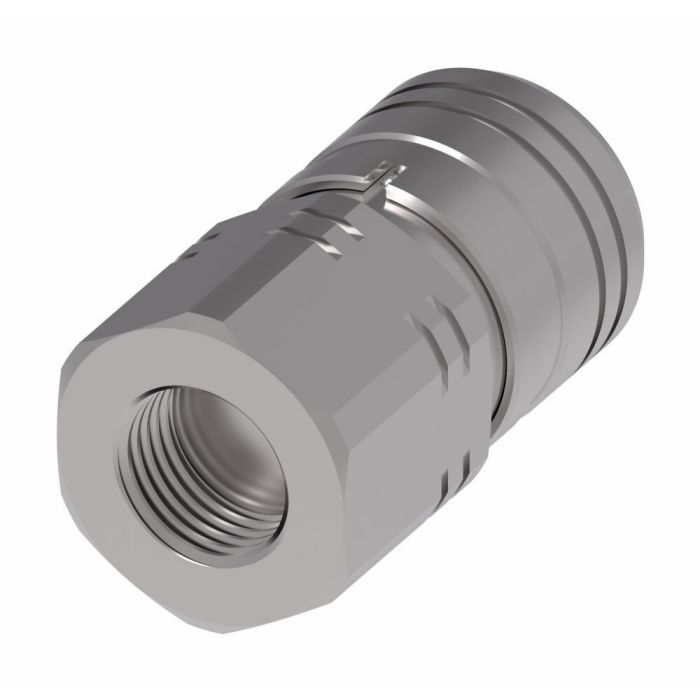

Designed for flat face connection in hydraulic and fluid transfer applications, the Danfoss / Eaton Hansen FF Series quick disconnect coupling socket is a female half fitting with a push-to-connect end and a 1-inch NPT port. Constructed from carbon steel with an NBR+AU seal, it suits demanding environments across construction, agricultural, utility, and on-highway vehicle applications, as well as stationary in-plant fluid transfer systems. At the 3/8-inch size, it is interchangeable with HTMA couplings.
The sleeve lock safety mechanism and two-way valve design support reliable connect and disconnect cycles without special tools. Rated to exceed ISO 16028 operating pressures, this coupling also carries RoHS, REACH, and European Pressure Equipment Directive (PED 97/23 EC Article 3.3) compliance. A flow rate of 48.6 gallons per minute and a torque rating of 58.5 lb/ft round out the performance profile. Minimum working temperature is -13°F.
SKU: 25FFS100
Supplier Part Number (MPN): 25FFS100
|
Alternate Part Numbers
MINO-00015X05057
|
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
RoHS Compliant|REACH|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
48.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.36
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
25FFS100
|
Torque Rating
58.5 lb/ft
|
Torque Rating
58.5 lb/ft
|
Valve Type
2 way
|
Product Weight
3.07 lbs
|
