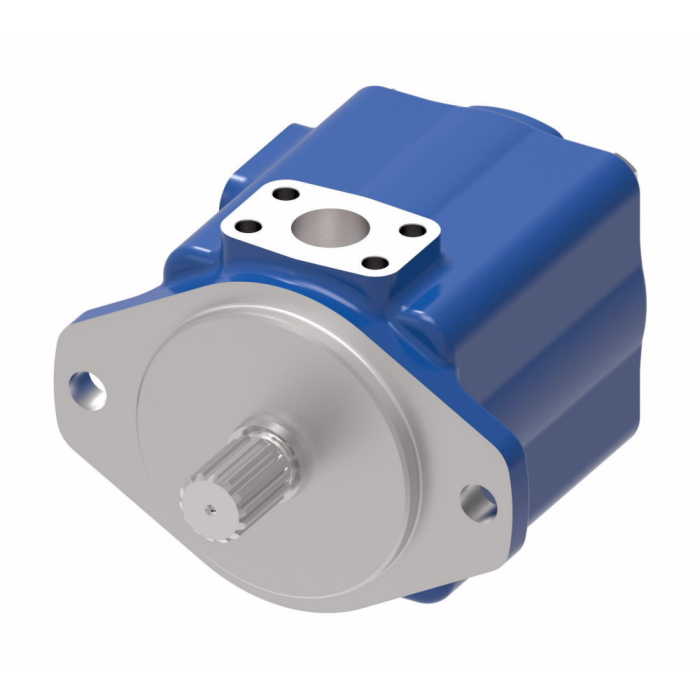

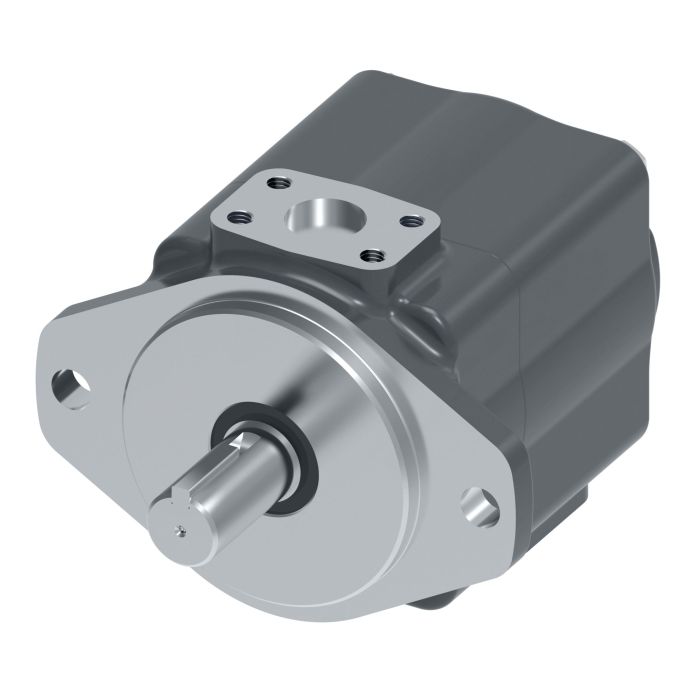

main product photo

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question

Description & Features

Rated for up to 3,000 PSI and 2,500 RPM, this single vane pump is well-suited for demanding industrial applications including metal cutting, plastic injection molding, dump truck, and wheel loader hydraulic systems. The 25VQ Series Vane Pump features a 17 ring size, 7/8 straight keyed shaft, and clockwise rotation, with port configuration set as outlet opposite inlet.

Mounting uses a 2-bolt SAE B flange, with SAE 4-bolt flange ports sized at 1-1/2" inlet and 1" outlet. Displacement is 3.37 in³/rev with a rated flow of 25.5 GPM. Buna-N seals are standard. Built for high-pressure, high-speed service, the pump is designed to deliver consistent volumetric efficiency and extended service life. This unit is part of the Danfoss Power Solutions (formerly Eaton Vickers) VQ series lineup.

SKU: 417992-1

Supplier Part Number (MPN): 417992-1

Alternate Part Numbers: 25VQ17A1A20, C1KA26

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
3.37
Displacement
3.37
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
Opposite Outlet
Rated Flow
25.50
Rated Flow
25.5
Ring Size
17
Ring Size
17
Rotation
CW
Seal Material
Buna-N
Series
25VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
417992-1
Alternate Part Numbers
Alternate Part Number 25VQ17A1A20, Alternate Part Number C1KA26, Alternate Part Number MINO-00900H60368
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-1B20 25VQ Series Vane Pump

416457-2

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-1C20 25VQ Series Vane Pump

416457-3

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-1D20 25VQ Series Vane Pump

416457-4

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-1A20 25VQ Series Vane Pump

416457-5

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-1B20-L 25VQ Series Vane Pump

416457-6

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-1C20-L 25VQ Series Vane Pump

416457-7

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-1D20-L 25VQ Series Vane Pump

416457-8

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-1B20 25VQ Series Vane Pump

417992-2

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-1C20 25VQ Series Vane Pump

417992-3

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-1D20- 25VQ Series Vane Pump

417992-4

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-1A20-L 25VQ Series Vane Pump

417992-5

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-1B20-L 25VQ Series Vane Pump

417992-6

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-1C20-L 25VQ Series Vane Pump

417992-7

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-1D20-L 25VQ Series Vane Pump

417992-8

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-1B20 25VQ Series Vane Pump

417993-2

7/8 Straight Keyed

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-1C20 25VQ Series Vane Pump

417993-3

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-1D20 25VQ Series Vane Pump

417993-4

7/8 Straight Keyed

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-1A20-L 25VQ Series Vane Pump

417993-5

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-1C20-L 25VQ Series Vane Pump

417993-7

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-1B20 25VQ Series Vane Pump

417994-2

7/8 Straight Keyed

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-1C20 25VQ Series Vane Pump

417994-3

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-1D20 25VQ Series Vane Pump

417994-4

7/8 Straight Keyed

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-1A20-L 25VQ Series Vane Pump

417994-5

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-1C20-L 25VQ Series Vane Pump

417994-7

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-11B20 25VQ Series Vane Pump

421472-2

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-11C20 25VQ Series Vane Pump

421472-3

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-11D20 25VQ Series Vane Pump

421472-4

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-11A20-L 25VQ Series Vane Pump

421472-5

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ14A-11B20-L 25VQ Series Vane Pump

421472-6

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-11C20-L 25VQ Series Vane Pump

421472-7

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ14A-11D20-L 25VQ Series Vane Pump

421472-8

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-11B20 25VQ Series Vane Pump

421475-2

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-11C20 25VQ Series Vane Pump

421475-3

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-11D20 25VQ Series Vane Pump

421475-4

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-11A20-L 25VQ Series Vane Pump

421475-5

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-11B20-L 25VQ Series Vane Pump

421475-6

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-11C20-L 25VQ Series Vane Pump

421475-7

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-11D20-L 25VQ Series Vane Pump

421475-8

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-11B20 25VQ Series Vane Pump

421477-2

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-11C20 25VQ Series Vane Pump

421477-3

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-11D20 25VQ Series Vane Pump

421477-4

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-11A20-L 25VQ Series Vane Pump

421477-5

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-11B20-L 25VQ Series Vane Pump

421477-6

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-11C20-L 25VQ Series Vane Pump

421477-7

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-11D20-L 25VQ Series Vane Pump

421477-8

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-11B20 25VQ Series Vane Pump

429946-2

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-11C20 25VQ Series Vane Pump

429946-3

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-11D20 25VQ Series Vane Pump

429946-4

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-11A20-L 25VQ Series Vane Pump

429946-5

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ12A-11B20-L 25VQ Series Vane Pump

429946-6

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-11C20-L 25VQ Series Vane Pump

429946-7

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ12A-11D20-L 25VQ Series Vane Pump

429946-8

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-1B20 25VQ Series Vane Pump

578308-2

7/8 Straight Keyed

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-1C20 25VQ Series Vane Pump

578308-3

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-1D20 25VQ Series Vane Pump

578308-4

7/8 Straight Keyed

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-1A20-L 25VQ Series Vane Pump

578308-5

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-1C20 -L 25VQ Series Vane Pump

578308-7

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-11B20 25VQ Series Vane Pump

629379-2

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-11C20 25VQ Series Vane Pump

629379-3

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-11D20 25VQ Series Vane Pump

629379-4

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-11A20-L 25VQ Series Vane Pump

629379-5

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-11C20-L 25VQ Series Vane Pump

629379-7

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-1A20-L 25VQ Series Vane Pump

416457-1

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-1A20 25VQ Series Vane Pump

417992-1

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-1A20 25VQ Series Vane Pump

417993-1

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-1A20 25VQ Series Vane Pump

417994-1

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-11A20 25VQ Series Vane Pump

421472-1

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-11A20 25VQ Series Vane Pump

421475-1

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-11A20 25VQ Series Vane Pump

421477-1

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-11A20 25VQ Series Vane Pump

429946-1

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-1A20 25VQ Series Vane Pump

578308-1

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-11A20 25VQ Series Vane Pump

629379-1

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (2)

Question by: Clint M on Feb 8, 2026, 12:10 PM
got a 25VQ pump to swap out, how do i make sure this one matches up before i tear into it?
Answer by: Customer Support on Feb 9, 2026, 8:36 PM
Match the key identifiers: it is a 25VQ series single vane pump with a 17 ring size, 3.37 in³/rev displacement, and a 7/8 straight keyed shaft. Rotation is clockwise, the port layout is outlet opposite inlet, mounting is a 2-bolt SAE B flange, and the ports are SAE 4-bolt flange style with a 1-1/2 inch inlet and 1 inch outlet. If your old unit lines up on those points, it is the same fit style.
Question by: Judy H on May 14, 2025, 6:16 PM
Running a dump truck setup and need something that'll hold up to 3,000 PSI without sweating it. This the right pump for that kind of work?
Answer by: Customer Support on May 16, 2025, 10:32 AM
Rated right at 3,000 PSI max, this pump handles the pressure demands you'd see in dump truck hydraulics without issue. It's built for high-pressure, high-speed service, and the 25VQ series has a track record in exactly that kind of application. Flow comes in at 25.5 GPM with 3.37 cubic inches per rev displacement, so you're getting solid output alongside that pressure rating. Buna-N seals are standard, which hold up well in typical hydraulic fluid environments.
