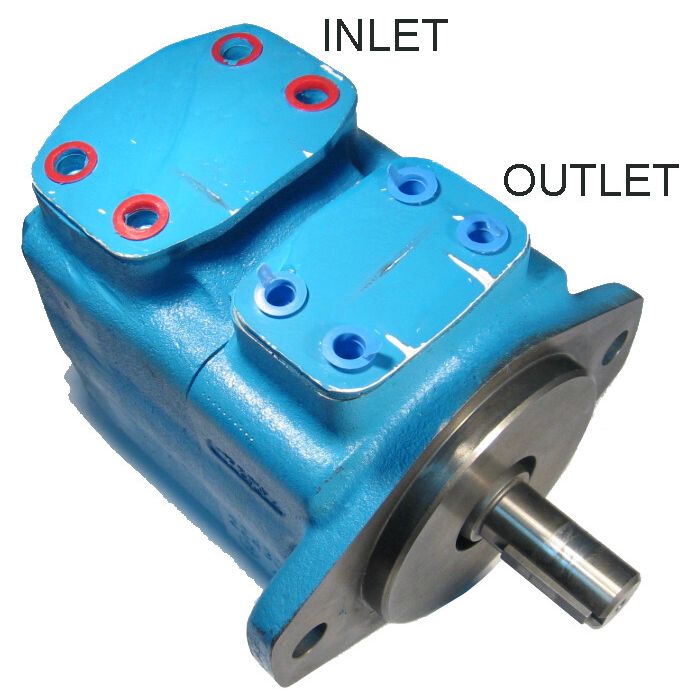

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

Description & Features

This Eaton Vickers 25VQ Series Vane Pump is designed for demanding high-pressure, high-speed applications such as those found in oil and gas, metal cutting, plastic injection molding, dump trucks, and wheel loaders.

This 25VQ Series Vane Pump features a 7/8 straight keyed shaft and a 14 ring size. It offers a rated flow of 21.5 GPM at speeds up to 2700 RPM. The pump features a 2-Bolt SAE B mounting flange and SAE 4-Bolt Flange Ports: 1-1/2" Inlet, 1" Outlet. The outlet port is positioned 90 degrees CCW from the outlet, and it has CW rotation. It delivers outstanding volumetric efficiency and long operating life, with a maximum pressure of 3000 PSI.

SKU: 417993-4

Supplier Part Number (MPN): 417993-4

Alternate Part Numbers: C1KA29

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 2.77	Displacement 2.77	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location 90 deg CCW from Outlet	Rated Flow 21.50	Rated Flow 21.5	Ring Size 14	Ring Size 14	Rotation CW	Seal Material None	Series 25VQ	Shaft 7/8 Straight Keyed	Shaft 7/8 Straight Keyed	Special Features None	Speed Rating 2700 RPM	Speed Rating 2700 RPM	Supplier Part Number 417993-4	Alternate Part Numbers Alternate Part Number C1KA29, Alternate Part Number MINO-00900X55861	Product Weight 32.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
25VQ21A-1B20 25VQ Series Vane Pump	416457-2	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-1C20 25VQ Series Vane Pump	416457-3	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-1D20 25VQ Series Vane Pump	416457-4	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-1A20 25VQ Series Vane Pump	416457-5	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-1B20-L 25VQ Series Vane Pump	416457-6	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-1C20-L 25VQ Series Vane Pump	416457-7	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1D20-L 25VQ Series Vane Pump	416457-8	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ17A-1B20 25VQ Series Vane Pump	417992-2	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-1C20 25VQ Series Vane Pump	417992-3	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-1D20- 25VQ Series Vane Pump	417992-4	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-1A20-L 25VQ Series Vane Pump	417992-5	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1B20-L 25VQ Series Vane Pump	417992-6	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-1C20-L 25VQ Series Vane Pump	417992-7	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-1D20-L 25VQ Series Vane Pump	417992-8	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ14A-1B20 25VQ Series Vane Pump	417993-2	7/8 Straight Keyed	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-1C20 25VQ Series Vane Pump	417993-3	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-1D20 25VQ Series Vane Pump	417993-4	7/8 Straight Keyed	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-1A20-L 25VQ Series Vane Pump	417993-5	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-1C20-L 25VQ Series Vane Pump	417993-7	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-1B20 25VQ Series Vane Pump	417994-2	7/8 Straight Keyed	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-1C20 25VQ Series Vane Pump	417994-3	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-1D20 25VQ Series Vane Pump	417994-4	7/8 Straight Keyed	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-1A20-L 25VQ Series Vane Pump	417994-5	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-1C20-L 25VQ Series Vane Pump	417994-7	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11B20 25VQ Series Vane Pump	421472-2	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-11C20 25VQ Series Vane Pump	421472-3	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-11D20 25VQ Series Vane Pump	421472-4	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-11A20-L 25VQ Series Vane Pump	421472-5	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-11B20-L 25VQ Series Vane Pump	421472-6	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ14A-11C20-L 25VQ Series Vane Pump	421472-7	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11D20-L 25VQ Series Vane Pump	421472-8	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ17A-11B20 25VQ Series Vane Pump	421475-2	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-11C20 25VQ Series Vane Pump	421475-3	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-11D20 25VQ Series Vane Pump	421475-4	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-11A20-L 25VQ Series Vane Pump	421475-5	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-11B20-L 25VQ Series Vane Pump	421475-6	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-11C20-L 25VQ Series Vane Pump	421475-7	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-11D20-L 25VQ Series Vane Pump	421475-8	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ21A-11B20 25VQ Series Vane Pump	421477-2	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-11C20 25VQ Series Vane Pump	421477-3	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-11D20 25VQ Series Vane Pump	421477-4	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-11A20-L 25VQ Series Vane Pump	421477-5	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ21A-11B20-L 25VQ Series Vane Pump	421477-6	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-11C20-L 25VQ Series Vane Pump	421477-7	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-11D20-L 25VQ Series Vane Pump	421477-8	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ12A-11B20 25VQ Series Vane Pump	429946-2	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-11C20 25VQ Series Vane Pump	429946-3	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-11D20 25VQ Series Vane Pump	429946-4	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-11A20-L 25VQ Series Vane Pump	429946-5	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-11B20-L 25VQ Series Vane Pump	429946-6	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ12A-11C20-L 25VQ Series Vane Pump	429946-7	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-11D20-L 25VQ Series Vane Pump	429946-8	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ19A-1B20 25VQ Series Vane Pump	578308-2	7/8 Straight Keyed	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-1C20 25VQ Series Vane Pump	578308-3	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-1D20 25VQ Series Vane Pump	578308-4	7/8 Straight Keyed	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-1A20-L 25VQ Series Vane Pump	578308-5	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-1C20 -L 25VQ Series Vane Pump	578308-7	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ19A-11B20 25VQ Series Vane Pump	629379-2	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-11C20 25VQ Series Vane Pump	629379-3	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-11D20 25VQ Series Vane Pump	629379-4	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-11A20-L 25VQ Series Vane Pump	629379-5	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-11C20-L 25VQ Series Vane Pump	629379-7	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1A20-L 25VQ Series Vane Pump	416457-1	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1A20 25VQ Series Vane Pump	417992-1	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ14A-1A20 25VQ Series Vane Pump	417993-1	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ12A-1A20 25VQ Series Vane Pump	417994-1	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ14A-11A20 25VQ Series Vane Pump	421472-1	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ17A-11A20 25VQ Series Vane Pump	421475-1	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-11A20 25VQ Series Vane Pump	421477-1	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ12A-11A20 25VQ Series Vane Pump	429946-1	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ19A-1A20 25VQ Series Vane Pump	578308-1	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM
25VQ19A-11A20 25VQ Series Vane Pump	629379-1	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (3)

Question by: Cheryl P on Oct 16, 2025, 11:39 AM

Will this pump work for plastic injection molding, or is it too much?

Answer by: Customer Support on Oct 18, 2025, 6:57 AM

Designed for plastic injection molding, this vane pump is also suitable for metal cutting, oil and gas applications, dump trucks, and wheel loaders.

Question by: Gene R on Dec 6, 2025, 12:18 PM

pump says CW rotation, that mean it's no good if my system runs counterclockwise?

Answer by: Customer Support on Dec 8, 2025, 7:51 AM

Correct, this pump is built for clockwise rotation only. Running it in the wrong direction will damage the internals and you won't get proper flow. If your power unit or PTO spins counterclockwise, you'd need a pump spec'd for that rotation instead.

Question by: Cindy F on Dec 1, 2025, 11:20 AM

got a setup that needs a 2-bolt SAE B mount. is this pump built for that, and what size are the ports?

Answer by: Customer Support on Dec 2, 2025, 5:39 PM

Mounting and ports are set up as a 2-bolt SAE B mounting flange, with SAE 4-bolt flange ports sized 1-1/2 inch inlet and 1 inch outlet.
