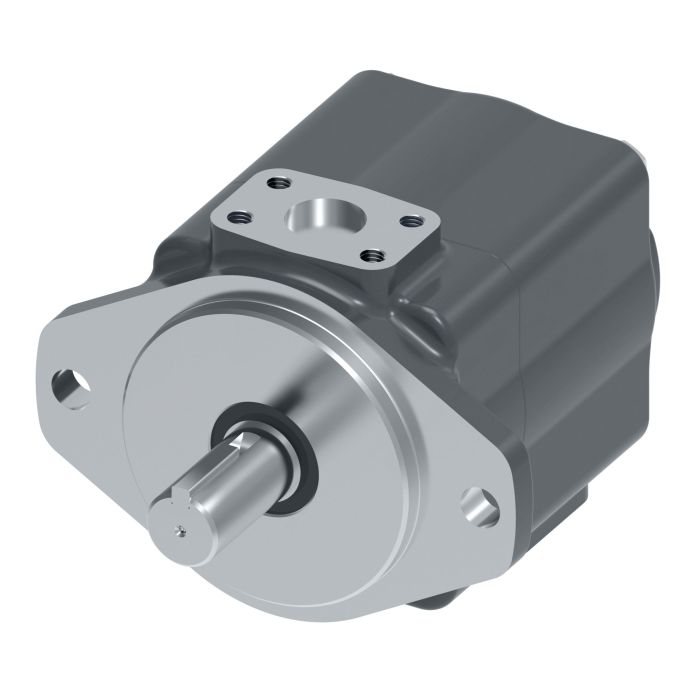

main product photo

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question

Description & Features

Designed for high-pressure, high-speed hydraulic circuits, the 25VQ Series Vane Pump delivers a rated flow of 18 GPM at up to 3000 PSI maximum pressure, with a speed rating of 2700 RPM. The 12 ring size configuration uses a 7/8 straight keyed shaft and features clockwise rotation with an inlet port positioned opposite the outlet.

Mounting is via a 2-bolt SAE B flange, with SAE 4-bolt flange ports sized at 1-1/2" inlet and 1" outlet. Buna-N seals are standard. This unit is suited for demanding applications including metal cutting machinery, plastic injection molding equipment, dump trucks, and wheel loaders.

Manufactured under the Danfoss Power Solutions brand, this pump is built for consistent volumetric efficiency and extended service life in continuous-duty hydraulic systems.

SKU: 417994-1

Supplier Part Number (MPN): 417994-1

Alternate Part Numbers: C1KA30

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.45
Displacement
2.45
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
Opposite Outlet
Rated Flow
18
Rated Flow
18
Ring Size
12
Ring Size
12
Rotation
CW
Seal Material
Buna-N
Series
25VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
417994-1
Alternate Part Numbers
Alternate Part Number C1KA30, Alternate Part Number MINO-00900H60348
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-1B20 25VQ Series Vane Pump

416457-2

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-1C20 25VQ Series Vane Pump

416457-3

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-1D20 25VQ Series Vane Pump

416457-4

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-1A20 25VQ Series Vane Pump

416457-5

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-1B20-L 25VQ Series Vane Pump

416457-6

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-1C20-L 25VQ Series Vane Pump

416457-7

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-1D20-L 25VQ Series Vane Pump

416457-8

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-1B20 25VQ Series Vane Pump

417992-2

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-1C20 25VQ Series Vane Pump

417992-3

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-1D20- 25VQ Series Vane Pump

417992-4

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-1A20-L 25VQ Series Vane Pump

417992-5

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-1B20-L 25VQ Series Vane Pump

417992-6

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-1C20-L 25VQ Series Vane Pump

417992-7

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-1D20-L 25VQ Series Vane Pump

417992-8

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-1B20 25VQ Series Vane Pump

417993-2

7/8 Straight Keyed

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-1C20 25VQ Series Vane Pump

417993-3

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-1D20 25VQ Series Vane Pump

417993-4

7/8 Straight Keyed

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-1A20-L 25VQ Series Vane Pump

417993-5

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-1C20-L 25VQ Series Vane Pump

417993-7

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-1B20 25VQ Series Vane Pump

417994-2

7/8 Straight Keyed

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-1C20 25VQ Series Vane Pump

417994-3

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-1D20 25VQ Series Vane Pump

417994-4

7/8 Straight Keyed

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-1A20-L 25VQ Series Vane Pump

417994-5

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-1C20-L 25VQ Series Vane Pump

417994-7

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-11B20 25VQ Series Vane Pump

421472-2

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-11C20 25VQ Series Vane Pump

421472-3

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-11D20 25VQ Series Vane Pump

421472-4

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-11A20-L 25VQ Series Vane Pump

421472-5

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ14A-11B20-L 25VQ Series Vane Pump

421472-6

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-11C20-L 25VQ Series Vane Pump

421472-7

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ14A-11D20-L 25VQ Series Vane Pump

421472-8

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-11B20 25VQ Series Vane Pump

421475-2

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-11C20 25VQ Series Vane Pump

421475-3

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-11D20 25VQ Series Vane Pump

421475-4

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-11A20-L 25VQ Series Vane Pump

421475-5

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-11B20-L 25VQ Series Vane Pump

421475-6

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-11C20-L 25VQ Series Vane Pump

421475-7

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-11D20-L 25VQ Series Vane Pump

421475-8

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-11B20 25VQ Series Vane Pump

421477-2

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-11C20 25VQ Series Vane Pump

421477-3

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-11D20 25VQ Series Vane Pump

421477-4

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-11A20-L 25VQ Series Vane Pump

421477-5

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-11B20-L 25VQ Series Vane Pump

421477-6

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-11C20-L 25VQ Series Vane Pump

421477-7

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-11D20-L 25VQ Series Vane Pump

421477-8

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-11B20 25VQ Series Vane Pump

429946-2

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-11C20 25VQ Series Vane Pump

429946-3

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-11D20 25VQ Series Vane Pump

429946-4

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-11A20-L 25VQ Series Vane Pump

429946-5

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ12A-11B20-L 25VQ Series Vane Pump

429946-6

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-11C20-L 25VQ Series Vane Pump

429946-7

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ12A-11D20-L 25VQ Series Vane Pump

429946-8

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-1B20 25VQ Series Vane Pump

578308-2

7/8 Straight Keyed

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-1C20 25VQ Series Vane Pump

578308-3

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-1D20 25VQ Series Vane Pump

578308-4

7/8 Straight Keyed

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-1A20-L 25VQ Series Vane Pump

578308-5

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-1C20 -L 25VQ Series Vane Pump

578308-7

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-11B20 25VQ Series Vane Pump

629379-2

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-11C20 25VQ Series Vane Pump

629379-3

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-11D20 25VQ Series Vane Pump

629379-4

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-11A20-L 25VQ Series Vane Pump

629379-5

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-11C20-L 25VQ Series Vane Pump

629379-7

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-1A20-L 25VQ Series Vane Pump

416457-1

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-1A20 25VQ Series Vane Pump

417992-1

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-1A20 25VQ Series Vane Pump

417993-1

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-1A20 25VQ Series Vane Pump

417994-1

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-11A20 25VQ Series Vane Pump

421472-1

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-11A20 25VQ Series Vane Pump

421475-1

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-11A20 25VQ Series Vane Pump

421477-1

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-11A20 25VQ Series Vane Pump

429946-1

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-1A20 25VQ Series Vane Pump

578308-1

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-11A20 25VQ Series Vane Pump

629379-1

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (1)

Question by: Wes A on Nov 17, 2025, 11:51 AM
what's the max pressure this pump can handle, and is 3000 PSI enough for a plastic injection molding setup?
Answer by: Customer Support on Nov 18, 2025, 4:25 PM
At 3000 PSI maximum pressure, it fits right in line with what most injection molding circuits run. The 25VQ series was built for exactly that kind of demanding, continuous-duty work, and 18 GPM rated flow gives you solid output for keeping cycle times tight. The Buna-N seals hold up well in standard hydraulic fluid environments, so you're not looking at a weak point there either.
