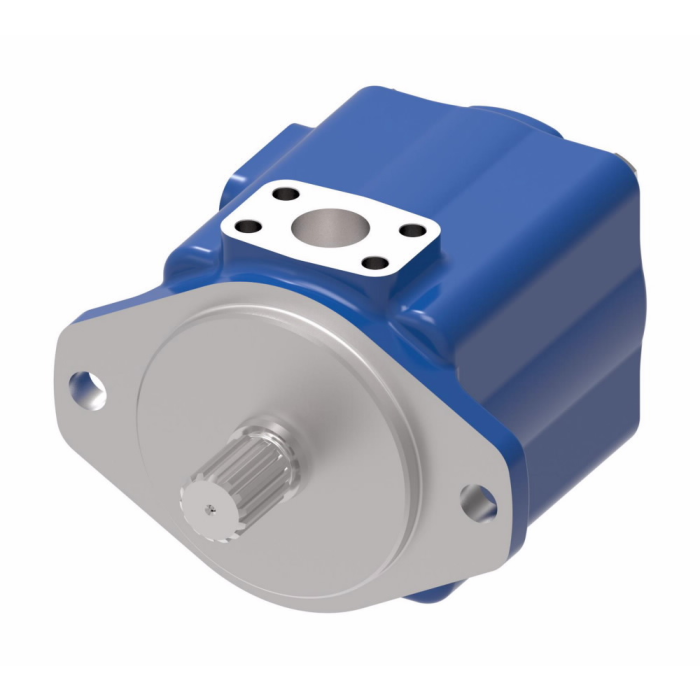

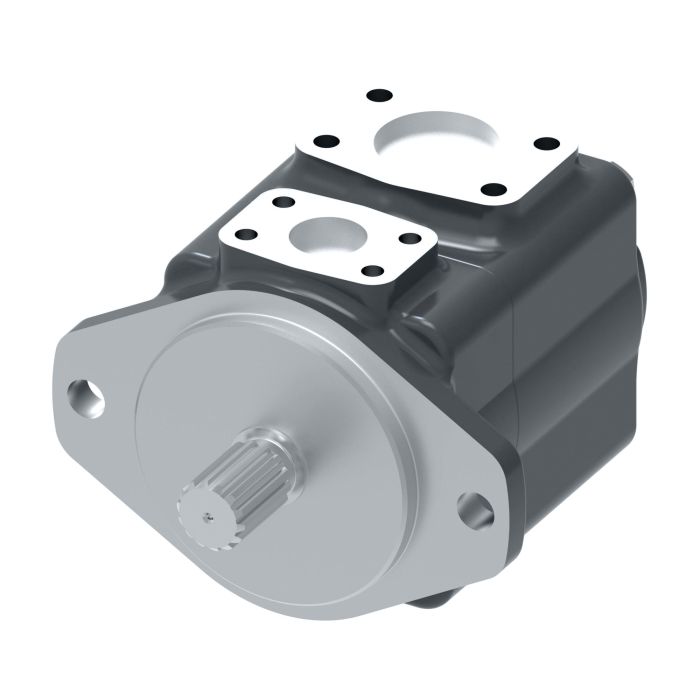

main product photo

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question

Description & Features

This Eaton Vickers 25VQ Series Vane Pump is designed for high-pressure, high-speed applications in demanding environments. It is commonly used in oil and gas, metal cutting, dump truck, wheel loader, and plastic injection molding machinery.

The 25VQ Series Vane Pump features a 14 ring size, a 13 Tooth SAE B splined shaft, and clockwise rotation. It provides outstanding volumetric efficiency and longer operating life. The SAE 4-bolt flange ports measure 1-1/2" for the inlet and 1" for the outlet. This model offers a maximum pressure rating of 3000 PSI and a speed rating of 2700 RPM.

SKU: 421472-3

Supplier Part Number (MPN): 421472-3

Alternate Part Numbers: 25VQ14A11C20, C1EH27

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.77
Displacement
2.77
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
21.50
Rated Flow
21.5
Ring Size
14
Ring Size
14
Rotation
CW
Seal Material
Buna-N
Series
25VQ
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
421472-3
Alternate Part Numbers
Alternate Part Number 25VQ14A11C20, Alternate Part Number C1EH27, Alternate Part Number MINO-00900H60362
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-1B20 25VQ Series Vane Pump

416457-2

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-1C20 25VQ Series Vane Pump

416457-3

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-1D20 25VQ Series Vane Pump

416457-4

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-1A20 25VQ Series Vane Pump

416457-5

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-1B20-L 25VQ Series Vane Pump

416457-6

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-1C20-L 25VQ Series Vane Pump

416457-7

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-1D20-L 25VQ Series Vane Pump

416457-8

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-1B20 25VQ Series Vane Pump

417992-2

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-1C20 25VQ Series Vane Pump

417992-3

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-1D20- 25VQ Series Vane Pump

417992-4

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-1A20-L 25VQ Series Vane Pump

417992-5

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-1B20-L 25VQ Series Vane Pump

417992-6

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-1C20-L 25VQ Series Vane Pump

417992-7

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-1D20-L 25VQ Series Vane Pump

417992-8

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-1B20 25VQ Series Vane Pump

417993-2

7/8 Straight Keyed

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-1C20 25VQ Series Vane Pump

417993-3

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-1D20 25VQ Series Vane Pump

417993-4

7/8 Straight Keyed

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-1A20-L 25VQ Series Vane Pump

417993-5

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-1C20-L 25VQ Series Vane Pump

417993-7

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-1B20 25VQ Series Vane Pump

417994-2

7/8 Straight Keyed

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-1C20 25VQ Series Vane Pump

417994-3

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-1D20 25VQ Series Vane Pump

417994-4

7/8 Straight Keyed

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-1A20-L 25VQ Series Vane Pump

417994-5

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-1C20-L 25VQ Series Vane Pump

417994-7

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-11B20 25VQ Series Vane Pump

421472-2

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-11C20 25VQ Series Vane Pump

421472-3

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-11D20 25VQ Series Vane Pump

421472-4

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-11A20-L 25VQ Series Vane Pump

421472-5

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ14A-11B20-L 25VQ Series Vane Pump

421472-6

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-11C20-L 25VQ Series Vane Pump

421472-7

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ14A-11D20-L 25VQ Series Vane Pump

421472-8

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-11B20 25VQ Series Vane Pump

421475-2

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-11C20 25VQ Series Vane Pump

421475-3

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-11D20 25VQ Series Vane Pump

421475-4

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-11A20-L 25VQ Series Vane Pump

421475-5

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-11B20-L 25VQ Series Vane Pump

421475-6

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-11C20-L 25VQ Series Vane Pump

421475-7

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-11D20-L 25VQ Series Vane Pump

421475-8

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-11B20 25VQ Series Vane Pump

421477-2

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-11C20 25VQ Series Vane Pump

421477-3

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-11D20 25VQ Series Vane Pump

421477-4

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-11A20-L 25VQ Series Vane Pump

421477-5

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-11B20-L 25VQ Series Vane Pump

421477-6

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-11C20-L 25VQ Series Vane Pump

421477-7

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-11D20-L 25VQ Series Vane Pump

421477-8

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-11B20 25VQ Series Vane Pump

429946-2

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-11C20 25VQ Series Vane Pump

429946-3

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-11D20 25VQ Series Vane Pump

429946-4

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-11A20-L 25VQ Series Vane Pump

429946-5

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ12A-11B20-L 25VQ Series Vane Pump

429946-6

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-11C20-L 25VQ Series Vane Pump

429946-7

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ12A-11D20-L 25VQ Series Vane Pump

429946-8

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-1B20 25VQ Series Vane Pump

578308-2

7/8 Straight Keyed

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-1C20 25VQ Series Vane Pump

578308-3

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-1D20 25VQ Series Vane Pump

578308-4

7/8 Straight Keyed

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-1A20-L 25VQ Series Vane Pump

578308-5

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-1C20 -L 25VQ Series Vane Pump

578308-7

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-11B20 25VQ Series Vane Pump

629379-2

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-11C20 25VQ Series Vane Pump

629379-3

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-11D20 25VQ Series Vane Pump

629379-4

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-11A20-L 25VQ Series Vane Pump

629379-5

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-11C20-L 25VQ Series Vane Pump

629379-7

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-1A20-L 25VQ Series Vane Pump

416457-1

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-1A20 25VQ Series Vane Pump

417992-1

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-1A20 25VQ Series Vane Pump

417993-1

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-1A20 25VQ Series Vane Pump

417994-1

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-11A20 25VQ Series Vane Pump

421472-1

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-11A20 25VQ Series Vane Pump

421475-1

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-11A20 25VQ Series Vane Pump

421477-1

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-11A20 25VQ Series Vane Pump

429946-1

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-1A20 25VQ Series Vane Pump

578308-1

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-11A20 25VQ Series Vane Pump

629379-1

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (2)

Question by: Brent P on Jun 9, 2025, 2:44 PM
Will this here pump work on my dump truck?
Answer by: Customer Support on Jun 11, 2025, 6:12 AM
It's applicable to dump trucks, according to the product details. It's also used in oil and gas, metal cutting, wheel loaders, and plastic injection molding applications.
Question by: Neal C on Aug 20, 2025, 5:08 PM
pump rated for continuous duty or is there a cycle time I need to worry about?
Answer by: Customer Support on Aug 21, 2025, 7:19 PM
At 2700 RPM max speed and 3000 PSI max pressure, this is built for demanding industrial work. Applications like metal cutting and plastic injection molding run these pretty hard, and the 25VQ series is known for holding up in those environments. That said, running any vane pump at its absolute limits around the clock will wear it faster than moderate-duty cycles. Keep your operating conditions within the rated specs and you'll get solid service life out of it.
