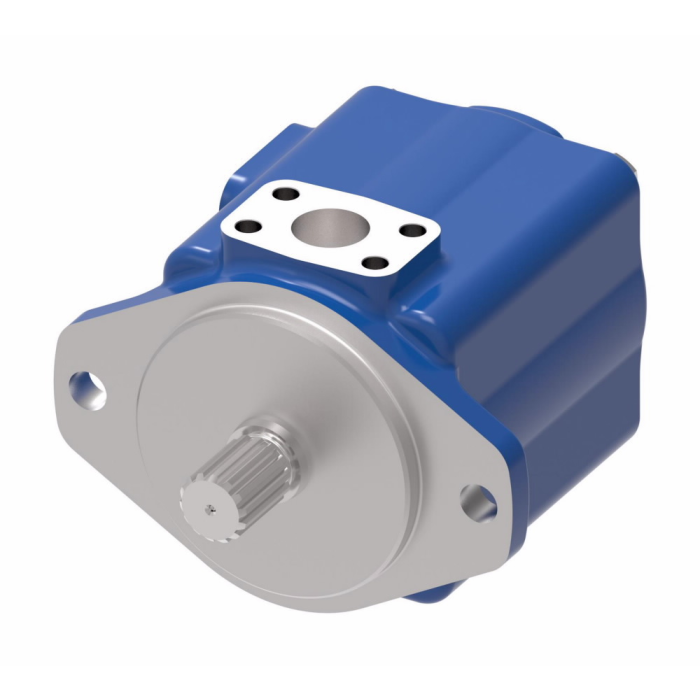

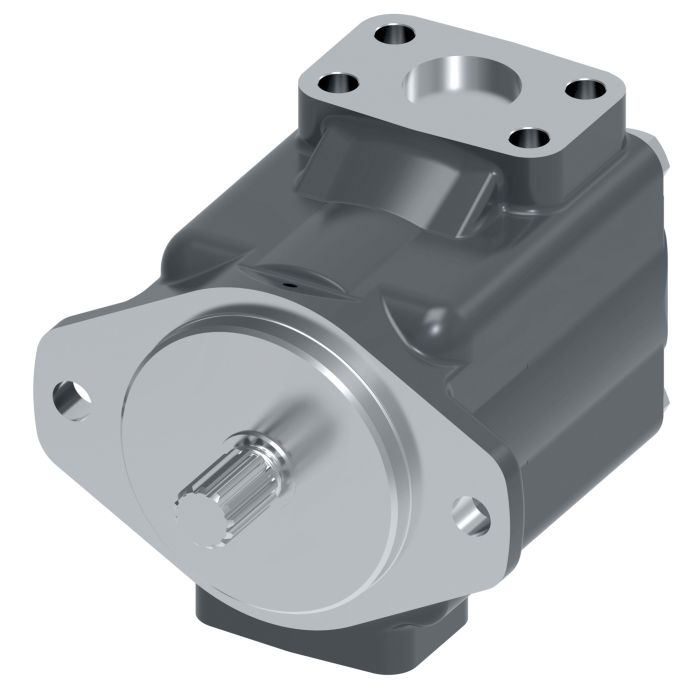

main product photo

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

Ask A Question

Description & Features

Designed for demanding industrial applications, the Eaton Vickers 25VQ Series Vane Pump is ideal for use in oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding. This robust pump features a 14 ring size and a 13 tooth SAE B splined shaft, ensuring reliable performance in high-pressure and high-speed environments.

Offering outstanding volumetric efficiency and a longer operating life, this pump is built to handle a maximum pressure of 3000 PSI and a speed rating of 2700 RPM. Its 2-bolt SAE B mounting flange and SAE 4-bolt flange ports with 1-1/2" inlet and 1" outlet provide easy installation and flexibility in various setups. With counterclockwise rotation and an outlet positioned opposite the inlet, this pump delivers consistent performance across diverse applications.

SKU: 421472-5

Supplier Part Number (MPN): 421472-5

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
2.77
Displacement
2.77
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
Opposite Outlet
Rated Flow
21.50
Rated Flow
21.5
Ring Size
14
Ring Size
14
Rotation
CCW
Seal Material
None
Series
25VQ
Shaft
13 Tooth SAE B Splined
Shaft
13 Tooth SAE B Splined
Special Features
None
Speed Rating
2700 RPM
Speed Rating
2700 RPM
Supplier Part Number
421472-5
Alternate Part Numbers
Alternate Part Number MINO-00900X10819
Product Weight
32.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-1B20 25VQ Series Vane Pump

416457-2

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-1C20 25VQ Series Vane Pump

416457-3

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-1D20 25VQ Series Vane Pump

416457-4

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-1A20 25VQ Series Vane Pump

416457-5

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-1B20-L 25VQ Series Vane Pump

416457-6

7/8 Straight Keyed

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-1C20-L 25VQ Series Vane Pump

416457-7

7/8 Straight Keyed

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-1D20-L 25VQ Series Vane Pump

416457-8

7/8 Straight Keyed

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-1B20 25VQ Series Vane Pump

417992-2

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-1C20 25VQ Series Vane Pump

417992-3

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-1D20- 25VQ Series Vane Pump

417992-4

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-1A20-L 25VQ Series Vane Pump

417992-5

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-1B20-L 25VQ Series Vane Pump

417992-6

7/8 Straight Keyed

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-1C20-L 25VQ Series Vane Pump

417992-7

7/8 Straight Keyed

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-1D20-L 25VQ Series Vane Pump

417992-8

7/8 Straight Keyed

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-1B20 25VQ Series Vane Pump

417993-2

7/8 Straight Keyed

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-1C20 25VQ Series Vane Pump

417993-3

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-1D20 25VQ Series Vane Pump

417993-4

7/8 Straight Keyed

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-1A20-L 25VQ Series Vane Pump

417993-5

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-1C20-L 25VQ Series Vane Pump

417993-7

7/8 Straight Keyed

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-1B20 25VQ Series Vane Pump

417994-2

7/8 Straight Keyed

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-1C20 25VQ Series Vane Pump

417994-3

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-1D20 25VQ Series Vane Pump

417994-4

7/8 Straight Keyed

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-1A20-L 25VQ Series Vane Pump

417994-5

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-1C20-L 25VQ Series Vane Pump

417994-7

7/8 Straight Keyed

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ14A-11B20 25VQ Series Vane Pump

421472-2

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ14A-11C20 25VQ Series Vane Pump

421472-3

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ14A-11D20 25VQ Series Vane Pump

421472-4

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ14A-11A20-L 25VQ Series Vane Pump

421472-5

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ14A-11B20-L 25VQ Series Vane Pump

421472-6

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ14A-11C20-L 25VQ Series Vane Pump

421472-7

13 Tooth SAE B Splined

2.77

14

21.5

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ14A-11D20-L 25VQ Series Vane Pump

421472-8

13 Tooth SAE B Splined

2.77

14

21.5

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ17A-11B20 25VQ Series Vane Pump

421475-2

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ17A-11C20 25VQ Series Vane Pump

421475-3

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ17A-11D20 25VQ Series Vane Pump

421475-4

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ17A-11A20-L 25VQ Series Vane Pump

421475-5

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ17A-11B20-L 25VQ Series Vane Pump

421475-6

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ17A-11C20-L 25VQ Series Vane Pump

421475-7

13 Tooth SAE B Splined

3.37

17

25.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ17A-11D20-L 25VQ Series Vane Pump

421475-8

13 Tooth SAE B Splined

3.37

17

25.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ21A-11B20 25VQ Series Vane Pump

421477-2

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ21A-11C20 25VQ Series Vane Pump

421477-3

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ21A-11D20 25VQ Series Vane Pump

421477-4

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-11A20-L 25VQ Series Vane Pump

421477-5

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ21A-11B20-L 25VQ Series Vane Pump

421477-6

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ21A-11C20-L 25VQ Series Vane Pump

421477-7

13 Tooth SAE B Splined

4.12

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ21A-11D20-L 25VQ Series Vane Pump

421477-8

13 Tooth SAE B Splined

4.12

21

31.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ12A-11B20 25VQ Series Vane Pump

429946-2

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ12A-11C20 25VQ Series Vane Pump

429946-3

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ12A-11D20 25VQ Series Vane Pump

429946-4

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ12A-11A20-L 25VQ Series Vane Pump

429946-5

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

25VQ12A-11B20-L 25VQ Series Vane Pump

429946-6

13 Tooth SAE B Splined

2.45

12

18

90 deg CW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ12A-11C20-L 25VQ Series Vane Pump

429946-7

13 Tooth SAE B Splined

2.45

12

18

in-Line with Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

25VQ12A-11D20-L 25VQ Series Vane Pump

429946-8

13 Tooth SAE B Splined

2.45

12

18

90 deg CCW from Outlet

CCW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-1B20 25VQ Series Vane Pump

578308-2

7/8 Straight Keyed

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-1C20 25VQ Series Vane Pump

578308-3

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-1D20 25VQ Series Vane Pump

578308-4

7/8 Straight Keyed

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-1A20-L 25VQ Series Vane Pump

578308-5

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-1C20 -L 25VQ Series Vane Pump

578308-7

7/8 Straight Keyed

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

25VQ19A-11B20 25VQ Series Vane Pump

629379-2

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

25VQ19A-11C20 25VQ Series Vane Pump

629379-3

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

25VQ19A-11D20 25VQ Series Vane Pump

629379-4

13 Tooth SAE B Splined

3.74

19

28.5

90 deg CCW from Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ19A-11A20-L 25VQ Series Vane Pump

629379-5

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

25VQ19A-11C20-L 25VQ Series Vane Pump

629379-7

13 Tooth SAE B Splined

3.74

19

28.5

in-Line with Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

25VQ21A-1A20-L 25VQ Series Vane Pump

416457-1

7/8 Straight Keyed

4.12

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

25VQ Series Vane Pump, 17 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-1A20 25VQ Series Vane Pump

417992-1

7/8 Straight Keyed

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 14 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-1A20 25VQ Series Vane Pump

417993-1

7/8 Straight Keyed

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 12 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-1A20 25VQ Series Vane Pump

417994-1

7/8 Straight Keyed

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 14 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ14A-11A20 25VQ Series Vane Pump

421472-1

13 Tooth SAE B Splined

2.77

14

21.5

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 17 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ17A-11A20 25VQ Series Vane Pump

421475-1

13 Tooth SAE B Splined

3.37

17

25.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ21A-11A20 25VQ Series Vane Pump

421477-1

13 Tooth SAE B Splined

4.12

21

31.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ12A-11A20 25VQ Series Vane Pump

429946-1

13 Tooth SAE B Splined

2.45

12

18

Opposite Outlet

CW

3000

2700 RPM

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-1A20 25VQ Series Vane Pump

578308-1

7/8 Straight Keyed

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

25VQ Series Vane Pump, 19 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

25VQ19A-11A20 25VQ Series Vane Pump

629379-1

13 Tooth SAE B Splined

3.74

19

28.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (2)

Question by: Ronnie M on Mar 18, 2026, 2:19 PM
got a pump that needs to run counterclockwise, is this one actually set up for CCW rotation?
Answer by: Customer Support on Mar 20, 2026, 10:48 AM
Rotation is specified as CCW on this 25VQ series pump, so it matches a counterclockwise rotation requirement.
Question by: Neal P on Jul 15, 2025, 7:25 AM
Will this pump bolt right up to a standard SAE B mount?
Answer by: Customer Support on Jul 16, 2025, 8:08 PM
It uses a 2-bolt SAE B mounting flange. You'll want to double-check your existing setup to make sure the bolt pattern matches.
