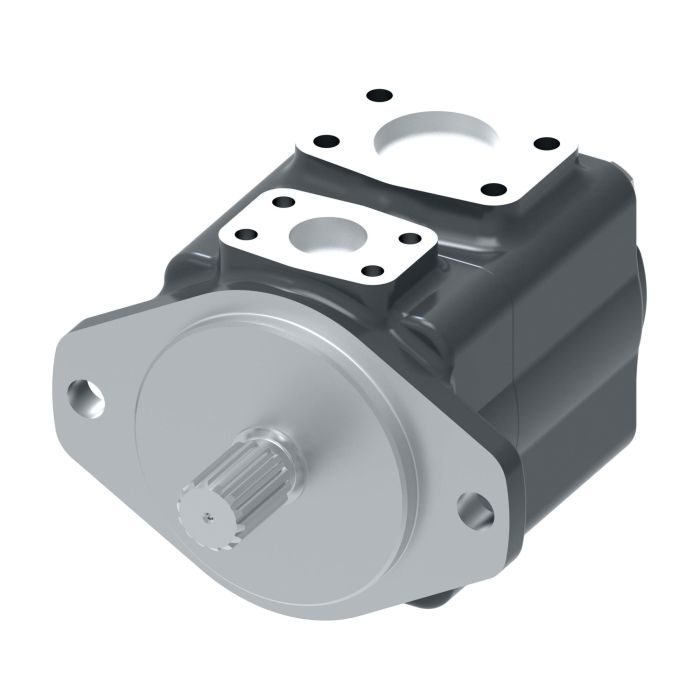

25VQ Series Vane Pump, 21 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Description & Features

Built for high-pressure and high-speed applications the Eaton Vickers VQ(H) Series Vane Pumps are designed to provide outstanding volumetric efficiency. The pump features a 21 ring size and a 13 tooth SAE B splined shaft. It is equipped with a 2-bolt SAE B mounting flange and SAE 4-bolt flange ports including a 1-1/2" inlet and 1" outlet.

The pump's rotation is clockwise (CW) and it supports a displacement of 4.12. Engineered to cater to industries such as oil and gas metal cutting dump trucks wheel loaders and plastic injection molding these pumps ensure a reliable and longer operating life.

The maximum pressure rating is set at 3000 with a speed rating of 2500 RPM. The port location is in-line with the outlet providing seamless integration into your applications.

MPN: 25VQ21A-11C20

Supplier Part Number: 421477-3

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 4.12	Displacement 4.12	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location in-Line with Outlet	Rated Flow 31.50	Rated Flow 31.5	Ring Size 21	Ring Size 21	Rotation CW	Seal Material Buna-N	Series 25VQ	Shaft 13 Tooth SAE B Splined	Shaft 13 Tooth SAE B Splined	Special Features None	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 421477-3	Alternate Part Numbers Alternate Part Number 25VQ21A11C20, Alternate Part Number C1BP80, Alternate Part Number MINO-00900H60384	Product Weight 32.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
25VQ21A-1B20 25VQ Series Vane Pump	416457-2	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-1C20 25VQ Series Vane Pump	416457-3	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-1D20 25VQ Series Vane Pump	416457-4	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-1A20 25VQ Series Vane Pump	416457-5	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-1B20-L 25VQ Series Vane Pump	416457-6	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-1C20-L 25VQ Series Vane Pump	416457-7	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1D20-L 25VQ Series Vane Pump	416457-8	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ17A-1B20 25VQ Series Vane Pump	417992-2	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-1C20 25VQ Series Vane Pump	417992-3	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-1D20- 25VQ Series Vane Pump	417992-4	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-1A20-L 25VQ Series Vane Pump	417992-5	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1B20-L 25VQ Series Vane Pump	417992-6	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-1C20-L 25VQ Series Vane Pump	417992-7	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-1D20-L 25VQ Series Vane Pump	417992-8	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ14A-1B20 25VQ Series Vane Pump	417993-2	7/8 Straight Keyed	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-1C20 25VQ Series Vane Pump	417993-3	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-1D20 25VQ Series Vane Pump	417993-4	7/8 Straight Keyed	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-1A20-L 25VQ Series Vane Pump	417993-5	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-1C20-L 25VQ Series Vane Pump	417993-7	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-1B20 25VQ Series Vane Pump	417994-2	7/8 Straight Keyed	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-1C20 25VQ Series Vane Pump	417994-3	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-1D20 25VQ Series Vane Pump	417994-4	7/8 Straight Keyed	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-1A20-L 25VQ Series Vane Pump	417994-5	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-1C20-L 25VQ Series Vane Pump	417994-7	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11B20 25VQ Series Vane Pump	421472-2	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-11C20 25VQ Series Vane Pump	421472-3	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-11D20 25VQ Series Vane Pump	421472-4	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-11A20-L 25VQ Series Vane Pump	421472-5	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-11B20-L 25VQ Series Vane Pump	421472-6	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ14A-11C20-L 25VQ Series Vane Pump	421472-7	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11D20-L 25VQ Series Vane Pump	421472-8	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ17A-11B20 25VQ Series Vane Pump	421475-2	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-11C20 25VQ Series Vane Pump	421475-3	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-11D20 25VQ Series Vane Pump	421475-4	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-11A20-L 25VQ Series Vane Pump	421475-5	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-11B20-L 25VQ Series Vane Pump	421475-6	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-11C20-L 25VQ Series Vane Pump	421475-7	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-11D20-L 25VQ Series Vane Pump	421475-8	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ21A-11B20 25VQ Series Vane Pump	421477-2	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-11C20 25VQ Series Vane Pump	421477-3	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-11D20 25VQ Series Vane Pump	421477-4	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-11A20-L 25VQ Series Vane Pump	421477-5	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ21A-11B20-L 25VQ Series Vane Pump	421477-6	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-11C20-L 25VQ Series Vane Pump	421477-7	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-11D20-L 25VQ Series Vane Pump	421477-8	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ12A-11B20 25VQ Series Vane Pump	429946-2	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-11C20 25VQ Series Vane Pump	429946-3	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-11D20 25VQ Series Vane Pump	429946-4	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-11A20-L 25VQ Series Vane Pump	429946-5	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-11B20-L 25VQ Series Vane Pump	429946-6	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ12A-11C20-L 25VQ Series Vane Pump	429946-7	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-11D20-L 25VQ Series Vane Pump	429946-8	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ19A-1B20 25VQ Series Vane Pump	578308-2	7/8 Straight Keyed	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-1C20 25VQ Series Vane Pump	578308-3	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-1D20 25VQ Series Vane Pump	578308-4	7/8 Straight Keyed	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-1A20-L 25VQ Series Vane Pump	578308-5	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-1C20 -L 25VQ Series Vane Pump	578308-7	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ19A-11B20 25VQ Series Vane Pump	629379-2	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-11C20 25VQ Series Vane Pump	629379-3	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-11D20 25VQ Series Vane Pump	629379-4	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-11A20-L 25VQ Series Vane Pump	629379-5	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-11C20-L 25VQ Series Vane Pump	629379-7	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1A20-L 25VQ Series Vane Pump	416457-1	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1A20 25VQ Series Vane Pump	417992-1	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ14A-1A20 25VQ Series Vane Pump	417993-1	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ12A-1A20 25VQ Series Vane Pump	417994-1	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ14A-11A20 25VQ Series Vane Pump	421472-1	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ17A-11A20 25VQ Series Vane Pump	421475-1	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-11A20 25VQ Series Vane Pump	421477-1	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ12A-11A20 25VQ Series Vane Pump	429946-1	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ19A-1A20 25VQ Series Vane Pump	578308-1	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM
25VQ19A-11A20 25VQ Series Vane Pump	629379-1	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (3)

Question by: Cody H on Dec 12, 2025, 2:35 PM

got a machine set up for a 2-bolt SAE B mount. will this pump bolt right up and are the ports the flange style ones?

Answer by: Customer Support on Dec 13, 2025, 9:34 PM

It uses a 2-bolt SAE B mounting flange and it comes with SAE 4-bolt flange ports. Port sizes are 1-1/2 inch inlet and 1 inch outlet, so it matches that flange-port style setup.

Question by: Hugh C on Nov 21, 2025, 6:08 PM

pump puts out 31.5 GPM at what pressure, and is that continuous or just peak?

Answer by: Customer Support on Nov 23, 2025, 5:45 PM

Rated flow on this unit is 31.5 GPM, and the maximum pressure rating is 3000 PSI. That 3000 figure is the rated ceiling for the pump, not a sustained operating target. For most industrial setups, running comfortably below that ceiling is what gets you the longer service life Eaton Vickers built this series around.

Question by: Dale W on May 8, 2025, 7:37 PM

What kind of machines does this vane pump usually go in?

Answer by: Customer Support on May 10, 2025, 3:50 PM

This pump is frequently used in applications like oil and gas equipment, metal cutting machinery, dump trucks, wheel loaders, and plastic injection molding systems.
