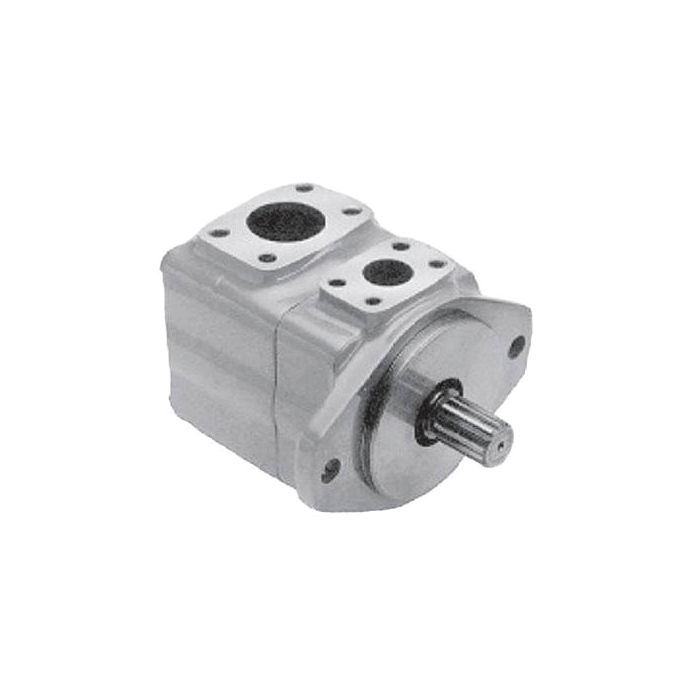

25VQ Series Vane Pump, 12 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CW Rotation

Description & Features

Designed for high-pressure, high-speed applications, the Eaton Vickers 25VQ Series Vane Pump offers exceptional performance and durability. Featuring a 12 ring size and a 13 tooth SAE B splined shaft, this single vane pump is ideal for demanding environments such as plastics machinery, press machines, and die casting. With its clockwise rotation and outlet opposite design, it ensures efficient fluid management in marine, oil & gas, and general industrial applications.

The pump's construction includes a 2-bolt SAE B mounting flange and SAE 4-bolt flange ports with a 1-1/2" inlet and a 1" outlet. Its maximum pressure rating of 3000 PSI and a speed rating of 2700 RPM highlight its robust capabilities. Built with Buna-N seal material, this vane pump promises longer operating life and outstanding volumetric efficiency, making it a reliable choice for machine tools, test equipment, and wood processing industries.

SKU: 429946-1

Supplier Part Number (MPN): 429946-1

Specifications

Application Plastics Machinery, Press Machine, Die Casting, Machine Tools, Test Equipment, Primary Metal, Pulp & Paper, Wood Processing, Oil & Gas, Marine, and General Industrial	Displacement 2.45	Displacement 2.45	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location Opposite Outlet	Rated Flow 18	Rated Flow 18	Ring Size 12	Ring Size 12	Rotation CW	Seal Material Buna-N	Series 25VQ	Shaft 13 Tooth SAE B Splined	Shaft 13 Tooth SAE B Splined	Special Features None	Speed Rating 2700 RPM	Speed Rating 2700 RPM	Supplier Part Number 429946-1	Product Weight 32.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
25VQ21A-1B20 25VQ Series Vane Pump	416457-2	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-1C20 25VQ Series Vane Pump	416457-3	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-1D20 25VQ Series Vane Pump	416457-4	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-1A20 25VQ Series Vane Pump	416457-5	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-1B20-L 25VQ Series Vane Pump	416457-6	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-1C20-L 25VQ Series Vane Pump	416457-7	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1D20-L 25VQ Series Vane Pump	416457-8	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ17A-1B20 25VQ Series Vane Pump	417992-2	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-1C20 25VQ Series Vane Pump	417992-3	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-1D20- 25VQ Series Vane Pump	417992-4	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-1A20-L 25VQ Series Vane Pump	417992-5	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1B20-L 25VQ Series Vane Pump	417992-6	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-1C20-L 25VQ Series Vane Pump	417992-7	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-1D20-L 25VQ Series Vane Pump	417992-8	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ14A-1B20 25VQ Series Vane Pump	417993-2	7/8 Straight Keyed	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-1C20 25VQ Series Vane Pump	417993-3	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-1D20 25VQ Series Vane Pump	417993-4	7/8 Straight Keyed	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-1A20-L 25VQ Series Vane Pump	417993-5	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-1C20-L 25VQ Series Vane Pump	417993-7	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-1B20 25VQ Series Vane Pump	417994-2	7/8 Straight Keyed	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-1C20 25VQ Series Vane Pump	417994-3	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-1D20 25VQ Series Vane Pump	417994-4	7/8 Straight Keyed	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-1A20-L 25VQ Series Vane Pump	417994-5	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-1C20-L 25VQ Series Vane Pump	417994-7	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11B20 25VQ Series Vane Pump	421472-2	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-11C20 25VQ Series Vane Pump	421472-3	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-11D20 25VQ Series Vane Pump	421472-4	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-11A20-L 25VQ Series Vane Pump	421472-5	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-11B20-L 25VQ Series Vane Pump	421472-6	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ14A-11C20-L 25VQ Series Vane Pump	421472-7	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11D20-L 25VQ Series Vane Pump	421472-8	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ17A-11B20 25VQ Series Vane Pump	421475-2	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-11C20 25VQ Series Vane Pump	421475-3	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-11D20 25VQ Series Vane Pump	421475-4	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-11A20-L 25VQ Series Vane Pump	421475-5	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-11B20-L 25VQ Series Vane Pump	421475-6	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-11C20-L 25VQ Series Vane Pump	421475-7	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-11D20-L 25VQ Series Vane Pump	421475-8	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ21A-11B20 25VQ Series Vane Pump	421477-2	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-11C20 25VQ Series Vane Pump	421477-3	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-11D20 25VQ Series Vane Pump	421477-4	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-11A20-L 25VQ Series Vane Pump	421477-5	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ21A-11B20-L 25VQ Series Vane Pump	421477-6	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-11C20-L 25VQ Series Vane Pump	421477-7	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-11D20-L 25VQ Series Vane Pump	421477-8	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ12A-11B20 25VQ Series Vane Pump	429946-2	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-11C20 25VQ Series Vane Pump	429946-3	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-11D20 25VQ Series Vane Pump	429946-4	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-11A20-L 25VQ Series Vane Pump	429946-5	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-11B20-L 25VQ Series Vane Pump	429946-6	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ12A-11C20-L 25VQ Series Vane Pump	429946-7	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-11D20-L 25VQ Series Vane Pump	429946-8	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ19A-1B20 25VQ Series Vane Pump	578308-2	7/8 Straight Keyed	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-1C20 25VQ Series Vane Pump	578308-3	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-1D20 25VQ Series Vane Pump	578308-4	7/8 Straight Keyed	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-1A20-L 25VQ Series Vane Pump	578308-5	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-1C20 -L 25VQ Series Vane Pump	578308-7	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ19A-11B20 25VQ Series Vane Pump	629379-2	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-11C20 25VQ Series Vane Pump	629379-3	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-11D20 25VQ Series Vane Pump	629379-4	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-11A20-L 25VQ Series Vane Pump	629379-5	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-11C20-L 25VQ Series Vane Pump	629379-7	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1A20-L 25VQ Series Vane Pump	416457-1	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1A20 25VQ Series Vane Pump	417992-1	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ14A-1A20 25VQ Series Vane Pump	417993-1	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ12A-1A20 25VQ Series Vane Pump	417994-1	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ14A-11A20 25VQ Series Vane Pump	421472-1	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ17A-11A20 25VQ Series Vane Pump	421475-1	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-11A20 25VQ Series Vane Pump	421477-1	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ12A-11A20 25VQ Series Vane Pump	429946-1	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ19A-1A20 25VQ Series Vane Pump	578308-1	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM
25VQ19A-11A20 25VQ Series Vane Pump	629379-1	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (3)

Question by: Denise H on Nov 6, 2025, 9:54 PM

Reckon this pump'll hold up to runnin' pretty much all day in a plastic injection moldin' setup?

Answer by: Customer Support on Nov 8, 2025, 9:24 PM

Built for high-pressure, high-speed applications, this Eaton Vickers 25VQ series vane pump is well-suited for demanding environments like plastics machinery.

Question by: Howard F on Mar 16, 2026, 6:44 AM

Running a press machine that needs somewhere around 18 GPM and can't go over 3000 PSI, this pump rated to handle that kind of load steady?

Answer by: Customer Support on Mar 17, 2026, 9:52 PM

At 18 GPM rated flow and a 3000 PSI maximum pressure rating, this pump lines up directly with those requirements. The 25VQ series was built for high-pressure, high-speed environments, and press machine applications are specifically listed among its intended uses. The Buna-N seals and overall construction are aimed at longer service life under that kind of demand, so you're not pushing it into territory it wasn't meant for.

Question by: Janice S on Mar 2, 2026, 7:34 AM

trying to replace a single vane pump on a press, what all do i need to match up on this 25VQ one

Answer by: Customer Support on Mar 3, 2026, 1:57 PM

You will want to match the key mounting and connection points: it uses a 2-bolt SAE B mounting flange, a 13 tooth SAE B splined shaft, and SAE 4-bolt flange ports with a 1-1/2 inch inlet and a 1 inch outlet. Rotation and port orientation also matter on this model since it is clockwise rotation with the outlet opposite arrangement.
