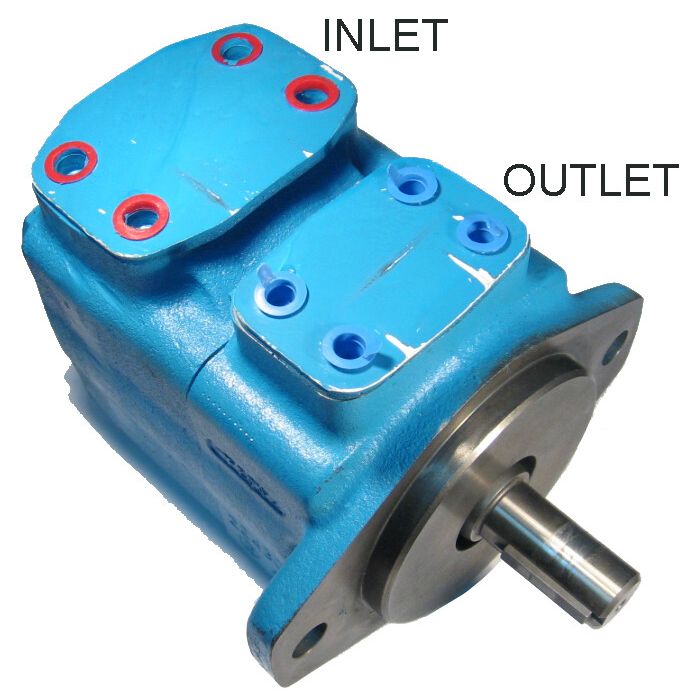

25VQ Series Vane Pump, 19 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Description & Features

Optimized for demanding industrial applications, the 25VQ Series Vane Pump stands out with its robust design and exceptional performance. With a 19 ring size and a 7/8" straight keyed shaft, this pump is engineered for high-pressure, high-speed scenarios, delivering outstanding volumetric efficiency. The pump's clockwise rotation and outlet opposite outlet configuration make it ideal for diverse settings, including oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.

Built to withstand a maximum pressure of 3000 PSI and a speed rating of 2500 RPM, it features a durable Buna-N seal material and a 2-bolt SAE B mounting flange. The Eaton Vickers brand ensures a longer operational life and reliability in performance. With inlet and outlet ports sized at 1-1/2" and 1" respectively, it is well-suited for various hydraulic systems.

SKU: 578308-1

Supplier Part Number (MPN): 578308-1

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 3.74	Displacement 3.74	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location Opposite Outlet	Rated Flow 28.50	Rated Flow 28.5	Ring Size 19	Ring Size 19	Rotation CW	Seal Material Buna-N	Series 25VQ	Shaft 7/8 Straight Keyed	Shaft 7/8 Straight Keyed	Special Features None	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 578308-1	Alternate Part Numbers Alternate Part Number MINO-00900H69925	Product Weight 32.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
25VQ21A-1B20 25VQ Series Vane Pump	416457-2	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-1C20 25VQ Series Vane Pump	416457-3	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-1D20 25VQ Series Vane Pump	416457-4	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-1A20 25VQ Series Vane Pump	416457-5	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-1B20-L 25VQ Series Vane Pump	416457-6	7/8 Straight Keyed	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-1C20-L 25VQ Series Vane Pump	416457-7	7/8 Straight Keyed	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1D20-L 25VQ Series Vane Pump	416457-8	7/8 Straight Keyed	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ17A-1B20 25VQ Series Vane Pump	417992-2	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-1C20 25VQ Series Vane Pump	417992-3	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-1D20- 25VQ Series Vane Pump	417992-4	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-1A20-L 25VQ Series Vane Pump	417992-5	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1B20-L 25VQ Series Vane Pump	417992-6	7/8 Straight Keyed	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-1C20-L 25VQ Series Vane Pump	417992-7	7/8 Straight Keyed	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-1D20-L 25VQ Series Vane Pump	417992-8	7/8 Straight Keyed	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ14A-1B20 25VQ Series Vane Pump	417993-2	7/8 Straight Keyed	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-1C20 25VQ Series Vane Pump	417993-3	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-1D20 25VQ Series Vane Pump	417993-4	7/8 Straight Keyed	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-1A20-L 25VQ Series Vane Pump	417993-5	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-1C20-L 25VQ Series Vane Pump	417993-7	7/8 Straight Keyed	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-1B20 25VQ Series Vane Pump	417994-2	7/8 Straight Keyed	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-1C20 25VQ Series Vane Pump	417994-3	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-1D20 25VQ Series Vane Pump	417994-4	7/8 Straight Keyed	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-1A20-L 25VQ Series Vane Pump	417994-5	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-1C20-L 25VQ Series Vane Pump	417994-7	7/8 Straight Keyed	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11B20 25VQ Series Vane Pump	421472-2	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ14A-11C20 25VQ Series Vane Pump	421472-3	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CW	3000	2700 RPM
25VQ14A-11D20 25VQ Series Vane Pump	421472-4	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ14A-11A20-L 25VQ Series Vane Pump	421472-5	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CCW	3000	2700 RPM
25VQ14A-11B20-L 25VQ Series Vane Pump	421472-6	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ14A-11C20-L 25VQ Series Vane Pump	421472-7	13 Tooth SAE B Splined	2.77	14	21.5	in-Line with Outlet	CCW	3000	2700 RPM
25VQ14A-11D20-L 25VQ Series Vane Pump	421472-8	13 Tooth SAE B Splined	2.77	14	21.5	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ17A-11B20 25VQ Series Vane Pump	421475-2	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ17A-11C20 25VQ Series Vane Pump	421475-3	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ17A-11D20 25VQ Series Vane Pump	421475-4	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ17A-11A20-L 25VQ Series Vane Pump	421475-5	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-11B20-L 25VQ Series Vane Pump	421475-6	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ17A-11C20-L 25VQ Series Vane Pump	421475-7	13 Tooth SAE B Splined	3.37	17	25.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ17A-11D20-L 25VQ Series Vane Pump	421475-8	13 Tooth SAE B Splined	3.37	17	25.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ21A-11B20 25VQ Series Vane Pump	421477-2	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ21A-11C20 25VQ Series Vane Pump	421477-3	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ21A-11D20 25VQ Series Vane Pump	421477-4	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ21A-11A20-L 25VQ Series Vane Pump	421477-5	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ21A-11B20-L 25VQ Series Vane Pump	421477-6	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CW from Outlet	CCW	3000	2500 RPM
25VQ21A-11C20-L 25VQ Series Vane Pump	421477-7	13 Tooth SAE B Splined	4.12	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-11D20-L 25VQ Series Vane Pump	421477-8	13 Tooth SAE B Splined	4.12	21	31.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
25VQ12A-11B20 25VQ Series Vane Pump	429946-2	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CW	3000	2700 RPM
25VQ12A-11C20 25VQ Series Vane Pump	429946-3	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CW	3000	2700 RPM
25VQ12A-11D20 25VQ Series Vane Pump	429946-4	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CW	3000	2700 RPM
25VQ12A-11A20-L 25VQ Series Vane Pump	429946-5	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CCW	3000	2700 RPM
25VQ12A-11B20-L 25VQ Series Vane Pump	429946-6	13 Tooth SAE B Splined	2.45	12	18	90 deg CW from Outlet	CCW	3000	2700 RPM
25VQ12A-11C20-L 25VQ Series Vane Pump	429946-7	13 Tooth SAE B Splined	2.45	12	18	in-Line with Outlet	CCW	3000	2700 RPM
25VQ12A-11D20-L 25VQ Series Vane Pump	429946-8	13 Tooth SAE B Splined	2.45	12	18	90 deg CCW from Outlet	CCW	3000	2700 RPM
25VQ19A-1B20 25VQ Series Vane Pump	578308-2	7/8 Straight Keyed	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-1C20 25VQ Series Vane Pump	578308-3	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-1D20 25VQ Series Vane Pump	578308-4	7/8 Straight Keyed	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-1A20-L 25VQ Series Vane Pump	578308-5	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-1C20 -L 25VQ Series Vane Pump	578308-7	7/8 Straight Keyed	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ19A-11B20 25VQ Series Vane Pump	629379-2	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CW from Outlet	CW	3000	2500 RPM
25VQ19A-11C20 25VQ Series Vane Pump	629379-3	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CW	3000	2500 RPM
25VQ19A-11D20 25VQ Series Vane Pump	629379-4	13 Tooth SAE B Splined	3.74	19	28.5	90 deg CCW from Outlet	CW	3000	2500 RPM
25VQ19A-11A20-L 25VQ Series Vane Pump	629379-5	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ19A-11C20-L 25VQ Series Vane Pump	629379-7	13 Tooth SAE B Splined	3.74	19	28.5	in-Line with Outlet	CCW	3000	2500 RPM
25VQ21A-1A20-L 25VQ Series Vane Pump	416457-1	7/8 Straight Keyed	4.12	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
25VQ17A-1A20 25VQ Series Vane Pump	417992-1	7/8 Straight Keyed	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ14A-1A20 25VQ Series Vane Pump	417993-1	7/8 Straight Keyed	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ12A-1A20 25VQ Series Vane Pump	417994-1	7/8 Straight Keyed	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ14A-11A20 25VQ Series Vane Pump	421472-1	13 Tooth SAE B Splined	2.77	14	21.5	Opposite Outlet	CW	3000	2700 RPM
25VQ17A-11A20 25VQ Series Vane Pump	421475-1	13 Tooth SAE B Splined	3.37	17	25.5	Opposite Outlet	CW	3000	2500 RPM
25VQ21A-11A20 25VQ Series Vane Pump	421477-1	13 Tooth SAE B Splined	4.12	21	31.5	Opposite Outlet	CW	3000	2500 RPM
25VQ12A-11A20 25VQ Series Vane Pump	429946-1	13 Tooth SAE B Splined	2.45	12	18	Opposite Outlet	CW	3000	2700 RPM
25VQ19A-1A20 25VQ Series Vane Pump	578308-1	7/8 Straight Keyed	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM
25VQ19A-11A20 25VQ Series Vane Pump	629379-1	13 Tooth SAE B Splined	3.74	19	28.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (2)

Question by: Harvey R on Feb 6, 2026, 6:38 PM

got a setup that needs clockwise rotation and the outlet on the opposite side. is that how this 25VQ is built

Answer by: Customer Support on Feb 8, 2026, 5:03 PM

For orientation, this model is a CW rotation pump with the port location listed as opposite outlet, so it matches a clockwise drive and that opposite outlet layout.

Question by: Wade P on Jun 12, 2025, 8:21 PM

Running a dump truck operation and need to know if this pump can hold up at full pressure continuous, what's the max PSI this thing's rated for?

Answer by: Customer Support on Jun 14, 2025, 6:05 AM

Rated at 3000 PSI maximum, this pump is built with high-pressure, high-speed applications in mind, so dump truck use falls squarely in its intended range. The 25VQ series was specifically called out for dump truck applications, and with a speed rating up to 2500 RPM alongside that pressure ceiling, it handles demanding duty without being pushed outside its design envelope.
