06MJ-06MJ-04MP TEE

Description & Features

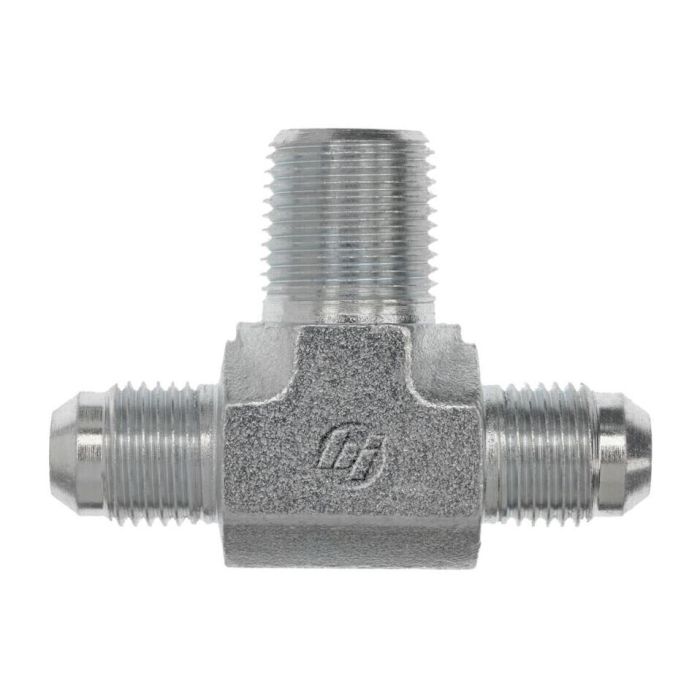

The 06MJ-06MJ-04MP Branch Tee Forged from Brennan Industries Inc is engineered for demanding applications. Fabricated from top-quality forged steel this tee fitting ensures durability and reliability. It features a male NPTF thread size of 1/4-18 and two male JIC SAE 37-degree flare threads offering versatile connection options adhering to SAE J476 and SAE J514 specifications.

Designed to operate under a maximum dynamic pressure of 6 000 PSI this branch tee is suitable for high-pressure environments. The centerline lengths of 1.060 mm for both sides and the overall length of up to 2.120 mm make it ideal for compact spaces. Additional threading dimensions include a drill size of 0.297 mm for B1 and B2 threads and 0.281 mm for the third thread.

The cubic inch space measures 1.633 highlighting its compact footprint. With a focus on quality and performance this product ensures seamless compatibility with industrial standards.

MPN: 2601-06-06-04-FG

Supplier Part Number: 2601-06-06-04-FG

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Connection Type 3 Male SAE NPTF	Cubic Inch Space L x W x H Dimensions 1.633 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 2.12 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 0.563 in	l2 Dimensions 1.09 in	l Dimensions 2.12 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2601-FG Series	Thread 2 Drill Dimensions 0.297 in	Thread 3 Drill Dimensions 0.281 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 1/4-18 x 9/16-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
2601-04-04-02-FG	1/4 in	1/4 in		1/8-27, 7/16-20	7/16 in
2601-04-04-04-FG	1/4 in	1/4 in		7/16-20, 1/4-18	0.563 in
2601-04-04-06	1/4 in	1/4 in	3/8 in	7/16-20 x 3/8-18	3/4 in
2601-05-05-02 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/8-27	0.563 in
2601-05-05-04 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/4-18	0.563 in
2601-06-06-02-FG	3/8 in	3/8 in		9/16-18 x 1/8-27	0.563 in
2601-06-06-06-FG	3/8 in	3/8 in	3/8 in	3/8-18, 9/16-18	3/4 in
2601-08-08-04-FG	1/2 in	1/2 in		3/4-16, 1/4-18	3/4 in
2601-08-08-06-FG	1/2 in	1/2 in	3/8 in	3/4-16 x 3/8-18	3/4 in
2601-08-08-08-FG	1/2 in	1/2 in	1/2 in	3/4-16 x 1/2-14	7/8 in
2601-10-10-06	5/8 in	5/8 in	3/8 in	7/8-14 x 3/8-18	7/8 in
2601-10-10-08-FG	5/8 in	5/8 in	1/2 in	1/2-14 x 7/8-14	7/8 in
2601-10-10-12-FG	5/8 in	5/8 in	3/4 in	3/4-14, 7/8-14	1.06 in
2601-12-12-12-FG	3/4 in	3/4 in	3/4 in	1-1/16-12 x 3/4-14	1.06 in
2601-16-16-16-FG	1 in	1 in		1-5/16-12 x 1-11-1/2 x 1-5/16-12	1.312 in
2601-20-20-20-FG	1-1/4 in	1-1/4 in		1-1/4-11-1/2, 1-5/8-12	1-5/8

Product Questions & Answers (3)

Question by: Wayne S on Sep 5, 2025, 12:31 PM

What's the max pressure this tee fitting can handle?

Answer by: Customer Support on Sep 7, 2025, 7:12 AM

This branch tee is rated for a maximum dynamic pressure of 6,000 PSI, so it's suitable for high-pressure hydraulic systems.

Question by: Peggy W on Aug 2, 2025, 9:36 PM

trying to hook two 6 JIC lines together and branch off to 1/4 NPTF, is that what this tee is set up for?

Answer by: Customer Support on Aug 4, 2025, 8:19 PM

For a branch setup like that, it matches what you described. The two run ports are male JIC 37 degree flare, 9/16-18 thread (SAE J514), and the branch port is male NPTF, 1/4-18 (SAE J476).

Question by: Johnny P on Mar 10, 2026, 6:44 PM

What's the pressure rating on this tee, and is it gonna hold up runnin hydraulic lines on heavy equipment?

Answer by: Customer Support on Mar 12, 2026, 4:54 PM

Six thousand PSI is the max dynamic pressure rating on this fitting. That puts it well within range for most heavy equipment hydraulic circuits. It's forged steel construction, so it's built to take the kind of continuous load you'd see in working machinery, not just occasional bursts.
