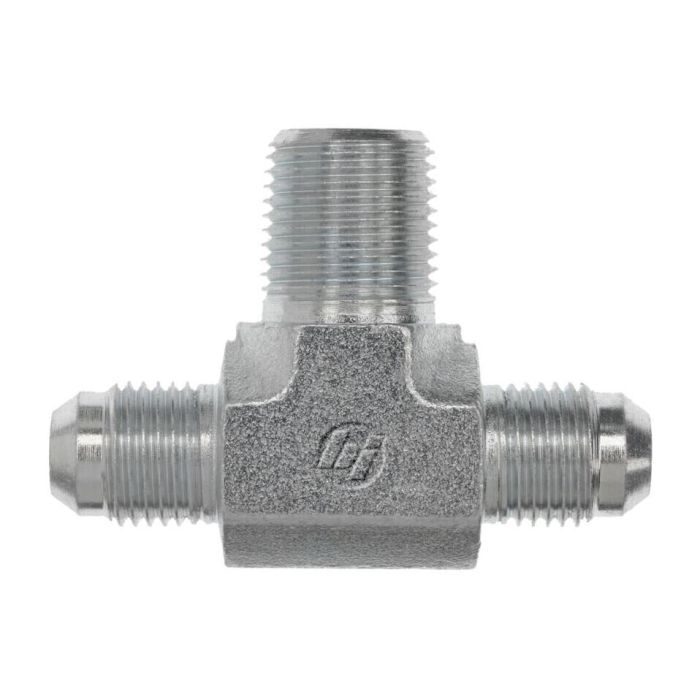

06MJ-06MJ-06MP TEE

Description & Features

Forged from steel and rated to 6,000 PSI dynamic pressure, this branch tee is built for demanding hydraulic line applications where a reliable three-port connection is required. The 06MJ-06MJ-06MP Tee features two male JIC SAE 37-degree flare ports (9/16-18, per SAE J514) and one male NPTF port (3/8-18, per SAE J476), making it well suited for mixed-thread hydraulic assemblies.

Manufactured by Brennan Industries under their 2601-FG forged series, the fitting provides a compact and rigid connection point with consistent thread geometry across all three ports. The forged steel construction offers strength and durability appropriate for high-pressure hydraulic circuits.

SKU: 2601-06-06-06-FG

Supplier Part Number (MPN): 2601-06-06-06-FG

Alternate Part Numbers: 2601-06-06-06, A2030-6-6S

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Size 3 3/8 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Connection Type 3 Male SAE NPTF	Cubic Inch Space L x W x H Dimensions 2.727 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 2.28 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 3/4 in	l2 Dimensions 1.22 in	l Dimensions 2.28 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2601-FG Series	Thread 2 Drill Dimensions 0.297 in	Thread 3 Drill Dimensions 0.406 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 3/8-18, 9/16-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
2601-04-04-02-FG	1/4 in	1/4 in		1/8-27, 7/16-20	7/16 in
2601-04-04-04-FG	1/4 in	1/4 in		7/16-20, 1/4-18	0.563 in
2601-04-04-06	1/4 in	1/4 in	3/8 in	7/16-20 x 3/8-18	3/4 in
2601-05-05-02 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/8-27	0.563 in
2601-05-05-04 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/4-18	0.563 in
2601-06-06-02-FG	3/8 in	3/8 in		9/16-18 x 1/8-27	0.563 in
2601-06-06-04-FG	3/8 in	3/8 in		1/4-18 x 9/16-18	0.563 in
2601-08-08-04-FG	1/2 in	1/2 in		3/4-16, 1/4-18	3/4 in
2601-08-08-06-FG	1/2 in	1/2 in	3/8 in	3/4-16 x 3/8-18	3/4 in
2601-08-08-08-FG	1/2 in	1/2 in	1/2 in	3/4-16 x 1/2-14	7/8 in
2601-10-10-06	5/8 in	5/8 in	3/8 in	7/8-14 x 3/8-18	7/8 in
2601-10-10-08-FG	5/8 in	5/8 in	1/2 in	1/2-14 x 7/8-14	7/8 in
2601-10-10-12-FG	5/8 in	5/8 in	3/4 in	3/4-14, 7/8-14	1.06 in
2601-12-12-12-FG	3/4 in	3/4 in	3/4 in	1-1/16-12 x 3/4-14	1.06 in
2601-16-16-16-FG	1 in	1 in		1-5/16-12 x 1-11-1/2 x 1-5/16-12	1.312 in
2601-20-20-20-FG	1-1/4 in	1-1/4 in		1-1/4-11-1/2, 1-5/8-12	1-5/8

Product Questions & Answers (2)

Question by: Patty H on Apr 1, 2026, 6:10 AM

trying to tie into a JIC line but my branch needs pipe thread. is that what this tee is for?

Answer by: Customer Support on Apr 3, 2026, 6:40 AM

For mixed-thread hookups, it gives you two male JIC 37 degree flare ports (9/16-18) and one male NPTF port (3/8-18), so you can keep the run in JIC and take the branch off in pipe thread.

Question by: Kurt M on Oct 30, 2025, 10:03 AM

got a mixed-thread assembly running JIC lines into an NPTF manifold port, does this tee handle both thread types in one fitting?

Answer by: Customer Support on Nov 1, 2025, 6:18 AM

That's what this one's built for. Two of the ports are male JIC SAE 37-degree flare, sized at 9/16-18 and spec'd to SAE J514. The third port is male NPTF at 3/8-18, per SAE J476. So you can branch off two JIC lines while tying into a straight pipe thread port all from a single fitting. Forged steel construction keeps it solid under load, and it's rated to 6,000 PSI dynamic pressure, so high-pressure hydraulic circuits aren't a problem.
