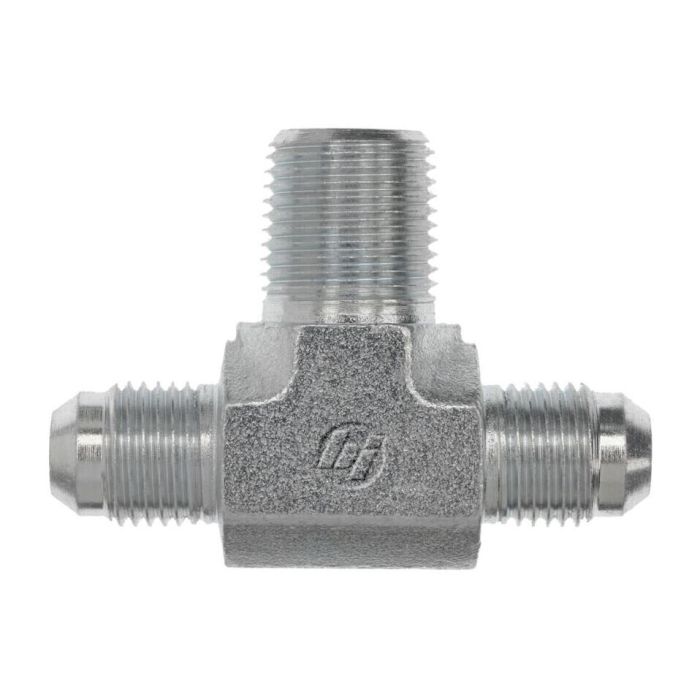

STEEL BRANCH TEE

Ask A Question

Description & Features

Forged from steel and rated to 6,000 PSI dynamic pressure, this Steel Branch Tee is built for demanding hydraulic line configurations where a reliable three-way split is required. The tee features dual 3/4-16 Male JIC SAE 37-degree flare connections (SAE J514) on the branch ports and a 1/4-18 Male NPTF port (SAE J476) on the run, making it well-suited for mixed-connection hydraulic circuits.

Forged steel construction provides consistent wall integrity and strength across the fitting body. With an overall length of 2.500 inches and centerline lengths of 1.250 inches on both branch axes, the fitting is compact enough for installation in space-constrained assemblies. Manufactured by Brennan Industries under the 2601-FG series, this fitting meets California Prop 65 requirements.

SKU: 2601-08-08-04-FG

Supplier Part Number (MPN): 2601-08-08-04-FG

Alternate Part Numbers: 2601-08-08-04, C1DW51

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.991 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.5 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
l2 Dimensions
1.22 in
l Dimensions
2.5 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2601-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16, 1/4-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Carl B on Feb 23, 2026, 11:19 AM
Will this branch tee hold up alright for hydraulic pressures around 5500 PSI?
Answer by: Customer Support on Feb 24, 2026, 7:17 PM
This steel branch tee is rated for dynamic pressures up to 6,000 PSI, so it should work fine in your application.
