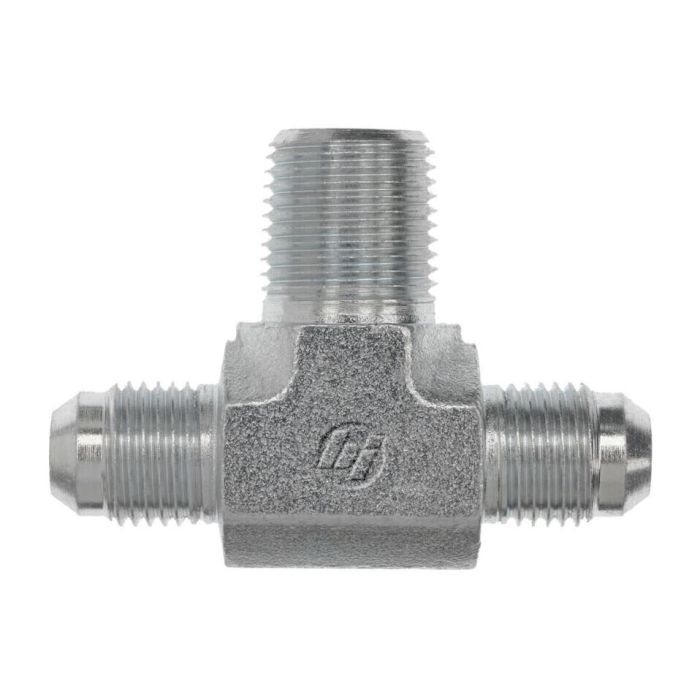

08MJ-08MJ-08MP TEE

Ask A Question

Description & Features

The 08MJ-08MJ-08MP TEE from Brennan Industries Inc is an essential component designed for high-pressure applications offering a maximum dynamic pressure of 6 000 psi. This branch tee is constructed from high-quality forged steel ensuring durability and reliability in demanding environments.

The tee features dual male JIC SAE 37-degree flare connections with thread sizes of 3/4-16 mm conforming to SAE J514 specifications and a single male NPTF connection with a thread size of 1/2-14 mm adhering to SAE J476 standards. The overall length of the tee is 2.660 mm with centerline measurements of 1.330 mm for both connections.

The compact design with a cubic inch space of 4.441 facilitates easy integration into various systems making it an ideal choice for industrial settings. The branch tee's robust construction and precise threading ensure a secure and leak-free connection.

MPN: 2601-08-08-08-FG

Supplier Part Number: 2601-08-08-08-FG

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.441 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.66 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.47 in
l Dimensions
2.66 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
2601-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread 3 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Tammy B on Nov 23, 2025, 11:32 AM
i’ve got two 3/4-16 JIC lines and need to tee in a 1/2-14 pipe thread port. Is that what this fitting is set up for?
Answer by: Customer Support on Nov 24, 2025, 3:14 PM
For tying two JIC flare connections into a single branch port, this tee matches that layout. It has two male JIC SAE 37 degree flare ends in 3/4-16 (SAE J514), plus one male NPTF end in 1/2-14 (SAE J476).
Question by: Lee F on Nov 8, 2025, 6:34 PM
What's the max pressure rating on this tee, and is it safe for high-demand hydraulic lines?
Answer by: Customer Support on Nov 10, 2025, 2:52 PM
Rated at 6,000 psi dynamic pressure, it holds up well in demanding hydraulic systems. The forged steel construction adds to that reliability, so it's not going to be a weak point in a high-pressure circuit as long as your line pressures stay within that range.
Question by: Hubert J on Mar 29, 2026, 12:52 PM
Will this tee handle hydraulic fluid okay at that max pressure listed?
Answer by: Customer Support on Mar 30, 2026, 7:54 PM
Yes it will. This tee is forged from steel and rated to handle dynamic pressures up to 6,000 psi, making it suitable for hydraulic applications using compatible fluids.
