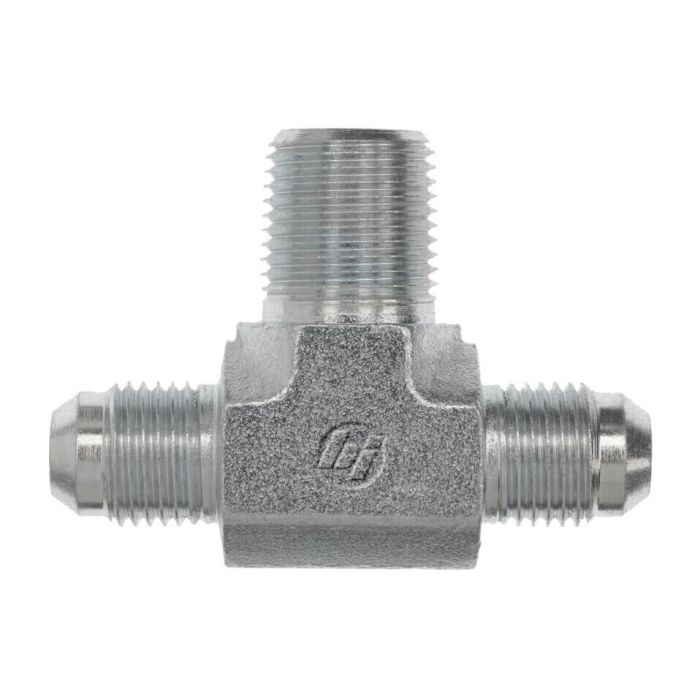

main product photo

10MJ-10MJ-08MP TEE

Ask A Question

Description & Features

This forged steel branch tee, with a maximum dynamic pressure of 5,000 PSI, offers reliable performance in demanding hydraulic applications. The 10MJ-10MJ-08MP TEE features a male NPTF 1/2-14 thread, manufactured to SAE J476 specifications.

This tee also incorporates two male JIC SAE 37-degree flare 7/8-14 threads, each conforming to SAE J514 standards, providing secure and leak-resistant connections.

SKU: 2601-10-10-08-FG

Supplier Part Number (MPN): 2601-10-10-08-FG

Alternate Part Numbers: 2601-10-10-08, A2030-8-10S, C1DW55

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Size 3
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
4.842 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.9 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.47 in
l Dimensions
2.9 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
2601-FG Series
Thread 2 Drill Dimensions
0.484 in
Thread 3 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.484 in
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Darryl M on Jul 7, 2025, 6:02 PM
got two 7/8-14 jic ends already, what’s that branch port on this tee, npt?
Answer by: Customer Support on Jul 9, 2025, 8:38 AM
On the branch you are getting a male NPTF 1/2-14 thread built to SAE J476, while the two run connections are male JIC 37 degree flare 7/8-14 threads per SAE J514.
