12MJ-12MJ-12MP TEE

Ask A Question

Description & Features

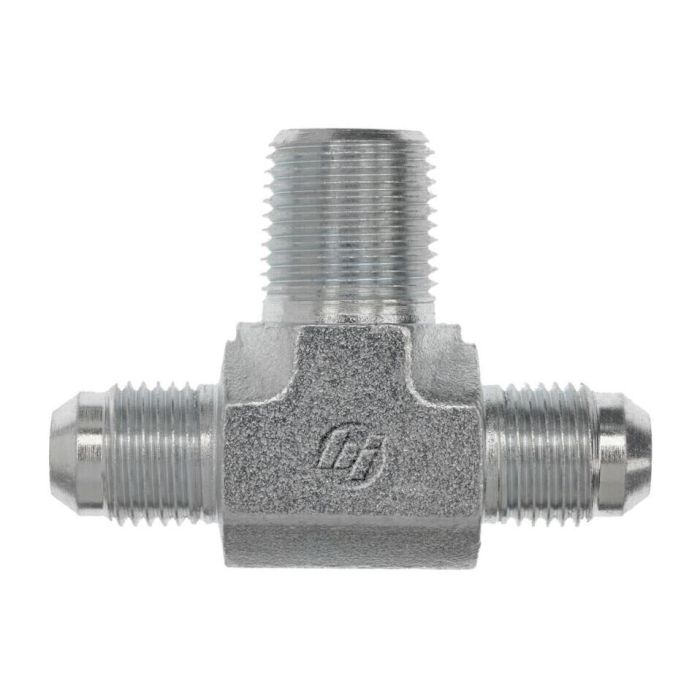

This forged steel branch tee features male JIC SAE 37 degree flare connections and a male NPTF thread.

The 12MJ-12MJ-12MP TEE has a maximum dynamic pressure of 5,000 PSI. The centerline length 1 and 2 measure 1.660 mm. Overall length L measures 3.320 mm, and overall length L2 measures 1.590 mm.

SKU: 2601-12-12-12-FG

Supplier Part Number (MPN): 2601-12-12-12-FG

Alternate Part Numbers: 2601-12-12-12, A2030-12-12S, C1DW58

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Size 3
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE NPTF
Cubic Inch Space L x W x H Dimensions
7.478 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
3.32 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
l2 Dimensions
1.59 in
l Dimensions
3.32 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2601-FG Series
Thread 2 Drill Dimensions
0.609 in
Thread 3 Drill Dimensions
0.719 in
Thread B1 Drill Dimensions
0.609 in
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Larry R on Aug 17, 2025, 3:37 PM
What's the max pressure this tee can handle?
Answer by: Customer Support on Aug 18, 2025, 9:27 PM
This forged steel tee fitting is rated for dynamic pressures up to 5,000 PSI.
Question by: Todd S on Apr 21, 2025, 7:24 PM
rated for 5,000 PSI dynamic pressure, that hold up alright for most hydraulic lines runnin off a standard industrial pump setup?
Answer by: Customer Support on Apr 23, 2025, 5:12 PM
For most standard industrial hydraulic systems, 5,000 PSI dynamic pressure is a solid working ceiling. That covers the majority of mid-to-high pressure pump configurations without any issue. Just make sure the rest of your fittings and hose assemblies are rated to match, because the tee is only as reliable as the weakest point in the line.
Question by: Ralph B on May 15, 2025, 7:21 PM
got two hoses with 1-1/16-12 JIC ends and need to tee off to pipe thread. is this the right one?
Answer by: Customer Support on May 17, 2025, 6:06 AM
For that setup, this branch tee matches two male JIC SAE 37 degree flare connections in 1-1/16-12 (SAE J514) plus a male NPTF port in 3/4-14 (SAE J476). It is a forged steel fitting in the 2601-FG series.
