16MJ-16MJ-16MP TEE

Description & Features

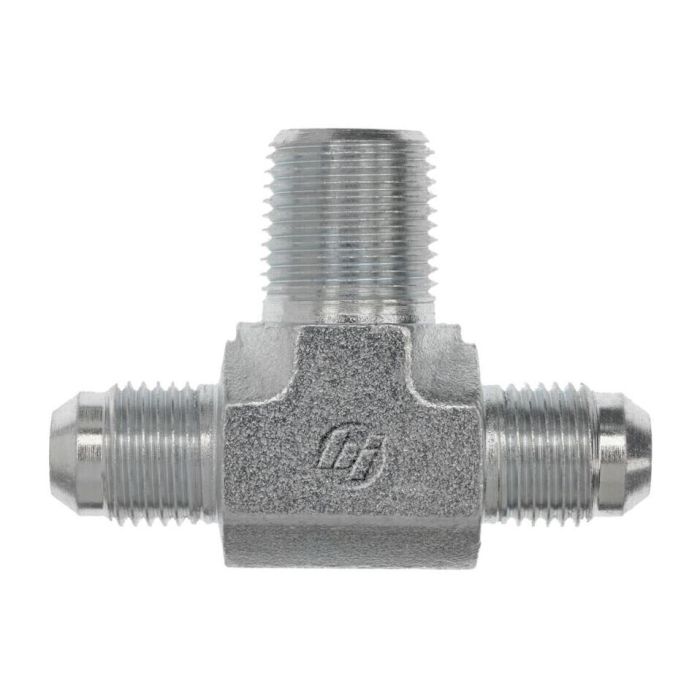

The BRENNAN Industries Inc 2601-16-16-16-FG offers a durable and reliable solution. This branch tee made from forged steel features male JIC SAE 37-degree flare and male NPTF configurations ensuring compatibility with various hydraulic applications.

Designed with precision it maintains an overall length of 3.620 mm and a centerline length of 1.810 mm for both connections. This tee supports a maximum dynamic pressure of 3 000 PSI making it suitable for high-pressure environments.

The product adheres to SAE J514 and SAE J476 specifications guaranteeing industry-standard performance and reliability. Thread sizes include 1-5/16-12 and 1-11-1/2 with corresponding drill measurements of 0.844 mm and 0.938 mm.

Its robust construction and precise threading ensure a secure and leak-free connection in diverse industrial applications.

Supplier Part Number: 2601-16-16-16-FG

MPN: 2601-16-16-16-FG

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male JIC, MNPT	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Connection Type 3 Male SAE NPTF	Cubic Inch Space L x W x H Dimensions 12.472 cu-in	Dimension Standards SAE J476, SAE J514	Dimensions 3.62 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 1.312 in	l2 Dimensions 1.97 in	l Dimensions 3.62 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 3000 psi	Series 2601-FG Series	Thread 2 Drill Dimensions 0.844 in	Thread 3 Drill Dimensions 0.938 in	Thread B1 Drill Dimensions 0.844 in	Thread Size 1-5/16-12 x 1-11-1/2 x 1-5/16-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
2601-04-04-02-FG	1/4 in	1/4 in		1/8-27, 7/16-20	7/16 in
2601-04-04-04-FG	1/4 in	1/4 in		7/16-20, 1/4-18	0.563 in
2601-04-04-06	1/4 in	1/4 in	3/8 in	7/16-20 x 3/8-18	3/4 in
2601-05-05-02 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/8-27	0.563 in
2601-05-05-04 Steel Male NPT To JIC Run Tee	5/16 in	5/16 in		1/2-20 x 1/4-18	0.563 in
2601-06-06-02-FG	3/8 in	3/8 in		9/16-18 x 1/8-27	0.563 in
2601-06-06-04-FG	3/8 in	3/8 in		1/4-18 x 9/16-18	0.563 in
2601-06-06-06-FG	3/8 in	3/8 in	3/8 in	3/8-18, 9/16-18	3/4 in
2601-08-08-04-FG	1/2 in	1/2 in		3/4-16, 1/4-18	3/4 in
2601-08-08-06-FG	1/2 in	1/2 in	3/8 in	3/4-16 x 3/8-18	3/4 in
2601-08-08-08-FG	1/2 in	1/2 in	1/2 in	3/4-16 x 1/2-14	7/8 in
2601-10-10-06	5/8 in	5/8 in	3/8 in	7/8-14 x 3/8-18	7/8 in
2601-10-10-08-FG	5/8 in	5/8 in	1/2 in	1/2-14 x 7/8-14	7/8 in
2601-10-10-12-FG	5/8 in	5/8 in	3/4 in	3/4-14, 7/8-14	1.06 in
2601-12-12-12-FG	3/4 in	3/4 in	3/4 in	1-1/16-12 x 3/4-14	1.06 in
2601-20-20-20-FG	1-1/4 in	1-1/4 in		1-1/4-11-1/2, 1-5/8-12	1-5/8

Product Questions & Answers (1)

Question by: Jerry C on Feb 17, 2026, 10:28 AM

got a hydraulic line running 3,000 PSI on a piece of ag equipment -- will this tee hold up at that pressure or am I pushin it?

Answer by: Customer Support on Feb 19, 2026, 7:56 AM

3,000 PSI is exactly the rated maximum dynamic pressure for this fitting, so you're right at the ceiling. It'll handle that load, but you wouldn't want to run it above that figure on a regular basis. The forged steel construction gives it solid durability for high-pressure work, and the SAE J514 spec on the JIC ends backs up its suitability for that kind of hydraulic service.
