BRENNAN SS FITTINGS

Ask A Question

Description & Features

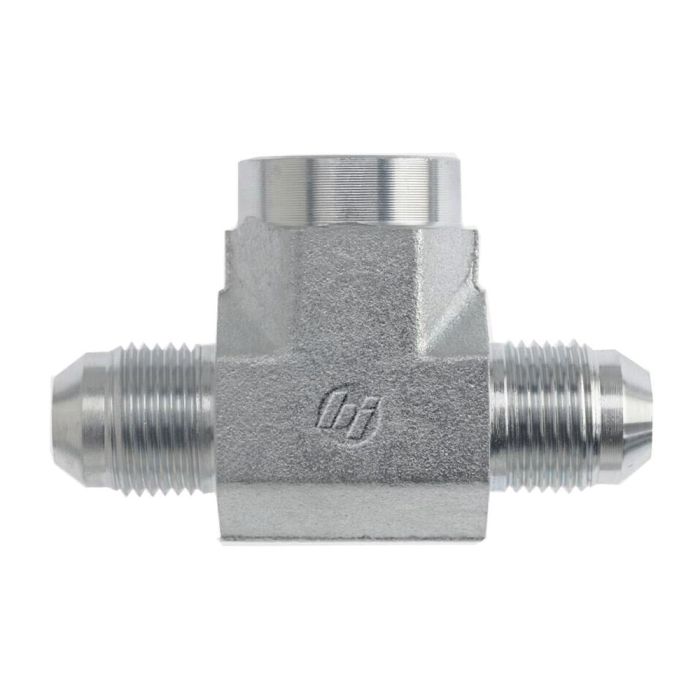

Constructed from forged stainless steel, this branch tee fitting by Brennan Industries is engineered for durability and high performance. It features a maximum dynamic pressure rating of 6,000 PSI, making it suitable for demanding industrial environments. The fitting is designed with two male JIC SAE 37 degree flare connections and one female NPTF connection, ensuring secure and reliable hydraulic connections.

This fitting adheres to SAE J514 and SAE J476 standards, offering compatibility with a wide range of hydraulic systems. With precise threading, 7/16-20 for the JIC connections and 1/4-18 for the NPTF connection, this component is ideal for applications requiring robust and leak-free performance. Its compact dimensions, including a centerline length of 1.220 mm and overall length of 2.440 mm, allow for efficient integration into existing systems.

SKU: 2602-04-04-04-SS

Supplier Part Number (MPN): 2602-04-04-04-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
2.297 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.44 in L
Fitting Type
Tee
Hex Size
3/4 in
l2 Dimensions
0.88 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
2602-FG Series
Thread 2 Drill Dimensions
0.172 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.172 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Question by: Harvey R on Dec 15, 2025, 9:11 AM
So this here is stainless steel, right? I need somethin' that can hold up.
Answer by: Customer Support on Dec 17, 2025, 6:32 AM
That's right, this branch tee fitting is constructed from forged stainless steel for durability in demanding industrial environments.
