main product photo

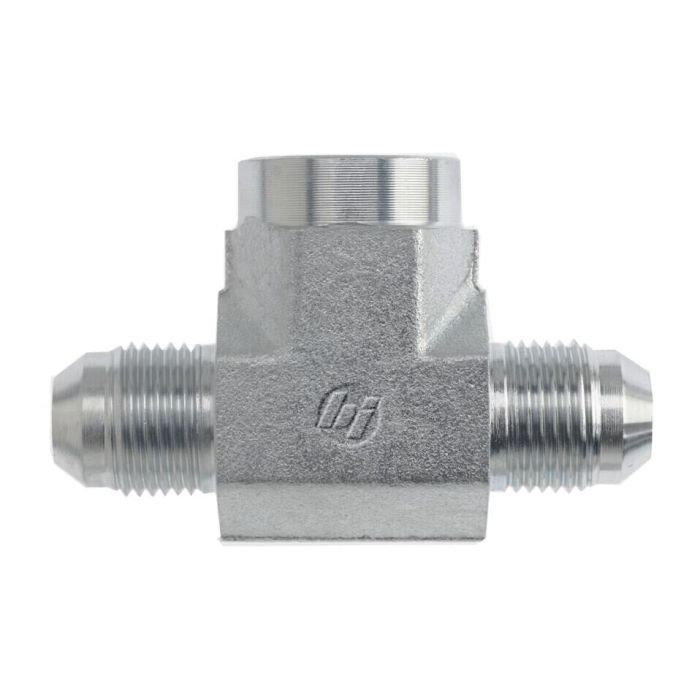

08MJ-08MJ-06FP TEE

Ask A Question

Description & Features

This forged steel branch tee, also known as a 08MJ-08MJ-06FP TEE, features three ports.

The first and second ports are 3/4-16 Male JIC SAE 37 Degree Flare ends with SAE J514 specifications. The third port is a 3/8-18 Female NPTF end with SAE J476 specifications.

This fitting has a maximum dynamic pressure of 6,000 PSI.

SKU: 2602-08-08-06-FG

Supplier Part Number (MPN): 2602-08-08-06-FG

Alternate Part Numbers: 2602-08-08-06, A2031-6-8S

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
3/8 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
3.622 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
2.84 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.02 in
l Dimensions
2.84 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4500 psi
Series
2602-FG Series
Thread 2 Drill Dimensions
0.391 in
Thread 3 Drill Dimensions
0.406 in
Thread B1 Drill Dimensions
0.391 in
Thread Size
3/4-16 x 3/8-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Melvin R on Jan 8, 2026, 6:02 PM
what's the pressure rating on this tee fitting? running a hydraulic line on a skid steer and want to make sure it ain't gonna give out on me
Answer by: Customer Support on Jan 10, 2026, 5:29 PM
Rated at 6,000 PSI maximum dynamic pressure, so it holds up well in demanding mobile hydraulic applications like loader and skid steer circuits. Forged steel construction keeps it solid under pressure cycling too.
Question by: Donna P on Jul 11, 2025, 1:58 PM
trying to tee off a line, what are the thread ends on this one?
Answer by: Customer Support on Jul 12, 2025, 5:31 PM
Port 1 and Port 2 are 3/4-16 male JIC 37 degree flare ends (SAE J514). The branch port is 3/8-18 female NPTF (SAE J476).
Question by: Tony M on Sep 15, 2025, 9:20 PM
Is this tee fitting made out of steel?
Answer by: Customer Support on Sep 17, 2025, 6:39 AM
This fitting is made from forged steel.
