16MJ-16MJ-16FP TEE

Description & Features

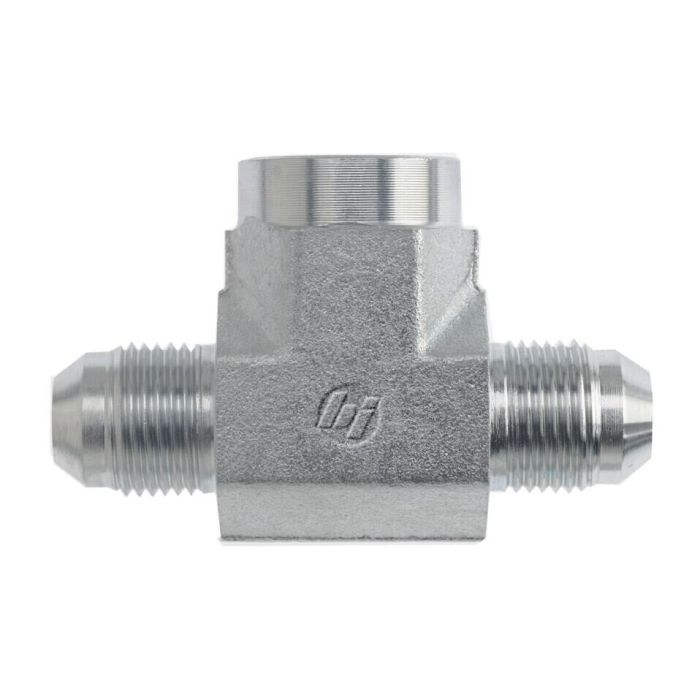

Forged from steel and rated to 3,000 PSI maximum dynamic pressure, the 16MJ-16MJ-16FP Tee is a branch tee fitting designed for demanding hydraulic line configurations. Two run ports feature Male JIC SAE 37-degree flare connections sized at 1-5/16-12 (SAE J514), while the branch port transitions to a 1-11½ Female Nptf thread conforming to SAE J476, making this fitting well suited for mixed-connection assemblies where JIC and pipe thread interfaces meet at a single junction.

Manufactured by Brennan Industries under the 2602-Fg series, the forged steel construction provides the structural integrity expected in high-cycle hydraulic systems. With an overall length of 4.340 mm across the run and a branch length of 1.620 mm, the fitting is compact relative to its port size. California residents should note this product is subject to Proposition 65 requirements.

SKU: 2602-16-16-16-FG

Supplier Part Number (MPN): 2602-16-16-16-FG

Alternate Part Numbers: 2602-16-16-16, A2031-16-16S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2602-16-16-16-FG

Product Questions & Answers (3)

Question by: Travis S on Feb 2, 2026, 6:26 PM

got a line running 1-5/16-12 JIC fittings on both ends of a tee and need the branch to tie into some existing pipe thread, this the right piece for that kind of mixed setup?

Answer by: Customer Support on Feb 4, 2026, 4:04 PM

That's exactly what this fitting handles. Both run ports are Male JIC SAE 37-degree flare at 1-5/16-12, so they'll mate with standard JIC female fittings on your line. The branch port is a 1-11½ Female NPTF, which gives you a pipe thread connection right there at the junction. Forged steel construction and a 3,000 PSI dynamic pressure rating make it a solid choice for working hydraulic systems where JIC and pipe thread meet at the same point.

Question by: Johnny Y on Apr 4, 2026, 7:32 AM

Will this tee handle 3000 PSI in a hydraulic setup without failin?

Answer by: Customer Support on Apr 5, 2026, 9:14 PM

Forged from steel, this tee fitting is rated to a maximum dynamic pressure of 3,000 PSI, so it should work fine.

Question by: Warren M on Dec 30, 2025, 8:42 AM

got two hoses with 16 JIC male ends, will this tee let me tie em together and run the branch out to pipe thread

Answer by: Customer Support on Dec 31, 2025, 10:57 AM

For the run, both straight-through ports are Male JIC SAE 37 degree flare in 1-5/16-12 (SAE J514). The branch is a 1-11-1/2 Female NPTF port (SAE J476), so it is meant for exactly that kind of mixed setup where JIC is on the run and pipe thread is on the branch.
