#3 MJ X #3 MJ X#3 MJ (BRANCH) TEE

Description & Features

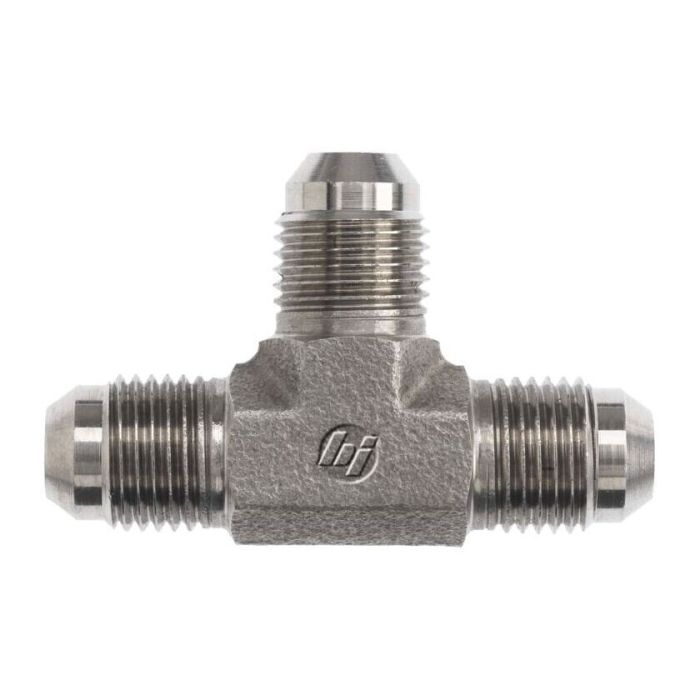

Forged from steel and rated to 7,500 PSI dynamic pressure, the #3 MJ X #3 MJ X #3 MJ (Branch) Tee is a three-way Male JIC fitting designed for hydraulic line branching applications. All three ports carry 3/8-24 Male JIC SAE 37-degree flare threads, conforming to SAE J514, making this a uniform tee suitable for splitting or combining flow across matched-size lines.

The forged steel construction of the Brennan Series 2603-Fg provides solid durability in demanding hydraulic environments. Compact overall dimensions support use in space-constrained assemblies, and consistent thread sizing across all ports simplifies installation. California residents should note this product is subject to Prop 65 warning requirements.

SKU: 2603-03-03-03-FG

Alternate Part Numbers: 2033-03-03-03S, 2603-03-03-03, A2033-3-3S, C1BH56, MI-08578378, MINO-00028X06824

Specifications

Brand BRENNAN	Connection Size 1 3/16 in	Connection Size 2 3/16 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Connection Type 3 Male SAE 37 deg JIC Flare	Cubic Inch Space L x W x H Dimensions 0.763 cu-in	Dimension Standards SAE J514	Dimensions 1.66 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 7/16 in	l2 Dimensions 0.83 in	l Dimensions 1.66 in	Material Steel	Material Construction AISI C1045 Steel	Series 2603-FG Series	Thread 2 Drill Dimensions 1/8 in	Thread 3 Drill Dimensions 1/8 in	Thread B1 Drill Dimensions 1/8 in	Thread Size 3/8-24

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
2603-04-04-04-FG	1/4 in	1/4 in		7/16-20	7/16 in
2603-06-06-04-FG	3/8 in	3/8 in		9/16-18, 7/16-20	0.563 in
2603-06-06-08-FG	3/8 in	3/8 in	1/2 in	3/4-16, 9/16-18	3/4 in
2603-08-08-06-FG	1/2 in	1/2 in	3/8 in	3/4-16, 9/16-18	3/4 in
2603-08-08-08-FG	1/2 in	1/2 in	1/2 in	3/4-16	3/4 in
2603-08-08-10-FG	1/2 in	1/2 in	5/8 in	7/8-14 x 3/4-16	7/8 in
2603-08-08-12-FG	1/2 in	1/2 in	3/4 in	3/4-16 x 1-1/16-12	1.06 in
2603-10-10-10-FG	5/8 in	5/8 in	5/8 in	7/8-14	7/8 in
2603-10-10-12-FG	5/8 in	5/8 in	3/4 in	7/8-14 x 1-1/16-12	1.06 in
2603-12-12-10-FG	3/4 in	3/4 in	5/8 in	7/8-14 x 1-1/16-12	1.06 in
2603-12-12-12-FG	3/4 in	3/4 in	3/4 in	1-1/16-12	1.06 in
2603-14-14-14	7/8 in	7/8 in		1-3/16-12	1.312 in
2603-16-16-16-FG	1 in	1 in		1-5/16-12	1.312 in
2603-24-24-24-FG	1-1/2 in	1-1/2 in		1-7/8-12	1-7/8 in
2603-32-32-32-FG	2 in	2 in		2-1/2-12	2-1/2 in
