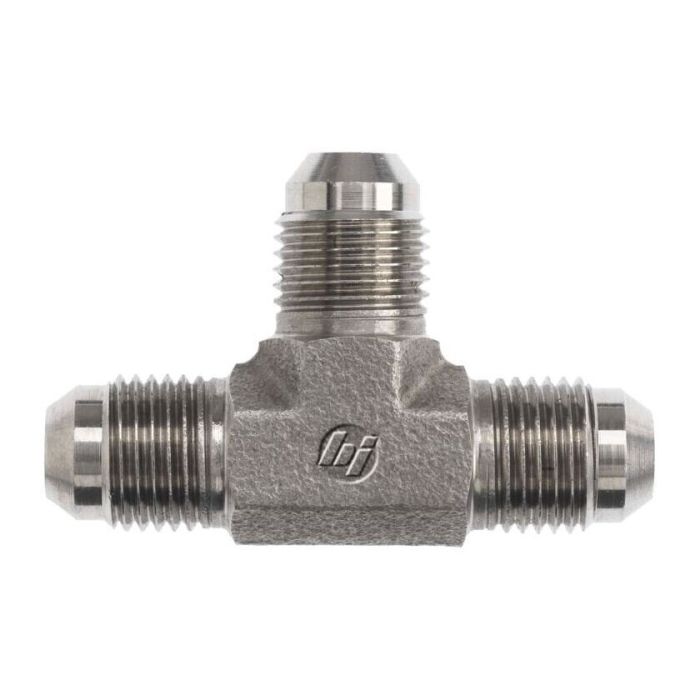

08MJ-08MJ-06MJ TEE

Forged from steel, the 08MJ-08MJ-06MJ Tee is a run-reduced tee fitting designed for hydraulic lines requiring a branch connection at a smaller port size. All three ports feature Male JIC SAE 37-degree flare threads conforming to SAE J514, the two run ports are 3/4-16 and the branch port is 9/16-18, making this fitting compatible with standard JIC hydraulic assemblies across a range of industrial equipment.

Forged steel construction provides the structural integrity suited to high-pressure hydraulic service, with a rated maximum dynamic pressure of 6,000 PSI. The forged body keeps overall dimensions compact, with a 2.500 mm overall length and 1.250 mm centerline lengths on both run ends. California residents should note that this product is subject to Proposition 65 warnings per Brennan Industries' labeling requirements.

SKU: 2603-08-08-06-FG

Supplier Part Number (MPN): 2603-08-08-06-FG

Alternate Part Numbers: 2603-08-08-06, A2033-6-8S
