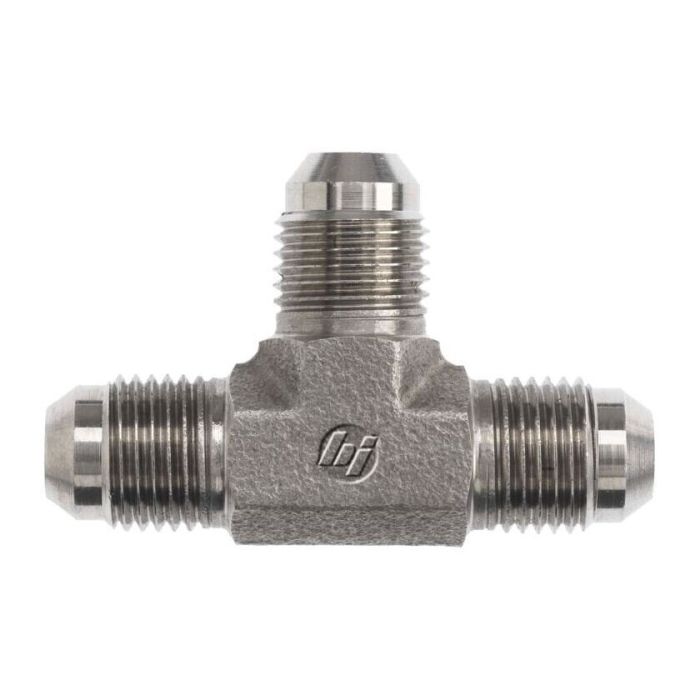

#16 MJIC TEE

Description & Features

The #16 MJIC Tee by Brennan Industries Inc offers exceptional durability and performance in industrial applications. Constructed from forged steel it is engineered to withstand maximum dynamic pressure up to 4 000 PSI. The Male JIC SAE 37-degree flare threads conform to SAE J514 specifications ensuring reliable connections. Each connection point has a thread size of 1-5/16-12 providing precise and secure fittings. Its well-designed dimensions include an overall length of 3.620 mm and centerline lengths of 1.810 mm allowing for streamlined integration into various systems. The cubic inch space dimensions are 11.712 L x W x H for effective spatial management. This tee fittings robust construction and adherence to strict standards make it a dependable choice for high-pressure environments. MPN: 2603-16-16-16-FG Supplier Part Number: 2603-16-16-16-FG

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Connection Type 3
Male SAE 37 deg JIC Flare
Cubic Inch Space L x W x H Dimensions
11.712 cu-in
Dimension Standards
SAE J514
Dimensions
3.62 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.312 in
l2 Dimensions
1.81 in
l Dimensions
3.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2603-FG Series
Thread 2 Drill Dimensions
0.844 in
Thread 3 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
1-5/16-12

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
#3 MJ X #3 MJ X#3 MJ (BRANCH) TEE

2603-03-03-03-FG

3/16 in

3/16 in

3/8-24

7/16 in

04MJ-04MJ-04MJ TEE

2603-04-04-04-FG

1/4 in

1/4 in

7/16-20

7/16 in

06MJ-06MJ-04MJ TEE FORGED 1

2603-06-06-04-FG

3/8 in

3/8 in

9/16-18, 7/16-20

0.563 in

06MJ-06MJ-08MJ TEE

2603-06-06-08-FG

3/8 in

3/8 in

1/2 in

3/4-16, 9/16-18

3/4 in

08MJ-08MJ-06MJ TEE

2603-08-08-06-FG

1/2 in

1/2 in

3/8 in

3/4-16, 9/16-18

3/4 in

08MJ-08MJ-08MJ TEE

2603-08-08-08-FG

1/2 in

1/2 in

1/2 in

3/4-16

3/4 in

#8 MJ X #8 MJ X #10 MJ (BRANCH) TEE

2603-08-08-10-FG

1/2 in

1/2 in

5/8 in

7/8-14 x 3/4-16

7/8 in

ADAPTER

2603-08-08-12-FG

1/2 in

1/2 in

3/4 in

3/4-16 x 1-1/16-12

1.06 in

#10 MJIC TEE

2603-10-10-10-FG

5/8 in

5/8 in

5/8 in

7/8-14

7/8 in

ADAPTER

2603-10-10-12-FG

5/8 in

5/8 in

3/4 in

7/8-14 x 1-1/16-12

1.06 in

ADAPTER

2603-12-12-10-FG

3/4 in

3/4 in

5/8 in

7/8-14 x 1-1/16-12

1.06 in

12MJ-12MJ-12MJ TEE

2603-12-12-12-FG

3/4 in

3/4 in

3/4 in

1-1/16-12

1.06 in

2603-14-14-14

2603-14-14-14

7/8 in

7/8 in

1-3/16-12

1.312 in

24MJ-24MJ-24MJ TEE FORGED

2603-24-24-24-FG

1-1/2 in

1-1/2 in

1-7/8-12

1-7/8 in

32MJ-32MJ-32MJ TEE

2603-32-32-32-FG

2 in

2 in

2-1/2-12

2-1/2 in

Product Questions & Answers (2)

Question by: Brenda T on Feb 28, 2026, 1:06 PM
got a #16 JIC setup already, are all three ends on this tee the same thread size?
Answer by: Customer Support on Mar 1, 2026, 7:28 PM
All three ports are Male JIC SAE 37 degree flare, and each one is 1-5/16-12 thread size per SAE J514.
Question by: Terry E on Jan 28, 2026, 3:21 PM
What kind of pressure can this tee handle?
Answer by: Customer Support on Jan 30, 2026, 8:52 AM
This tee fitting is rated to withstand a maximum dynamic pressure of 4,000 PSI, making it suitable for high-pressure hydraulic systems.
