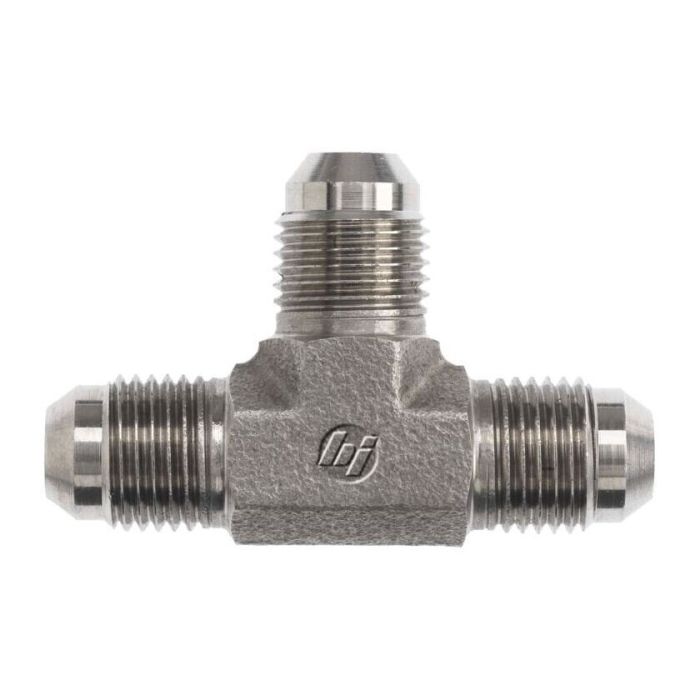

32MJ-32MJ-32MJ TEE

Description & Features

Forged from steel, this equal-run tee carries all three ports at a 2-1/2-12 Male JIC SAE 37-degree flare thread, conforming to SAE J514 on every connection. The 32MJ-32MJ-32MJ Tee is built to a maximum dynamic pressure rating of 2,000 PSI, making it well suited for medium-pressure hydraulic circuits requiring a reliable three-way branch point.

Forged steel construction provides the structural integrity expected in demanding hydraulic environments. With an overall length of 6.120 mm across the run and a centerline length of 3.060 mm on each branch, the fitting is compact enough for installations where space is a consideration. Manufactured by Brennan Industries under their 2603-FG series, this fitting carries a California Prop 65 warning for applicable buyers.

SKU: 2603-32-32-32-FG

Supplier Part Number (MPN): 2603-32-32-32-FG

Alternate Part Numbers: 2603-32-32-32, A2033-32-32S

Specifications

Brand BRENNAN	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Connection Type 3 Male SAE 37 deg JIC Flare	Cubic Inch Space L x W x H Dimensions 65.943 cu-in	Dimension Standards SAE J514	Dimensions 6.12 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 2-1/2 in	l2 Dimensions 3.06 in	l Dimensions 6.12 in	Material Steel	Material Construction AISI C1045 Steel	Series 2603-FG Series	Thread 2 Drill Dimensions 1.781 in	Thread 3 Drill Dimensions 1.781 in	Thread B1 Drill Dimensions 1.781 in	Thread Size 2-1/2-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
2603-03-03-03-FG	3/16 in	3/16 in		3/8-24	7/16 in
2603-04-04-04-FG	1/4 in	1/4 in		7/16-20	7/16 in
2603-06-06-04-FG	3/8 in	3/8 in		9/16-18, 7/16-20	0.563 in
2603-06-06-08-FG	3/8 in	3/8 in	1/2 in	3/4-16, 9/16-18	3/4 in
2603-08-08-06-FG	1/2 in	1/2 in	3/8 in	3/4-16, 9/16-18	3/4 in
2603-08-08-08-FG	1/2 in	1/2 in	1/2 in	3/4-16	3/4 in
2603-08-08-10-FG	1/2 in	1/2 in	5/8 in	7/8-14 x 3/4-16	7/8 in
2603-08-08-12-FG	1/2 in	1/2 in	3/4 in	3/4-16 x 1-1/16-12	1.06 in
2603-10-10-10-FG	5/8 in	5/8 in	5/8 in	7/8-14	7/8 in
2603-10-10-12-FG	5/8 in	5/8 in	3/4 in	7/8-14 x 1-1/16-12	1.06 in
2603-12-12-10-FG	3/4 in	3/4 in	5/8 in	7/8-14 x 1-1/16-12	1.06 in
2603-12-12-12-FG	3/4 in	3/4 in	3/4 in	1-1/16-12	1.06 in
2603-14-14-14	7/8 in	7/8 in		1-3/16-12	1.312 in
2603-16-16-16-FG	1 in	1 in		1-5/16-12	1.312 in
2603-24-24-24-FG	1-1/2 in	1-1/2 in		1-7/8-12	1-7/8 in

Product Questions & Answers (1)

Question by: Floyd H on Oct 30, 2025, 10:04 AM

Reckon this'll hold up alright in a hydraulic system pushing around 2000 PSI?

Answer by: Customer Support on Nov 1, 2025, 9:16 AM

Forged steel gives this tee the structural strength needed to handle dynamic pressures up to 2,000 PSI, so it should be right at home in that kind of setup.
