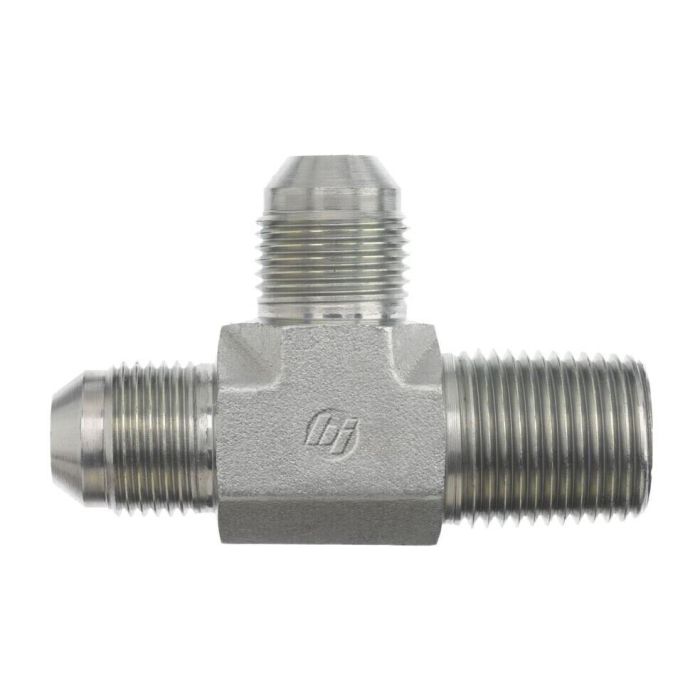

main product photo

12MJ-12MP-12MJ TEE

Ask A Question

Description & Features

This forged steel run tee, designated as 12MJ-12MP-12MJ TEE, features three ports for connecting tubes or hoses in hydraulic systems. Two ports are 1-1/16-12 male JIC 37-degree flare ends conforming to SAE J514 standards. The third port is a 3/4-14 male NPTF thread conforming to SAE J476.

With centerline lengths of 1.660 mm and 1.590 mm, this tee offers a compact and robust connection point. It is part of the 2605-FG series from Brennan Industries.

SKU: 2605-12-12-12-FG

Supplier Part Number (MPN): 2605-12-12-12-FG

Alternate Part Numbers: 2605-12-12-12, A2028-12-12S

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Size 3
3/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Connection Type 3
Male SAE 37 deg JIC
Dimension Standards
SAE J514, SAE J476
Dimensions
3-1/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
l2 Dimensions
1.66 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
2605-FG Series
Thread 2 Drill Dimensions
0.719 in
Thread 3 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
0.609 in
Thread B2 Drill Dimensions
0.719 in
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Kent W on Apr 6, 2026, 1:28 PM
Got a hydraulic line running off a 3/4 NPTF port on a pump and need to split it out to two JIC fittings, this tee gonna work for that?
Answer by: Customer Support on Apr 7, 2026, 2:53 PM
That setup matches exactly what this fitting is built for. The branch port is 3/4-14 male NPTF, so it'll thread right into a female NPTF receiving port on your pump. The two run ports are both 1-1/16-12 male JIC 37-degree flare, which connect into female JIC swivel nuts on your hose ends. All three threads are forged steel, so you're getting solid construction at the junction point. Just make sure your hose assemblies have the matching female JIC ends and your pump port is female NPTF and you're good to go.
Question by: Eddie T on Sep 7, 2025, 8:13 PM
What kind of stuff is this tee fitting made of?
Answer by: Customer Support on Sep 9, 2025, 3:03 PM
This run tee is forged from steel, giving it strength for hydraulic applications.
