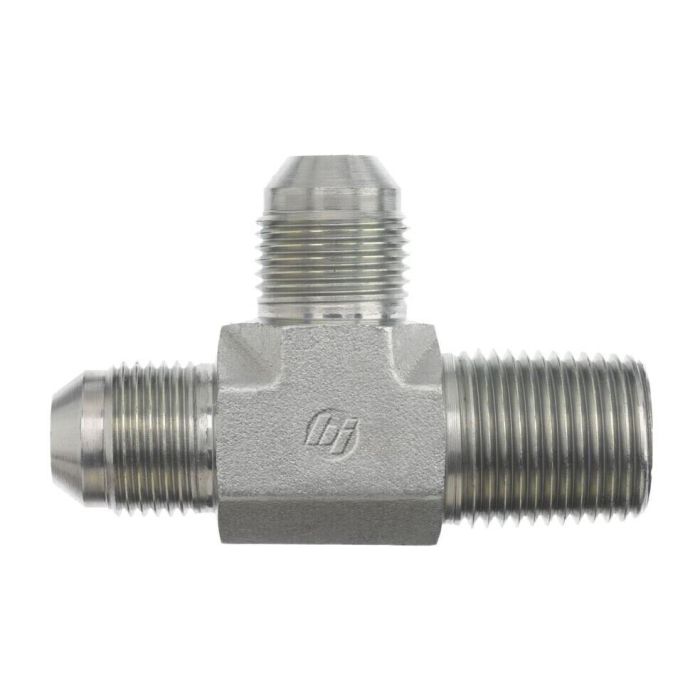

main product photo

16MJ-16MP-16MJ TEE

Ask A Question

Description & Features

Crafted from robust forged steel, the 16MJ-16MP-16MJ TEE offers reliable performance in demanding hydraulic systems. This tee fitting features a combination of Male JIC SAE 37 Degree Flare and Male NPTF threads, ensuring secure and leak-free connections. With thread sizes of 1-5/16-12 for the flare ends and 1-11-1/2 for the NPTF end, this component is designed to meet SAE J514 and SAE J476 standards, providing compatibility with a wide range of hydraulic applications.

The precise dimensions, including a 1.810 mm centerline length for both flare ends and a 3.780 mm overall length, make it suitable for compact installations where space is a constraint. This tee fitting is ideal for use in hydraulic systems requiring robust and flexible connectivity solutions.

SKU: 2605-16-16-16-FG

Supplier Part Number (MPN): 2605-16-16-16-FG

Alternate Part Numbers: 2605-16-16-16, A2028-16-16S

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Connection Type 3
Male SAE 37 deg JIC
Dimension Standards
SAE J514, SAE J476
Dimensions
3.78 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.312 in
l2 Dimensions
1.81 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
2605-FG Series
Thread 2 Drill Dimensions
0.938 in
Thread 3 Drill Dimensions
0.844 in
Thread B1 Drill Dimensions
0.844 in
Thread B2 Drill Dimensions
0.938 in
Thread Size
1-5/16-12 x 1-11-1/2 x 1-5/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lance M on Feb 14, 2026, 9:27 AM
Reckon this tee fitting would hold up alright in a hydraulic setup for some heavy equipment?
Answer by: Customer Support on Feb 15, 2026, 3:29 PM
Forged steel construction is well-suited to demanding hydraulic systems. It's built to handle the pressures and stresses you'd expect in heavy equipment applications.
