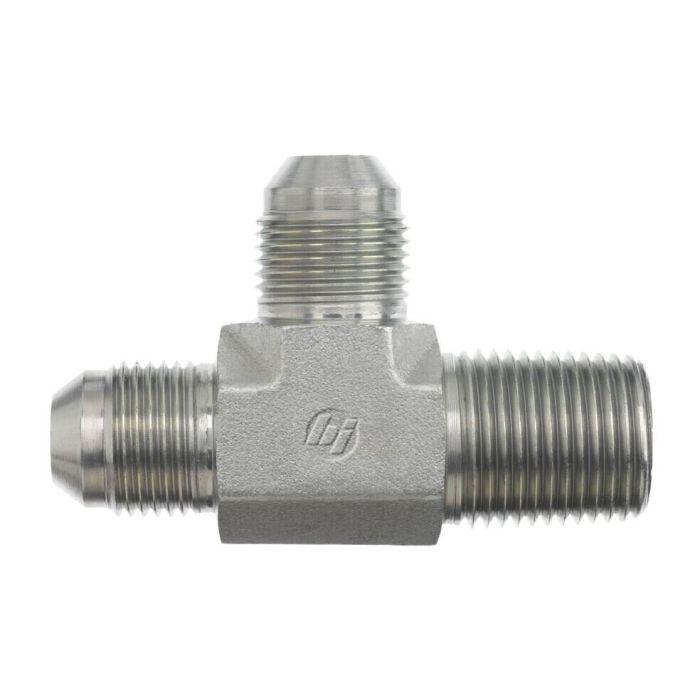

32MJ-32MP-32MJ TEE

Ask A Question

Description & Features

This forged steel run tee features male JIC SAE 37 degree flare threads on two ports and male NPTF threads on the third.

The 32MJ-32MP-32MJ TEE conforms to SAE J514 and SAE J476 standards for threads, ensuring reliable performance in demanding hydraulic applications.

SKU: 2605-32-32-32-FG

Supplier Part Number (MPN): 2605-32-32-32-FG

Alternate Part Numbers: A2028-32-32S

Specifications

Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF
Connection Type 3
Male SAE 37 deg JIC
Dimension Standards
SAE J514, SAE J476
Dimensions
6.06 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
2-1/2 in
l2 Dimensions
3.06 in
Material
Steel
Material Construction
AISI C1045 Steel
Series
2605-FG Series
Thread 2 Drill Dimensions
1.938 in
Thread 3 Drill Dimensions
1.781 in
Thread B1 Drill Dimensions
1.781 in
Thread B2 Drill Dimensions
1.938 in
Thread Size
2-1/2-12 x 2-11-1/2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ross E on Nov 13, 2025, 8:40 AM
I'm swapping out some fittings on an older hydraulic setup. Will this tee work if the system uses JIC and NPTF connections?
Answer by: Customer Support on Nov 14, 2025, 7:15 PM
Yes, this run tee has two ports with male JIC SAE 37 degree flare threads and one port with male NPTF threads, so it'll connect those two types of connections.
