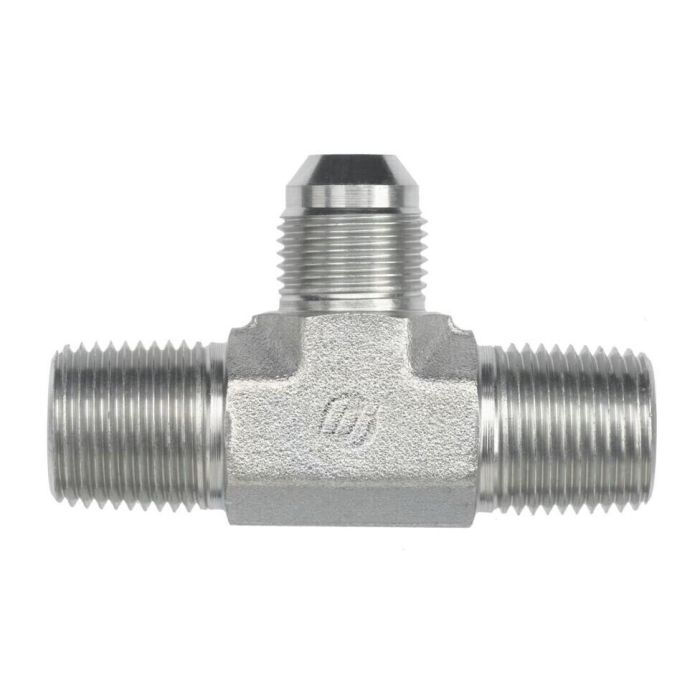

main product photo

BRENNAN ADAPTER

Ask A Question

Description & Features

This Brennan adapter is a forged steel branch tee designed for hydraulic applications. It features a 1/2-14 Male NPTF thread on two ports, conforming to SAE J476 specifications. The third port features a 3/4-16 Male JIC SAE 37 Degree Flare thread, manufactured to SAE J514 standards.

With centerline lengths of 1.47mm and an overall length of 2.94mm, this branch tee offers a robust solution for connecting hydraulic lines. The overall length L2 is 1.33mm.

SKU: 2610-08-08-08-FG

Supplier Part Number (MPN): 2610-08-08-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Connection Type 3
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J476, SAE J514
Dimensions
2.94 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.33 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
6000 psi
Series
2610-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread 3 Drill Dimensions
0.391 in
Thread B1 Drill Dimensions
0.531 in
Thread B2 Drill Dimensions
0.531 in
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Ricky P on Oct 18, 2025, 1:46 PM
I want to make sure I get the right size. What's the measurement on the long side of this tee?
Answer by: Customer Support on Oct 19, 2025, 5:13 PM
This Brennan adapter has an overall length (L) of 2.94mm.
