BRENNAN 2611-04-04-04

Ask A Question

Description & Features

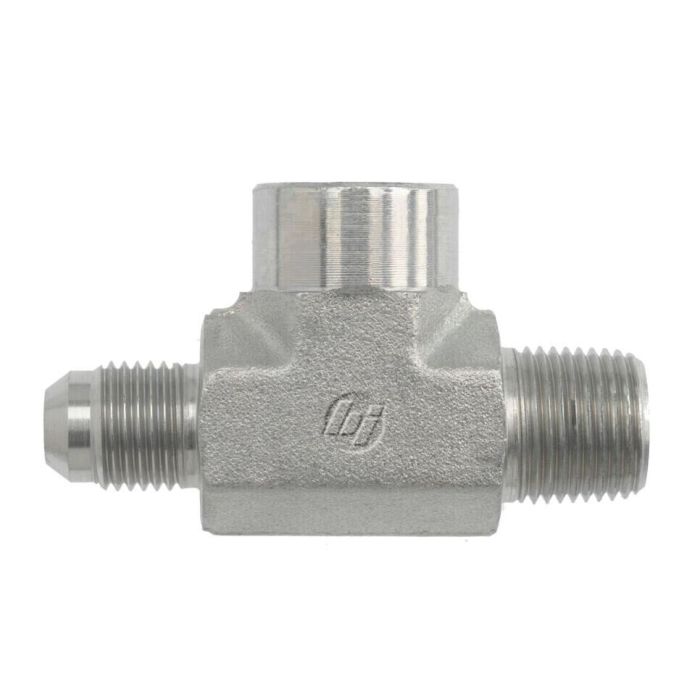

The Brennan 2611-04-04-04 forged steel tee features three ports: a 7/16-20 Male JIC SAE 37 Degree Flare, a 1/4-18 Male NPTF, and a 1/4-18 Female NPTF connection.

This tee fitting conforms to SAE J514 and SAE J476 standards, ensuring reliable performance in demanding hydraulic applications. Centerline lengths measure 1.220 mm and 1.090 mm, with an overall length of 2.310 mm.

SKU: 2611-04-04-04-FG

Supplier Part Number (MPN): 2611-04-04-04-FG

Alternate Part Numbers: BR-2611-04-04-04

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE 30 deg NPTF
Connection Type 3
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.31 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
l2 Dimensions
0.88 in
Material
Steel
Material Construction
AISI 1045 Steel
Maximum Operating Pressure
5000 psi
Series
2611-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.281 in
Thread Size
7/16-20, 1/4-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rod S on Oct 15, 2025, 2:33 PM
Will this tee work for connecting a pressure gauge with a 7/16-20 fitting to a 1/4" NPT line?
Answer by: Customer Support on Oct 17, 2025, 7:45 AM
This forged steel tee features a 7/16-20 Male JIC SAE 37 Degree Flare port, making it suitable for connecting to a pressure gauge with that fitting type. It also includes both 1/4-18 Male NPTF and 1/4-18 Female NPTF connections for adapting to your 1/4" NPT line.
